CONNECTING POWER

CONNECTING POWER

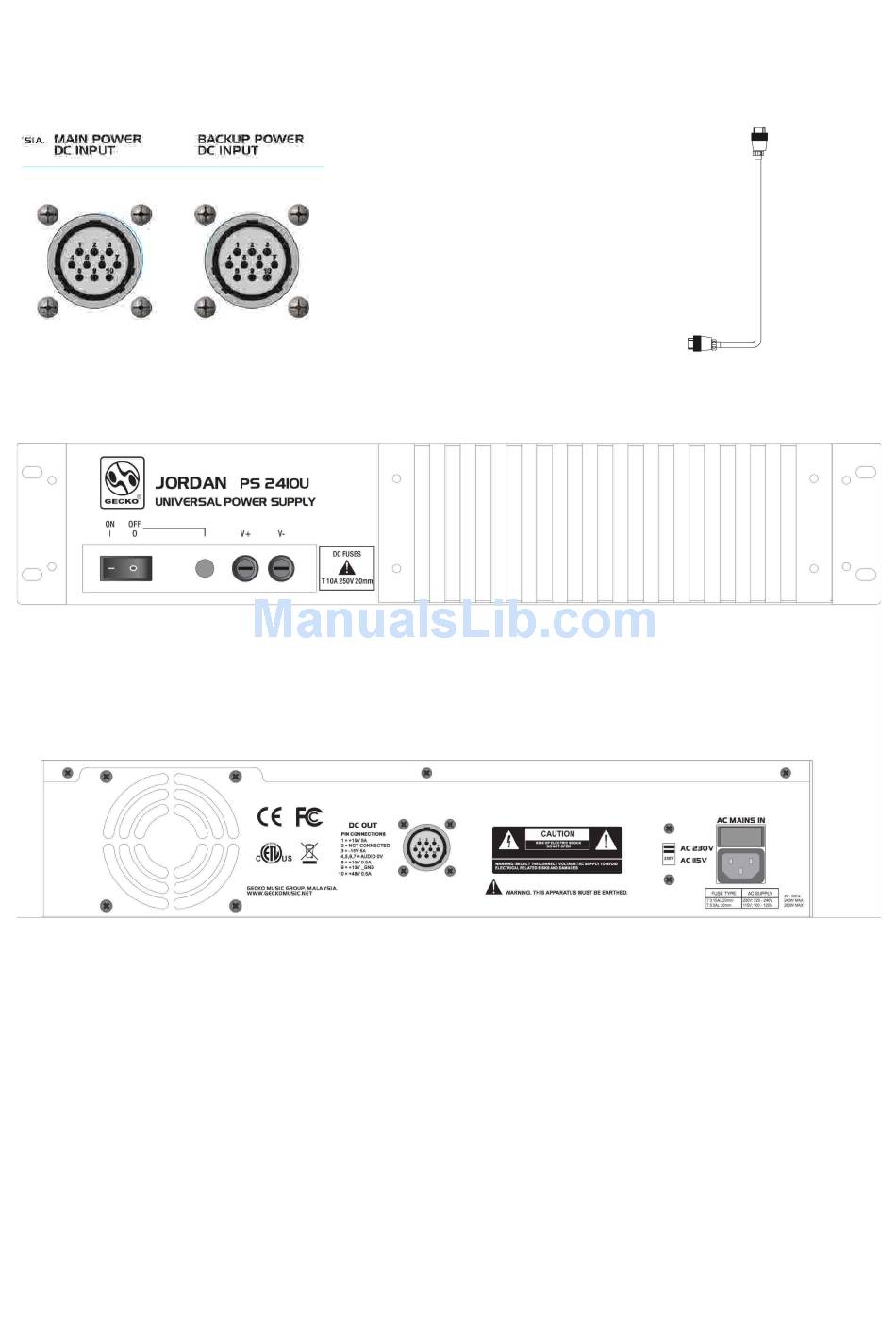

EXODUS ODYSSEY MXR 5204L 10-PIN DC INPUTS
JORDAN PS 2410U UNIVERSAL POWER SUPPLY
Read and understand the Safety Instructions printed at the start of this manual, and the warnings printed
on the rear of the console. Check that your local mains supply voltage is the same as that selected on the
rear of the JORDAN PS 2410U universal power supply unit. Connect the supplied 10-pin DC power cable to
the MAIN POWER DC INPUT on the console and to DC OUT at the rear of the JORDAN PS 2410U. Check
that the correct mains lead with moulded plug has been supplied. Make sure the IEC mains plug is pressed
fully into the panel socket of the JORDAN PS 2410U before switching on.
GROUNDING
The connection to ground in an audio system is important for two reasons:
1. SAFETY – To protect the operator from high voltage electric shock, and
2. AUDIO PERFORMANCE – To minimize the effect of ground (earth) loops which results in audible
hum and buzz, and to shield the audio signals from interference.
