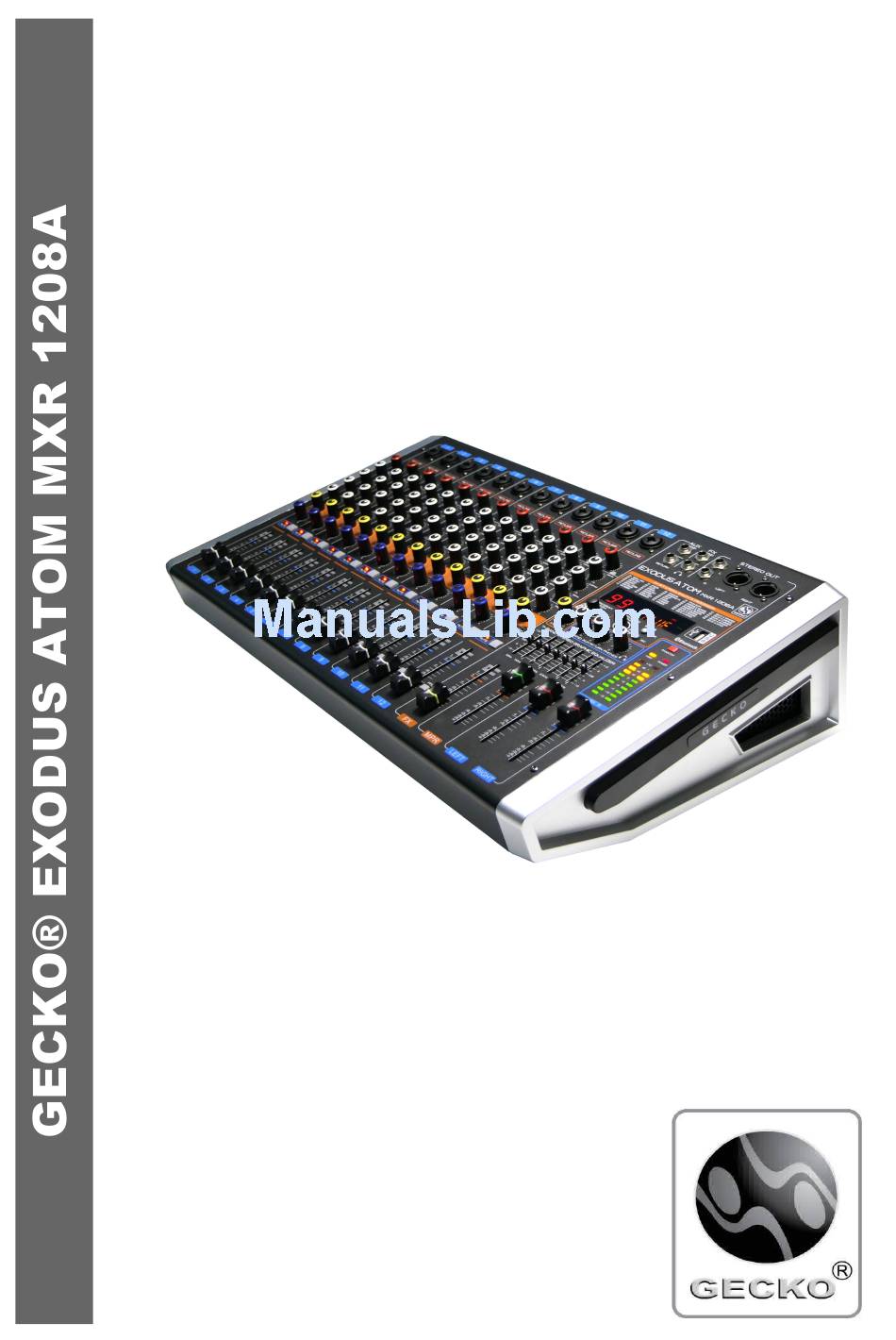

  • Page 1 OWNER'S MANUAL OWNER'S MANUAL www.geckomusic.net www.geckomusic.net...
  • Page 2 GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE For your own safety and to avoid invalidation of the warranty, all text marked with these symbols should be read carefully. SYMBOLS: SYMBOLS: NOTES NOTES Contain important information and useful tips on the operation of your equipment.
  • Page 3 Duration/Day (Hours) dB, Sound Pressure Level (SPL) Descriptions Below 90dB Safe zone 8.00 Hearing damage 6.00 4.00 3.00 2.00 Serious hearing damage 1.50 1.00 0.50 0.25 or less Human pain threshold GECKO MUSIC GROUP , Singapore. GECKO MUSIC GROUP Email: info-sg@geckomusic.net • Website: www.geckomusic.net...
  • Page 4 C.R.I.S.T.A.L.® Audiophile technology that is changing the way how sound is being encoded, reproduced and managed! On behalf of GECKO MUSIC GROUP, I would like to pledge our continuing commitment to uphold our traditions in serving music and audio communities around the world with more value-added highest possible quality GECKO®...

  • Page 5: Table Of Contents

    (Main L-R Mix Meters, Phantom, +48V LED, Power LED) MASTER FADERS SECTION (Main Left & Right Master Faders, FX Master Fader, MPR Master Fader) REAR PANEL (Power Switch, Voltage Selector, Speaker Outputs, Power Connection, Fan) CONNECTIONS SPECIFICATIONS WARRANTY ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.

  • Page 6: Introduction

    The GECKO® EXODUS ATOM MXR 1208A has been designed to deliver you with the highest audio fidelity. With its superb sounding C.R.I.S.T.A.L.® Audiophile PreAmps and the newly enhanced 24-Bit/96kHz UTOPIA DSP multi-effects processor with 99 high-quality presets, 7-Band Stereo Graphic Equalizer, onboard Media Player/Recorder with C.R.I.S.T.A.L.®...

  • Page 7: Mixing Console Layout

    The GECKO® EXODUS ATOM MXR 1208A has comprehensive input and output sections which can be split further into various stages of processing and routing. The EXODUS ATOM MXR 1208A is equipped with C.R.I.S.T.A.L.® Audiophile PreAmps architecture for the most pristine quality audio capturing and reproduction.

  • Page 8: Channel Input Section

    L-R MIX level meter (30.). The EXODUS ATOM MXR 1208A employs the revolutionary GECKO® C.R.I.S.T.A.L.® Audiophile PreAmps technology for pristine sound reproduction.

  • Page 9: Mic/Line Eq Section

    This AUX control has 10dB gain when turned fully clockwise. Please note the PRE indicates the AUX bus draws audio signals enhanced by the GECKO® C.R.I.S.T.A.L.® Audiophile PreAmps, and not to be confused with “pre-fader”. 5. FX This controls the level of signal that is sent to the effects bus and FX output from the channel.

  • Page 10: Channel Faders

    AUX output post-fader (i.e. the signal routed to FX SEND is affected by the channel fader level). No wet signal is sent to this output. ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.

  • Page 11: Dsp Effects Engine

    DSP EFFECTS ENGINE DSP EFFECTS ENGINE The GECKO® EXODUS ATOM MXR 1208A has a newly-enhanced internal 24-Bit/96kHz UTOPIA DSP processor with 99 presets. These high quality audio effects programs are tabulated below. 24-BIT UTOPIA MULTI-FX PROCESSOR 00 SMALL HALL...

  • Page 12: Master Routing Section

    You will hear a "ding” when your device is successfully paired (red Bluetooth symbol stops flashing and a disc symbol appears) to the GECKO® EXODUS ATOM MXR 1208A. The “ding” is audible only if the MPR fader (36.) level is turned up. Your device's playlist is PAUSED on every new successful pairing made.
  • Page 13 (iii). You are now ready to stream music to the GECKO® EXODUS ATOM MXR 1208A from the paired device. If your device is aptX™ compatible and contains high resolution audio fIles, then these will be streamed in the original high quality bit rate through the GECKO® EXODUS ATOM MXR 1208A 12-channel active C.R.I.S.T.A.L.®...

  • Page 14: Graphic Equalizer

    EQ. The graphic equalizer offers refined audio spectrum shaping and feedback control for live sound situations. In normal application, we recommend setting the sliders to 0dB, center position (EQ bypassed). ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.

  • Page 15: Main L-R Mix Meters

    MUTE (8.) when switching PHANTOM power switch (31.) on or off, and when plugging or unplugging microphones. 33. POWER LED The red POWER LED when lit, indicates that main power is on - POWER switch (37.) is engaged. ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.

  • Page 16: Master Faders Section

    Use this switch to power the mixing console ON [I] or OFF [O]. 38. VOLTAGE SELECTOR The MXR 1208A is designed for global use. It comes with a voltage selector switch. AC selection: 115V: 90 - 120V, 50/60Hz 230V: 210 - 250V, 50/60Hz ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.
  • Page 17 WARNING: Always ensure you have the appropriate voltage rating selected on your EXODUS ATOM MXR 1208A before plugging in to an AC outlet. Connection to an inappropriate power source may result in fire or electric shock, and extensive damage which is not covered by the warranty.

  • Page 18: (Power Switch, Voltage Selector, Speaker Outputs, Power Connection, Fan) Connections

    CONNECTIONS CONNECTIONS ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.
  • Page 19 ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.

  • Page 20: Specifications

    Recording: USB (MP3) Bluetooth: C.R.I.S.T.A.L.® Audiophile Enhanced (up to 10m line of sight effective distance) Faders: 60mm Dust-Protected: Channel 1-12; Main - Left & Right; FX; MPR Speakers Output Impedance: Min. 4Ω per Channel ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.
  • Page 21 Color: Metallic Grey / Black / Silver Net Weight: 11.50Kg Dimension: (H) 165mm x (W) 560mm x (D) 370mm Specifications subject to change without prior notice. Manufactured under ISO9000 certified management system. ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.

  • Page 22: Warranty

    ® TERMS OF WARRANTY WARRANTY: GECKO MUSIC GROUP warrants its GECKO® products for a period of three (3) years from the original date of purchase, in accordance to the warranty regulations described below. WHAT IS COVERED: During the applicable warranty period, GECKO MUSIC GROUP warrants the product against defects in materials and workmanship and against malfunctions.
  • Page 23 Products which do not meet the terms of this warranty will be repaired exclusively at the buyer’s expense. GECKO MUSIC GROUP will inform the buyer of such circumstance. If the buyer fails to submit a written repair order within six (6) weeks after notification, GECKO MUSIC GROUP will return the unit C.O.D. with a separate invoice for freight and packing.
