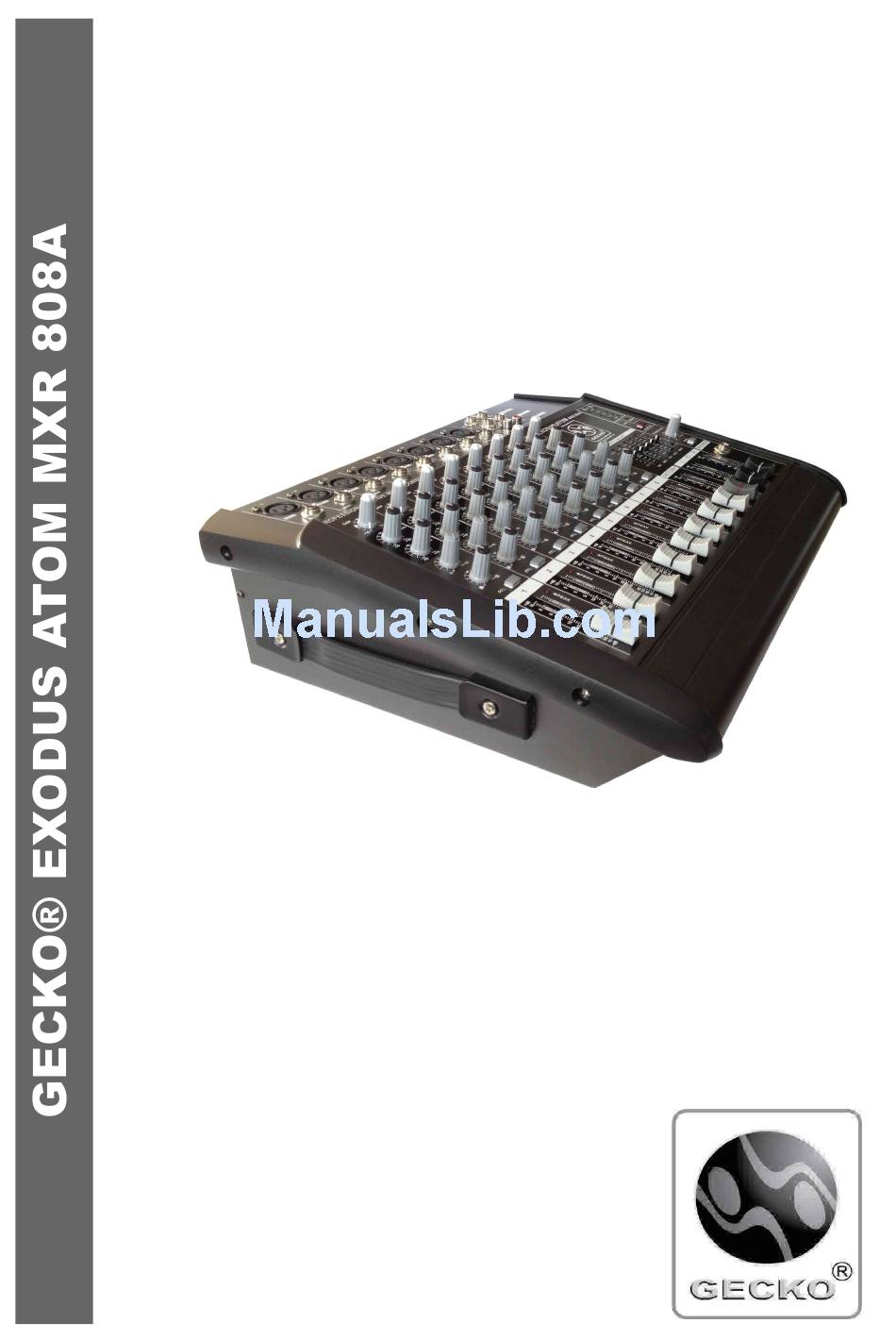

- Page 1 OWNER'S MANUAL OWNER'S MANUAL www.geckomusic.net www.geckomusic.net...
-
Page 2: Safety Instructions
GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE GECKO® SAFETY INSTRUCTIONS & SYMBOLS GUIDE For your own safety and to avoid invalidation of the warranty, all text marked with these symbols should be read carefully. SYMBOLS: SYMBOLS: NOTES NOTES Contain important information and useful tips on the operation of your equipment. - Page 3 1.50 1.00 0.50 0.25 or less Human pain threshold GECKO MUSIC GROUP GECKO MUSIC GROUP No. 59, 59-1, 61, 61-1, 63, 63-1, Jalan PE 3, Taman Paya Emas, Paya Rumput, 76450 Melaka, Malaysia. Mobile: +6012.204 2175 Email: info@geckomusic.net • Website: www.geckomusic.net...
- Page 4 C.R.I.S.T.A.L.® Audiophile technology that is changing the way how sound is being encoded, reproduced and managed! On behalf of GECKO MUSIC GROUP, I would like to pledge our continuing commitment to uphold our traditions in serving music and audio communities around the world with more value-added highest possible quality GECKO®...
-
Page 5: Table Of Contents
MAKING CONNECTIONS SPECIFICATIONS WARRANTY NOTES: Congratulations on purchasing the GECKO® EXODUS ATOM MXR 808A active C.R.I.S.T.A.L.® Audiophile mixing console! We recommend that you take a moment and read through the manual as it provides information that will assist you in using your unit to its fullest potential. -
Page 6: Introduction
Any time and any place you need big sound with great clarity and convenience, the EXODUS ATOM MXR 808A system by GECKO® is for you. The EXODUS ATOM MXR 808A is the latest step in the ongoing evolution of our EXODUS series audiophile mixing consoles into the very finest in portable P.A. solutions;... -
Page 7: Control Elements
2. GAIN CONTROL This control adjusts the sensitivity of both MIC (XLR) and LINE (¼” TRS) inputs. The -34 to +10 scale indicates the LINE input adjustment level. The EXODUS GAIN structure employs the revolutionary GECKO® C.R.I.S.T.A.L.® Audiophile PreAmps technology. ______________________________________________________________________________________... - Page 8 Adjusts the output level of the channel's input signal. Use these faders to adjust the volume balance among the various channels. NOTES: To reduce noise, set the fader sliders for unused channels all the way down. Always ensure that you work with clean sources. ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.
- Page 9 This 5-band equalizer adjusts the sound of the signal send to the ST OUT connectors. The equalizer cuts or boosts each band (70Hz, 200Hz, 1kHz, 5kHz, and 12kHz) over a range of ±12dB. 17. PHONES CONNECTOR Connector for headphones. This is a balanced stereo phone-type (¼” TRS) output connector. ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.
- Page 10 & R faders. Output is in STEREO (L and R). Application examples: you can use these connectors to connect to an additional power amplifier driving your main speakers or to a pair of powered speakers, and or to connect to an external recording device. ______________________________________________________________________________________ © GECKO MUSIC GROUP. All Rights Reserved.
- Page 11 22. FUSED IEC - AC POWER CORD RECEPTACLE Plug the AC power cord (supplied) into the GECKO® EXODUS ATOM MXR 808A Active Audiophile Mixing Console. Plug the other end into a standard wall power outlet. The fused IEC - AC receptacle protects the mixing console from possible electrical hazards caused by power overload.
-
Page 12: Making Connections
MXR 808A. MAKING CONNECTIONS MAKING CONNECTIONS The GECKO® EXODUS ATOM MXR 808A can be used for many professional applications in live, studio, as well as home settings. For all connections, refer to the following steps: 1. Before connecting to microphones and instruments, be sure that all devices are turned OFF. Also be sure that all of the mixing console's channel faders and master control faders are set all the way down. -
Page 13: Specifications
RCA (L, R), -10dBV; SPEAKON® OUT (2) Systems: GECKO® C.R.I.S.T.A.L.® Audiophile PreAmps, GECKO® Custom Ultra Low-Noise Faders (60mm), 5-Band Stereo Graphic EQ, Precision Channel EQ, +48VDC Phantom, 5-Segment LED Meters (ST OUT, PFL), PFL, PEAK & POWER Indicators, AUX Bus, MAIN STEREO Bus, AUX Bus, PHONES Bus Amplifier Rated Output: 4Ω: 200W per Channel, 2-Tier C.R.I.S.T.A.L.®... -
Page 14: Warranty
® TERMS OF WARRANTY WARRANTY: GECKO MUSIC GROUP warrants its GECKO® products for a period of three (3) years from the original date of purchase, in accordance to the warranty regulations described below. WHAT IS COVERED: During the applicable warranty period, GECKO MUSIC GROUP warrants the product against defects in materials and workmanship and against malfunctions. - Page 15 Products which do not meet the terms of this warranty will be repaired exclusively at the buyer’s expense. GECKO MUSIC GROUP will inform the buyer of such circumstance. If the buyer fails to submit a written repair order within six (6) weeks after notification, GECKO MUSIC GROUP will return the unit C.O.D. with a separate invoice for freight and packing.
