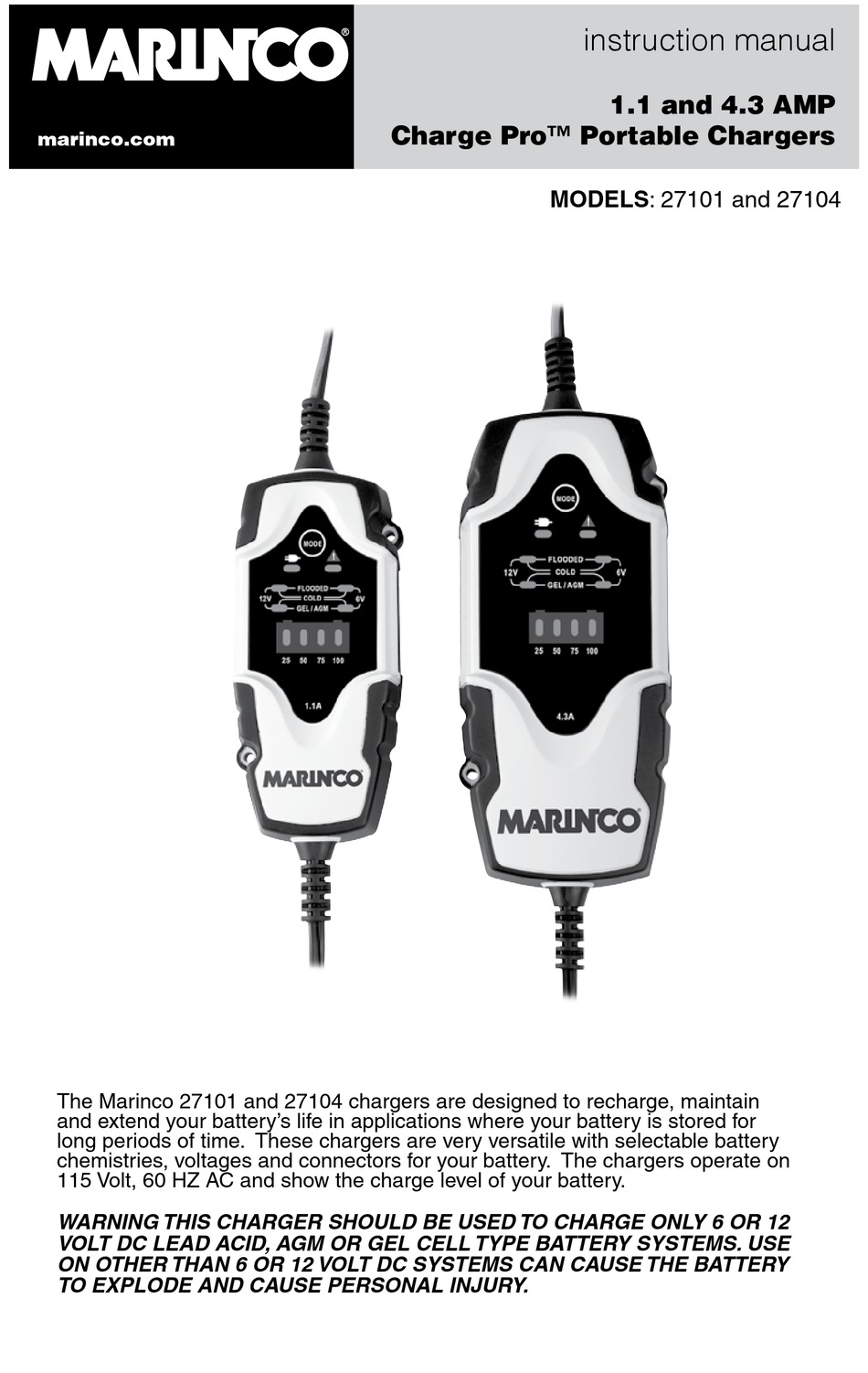

instruction manual
502-2 & 503-2 instructions
1.1 and 4.3 AMP
Charge Pro™ Portable Chargers
marinco.com
MODELS: 27101 and 27104

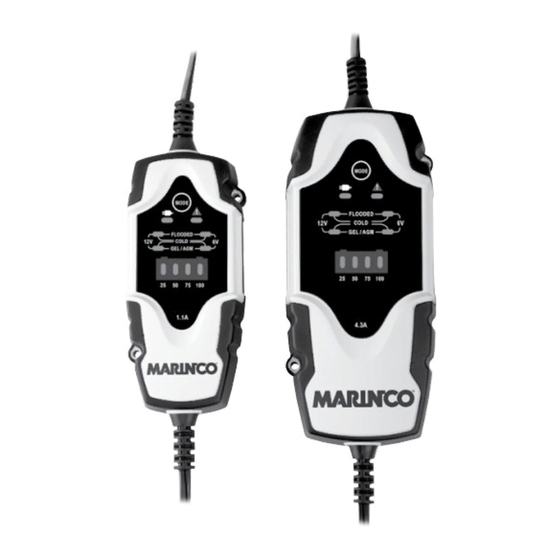

The Marinco 27101 and 27104 chargers are designed to recharge, maintain
and extend your battery's life in applications where your battery is stored for
long periods of time. These chargers are very versatile with selectable battery
chemistries, voltages and connectors for your battery. The chargers operate on
115 Volt, 60 HZ AC and show the charge level of your battery.
WARNING THIS CHARGER SHOULD BE USED TO CHARGE ONLY 6 OR 12
VOLT DC LEAD ACID, AGM OR GEL CELL TYPE BATTERY SYSTEMS. USE
ON OTHER THAN 6 OR 12 VOLT DC SYSTEMS CAN CAUSE THE BATTERY
TO EXPLODE AND CAUSE PERSONAL INJURY.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for marinco Charge Pro 27101
Summary of Contents for marinco Charge Pro 27101
-
Page 1: Instruction Manual
MODELS: 27101 and 27104 The Marinco 27101 and 27104 chargers are designed to recharge, maintain and extend your battery’s life in applications where your battery is stored for long periods of time. These chargers are very versatile with selectable battery chemistries, voltages and connectors for your battery. -
Page 2: Important Safety Instructions
B) Do not expose the charger to rain or snow. C) Use of an attachment not recommended or sold by Marinco may result in a risk of fire, electric shock, or injury to persons. -
Page 3: Personal Precautions
Charge Pro™ Portable Chargers Instructions WARNING – RISK OF EXPLOSIVE GASES 1) WORKING IN VICINITY OF A LEAD-ACID BATTERY IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES DURING NORMAL OPERATION. FOR THIS REASON, IT IS UTMOST IMPORTANCE THAT YOU FOLLOW THE INSTRUCTIONS EACH TIME YOU USE THE CHARGER. -
Page 4: Charger Location
Charge Pro™ Portable Chargers Instructions Preparing To Charge A) If necessary to remove battery from vehicle to charge, always remove grounded terminal from battery first. Make sure all accessories in the vehicle are off, so as not to cause an arc. B) Be sure area around battery is well ventilated while battery is being charged. -
Page 5: Operation
Charge Pro™ Portable Chargers Instructions B) Stay clear of fan blades, belts, pulleys, and other parts that can cause injury to persons. C) Check polarity of battery posts. POSITIVE (POS, P, +) battery post usually has larger diameter than NEGATIVE (NEG, N,–) post. D) Determine which post of battery is grounded (connected) to the chassis. -
Page 6: Notes On Rechargeable Batteries
Charge Pro™ Portable Chargers Instructions C) Ensure that there is sufficient ventilation during operation. Never cover the battery charger or the connected battery. D) Never charge lead acid batteries in containers or poorly ventilated rooms. Explosive gases can be generated during the charging process! E) Keep the battery charger as well as the battery away from ignition sources. - Page 7 Charge Pro™ Portable Chargers Instructions Disposal At the end of its useful life, do not dispose this product together with normal household waste. Drop it off at a collection center for the recycling of electrical and electronic devices. This is indicated by the symbol on the product, on the instruction manual or on the packaging.
- Page 8 Charge Pro™ Portable Chargers Instructions Charging A Lead Acid Battery Observe the instructions and safety information of the vehicle to find out how the vehicle battery should be charged. Modern vehicles are equipped with sensitive electronic parts and controls that can be damaged if you do not proceed properly! A) First make sure your lead acid battery is a 6V or 12V battery.
-
Page 9: Operating Modes
Charge Pro™ Portable Chargers Instructions Operating Modes 12V FLOODED mode • This mode is suitable for 12V Flooded battery size found in the specifications section at ambient temperature. • To select this mode, press the MODE button until LED 1 lights up. The charging process starts automatically, LED 1 is lit. -
Page 10: Mode Select
Charge Pro™ Portable Chargers Instructions 6V COLD mode • This mode is suitable for all 6V Flooded, GEL, AGM and spiral wound AGM battery size found in the specifications section at low temperature. • To select this mode, press the MODE button until LED 4 lights up. The charging process starts automatically, LED 4 is lit. -
Page 11: Specifications
WARRANTY Statement LIMITED WARRANTY For two (2) years from the date of purchase, Marinco will, at its discretion, repair or replace for the original consumer, free of charge, any part or parts found upon examination by Marinco to be defective in material or workmanship or both. All transportation charges under this warranty must be borne by the consumer. - Page 12 For more information visit our website: www.marinco.com marinco.com For a FREE catalog of Marinco Recreational ZX447 Group products, contact your local dealer or MAR_TL_045_1113 visit Marinco.com.
