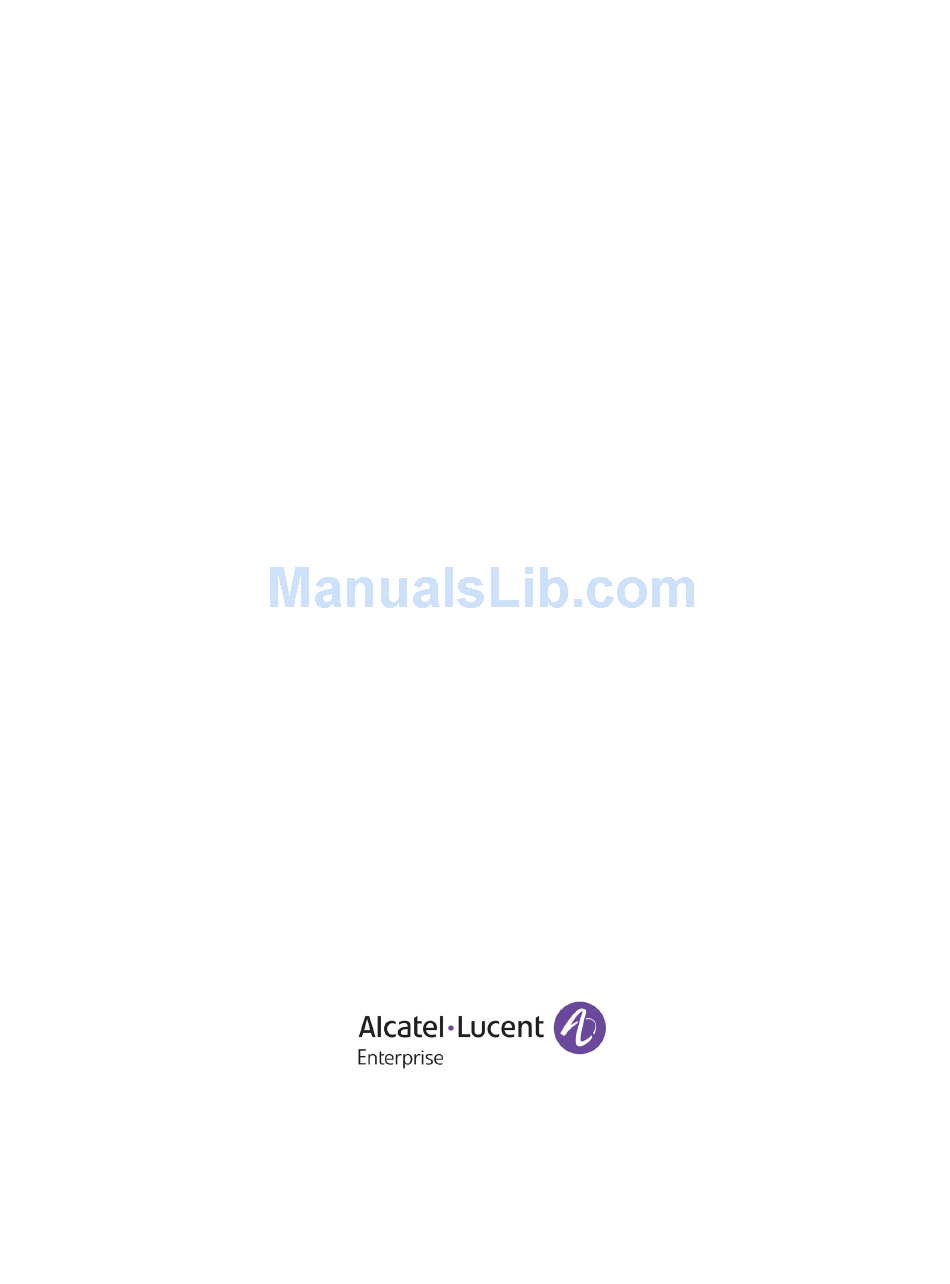

060400-10 Rev. C
October 2015
OmniSwitch 6250/6350/
6450
Transceivers Guide
enterprise.alcatel-lucent.com

Advertisement

Table of Contents
loading

Related Manuals for Alcatel-Lucent OmniSwitch 6250

Summary of Contents for Alcatel-Lucent OmniSwitch 6250

  • Page 1 060400-10 Rev. C October 2015 OmniSwitch 6250/6350/ 6450 Transceivers Guide enterprise.alcatel-lucent.com...
  • Page 2 Alcatel-Lucent and the Alcatel-Lucent Enterprise logo are trademarks of Alcatel-Lucent. To view other trademarks used by affiliated companies of ALE Holding, visit: enter- prise.alcatel-lucent.com/trademarks. All other trademarks are the property of their respective owners. The information presented is subject to change without notice.

  • Page 3: Table Of Contents

    SFP Transceiver Installation and Removal ..............1-3 Gigabit Ethernet Transceivers ..................1-5 100 Mbit Ethernet Transceivers ..................1-11 Dual-Speed Ethernet Transceivers ................1-15 10-Gigabit SFP+ Transceivers ..................1-17 Chapter 2 Transceiver Compatibility Matrix ................. 1-20 OmniSwitch 6250 ......................1-20 OmniSwitch 6350 ......................1-22 OmniSwitch 6450 ......................1-23 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 4 Contents OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...

  • Page 5: About This Guide

    About This Guide This OmniSwitch Transceivers Guide provides specifications and compatibility information on the supported transceivers for the OmniSwitch 6250, OmniSwitch 6350 and OmniSwitch 6450. Supported Platforms The information in this guide applies to the following products: OmniSwitch 6250 •...

  • Page 6: Who Should Read This Manual

    Read this guide as soon as you are ready to integrate your OmniSwitch into your network and you are ready to provide connectivity using the supported transceivers. You should have already stepped through the first login procedures and read the brief software overviews in the appropriate OmniSwitch 6250/6350/ 6450 Hardware Guide.

  • Page 7: Documentation Roadmap

    CLI-to-MIB variable mapping information for all CLI commands supported by the switch. This guide can be consulted anytime during the configuration process to find detailed and specific information on each CLI command. OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page vii...

  • Page 8: Related Documentation

    Related Documentation About This Guide Related Documentation The following are the titles and descriptions of all the related the OmniSwitch 6250/6350/6450 user manu- als: OmniSwitch 6250 Hardware Users Guide • Detailed technical specifications and procedures for the chassis and components. Also includes •...

  • Page 9: Technical Support

    About This Guide Technical Support OmniSwitch Series are included on the Alcatel-Lucent public website. This website also includes user guides for other Alcatel-Lucent Enterprise products. The latest user guides can be found on our website at: http://enterprise.alcatel-lucent.com/UserGuides Technical Support An Alcatel-Lucent service agreement brings your company the assurance of 7x24 no-excuses technical support.
  • Page 10 Documentation Feedback About This Guide page x OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...

  • Page 11: Small Form-Factor Pluggables (Sfps)

    “10-Gigabit SFP+ Transceivers” on page 1-18 • For information on installing and managing OmniSwitch hardware, see the appropriate Hardware Users Guide. For information on OmniSwitch SFP compatibility, see “Transceiver Compatibility Matrix” on page 2-21. OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-1...

  • Page 12: Sfp Msa Specification

    For information on installing SFPs, refer to the documentation included with the transceiver. This diagram is a representation only; the physical appearance of the actual module may vary slightly. Small Form Factor Pluggable (SFP) page 1-2 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...

  • Page 13: Sfp Transceiver Installation And Removal

    When inserting a SFP, be sure that the hinged face is closed. Slide the SFP straight into the slot until the module clicks firmly into place. SFP Module SFP - Hinged OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-3...
  • Page 14 Once disengaged, use the clip end of the ejector tool to carefully pull the transceiver straight out and away Ejector from the NI module. Dust Cover SFP - Ejector Button page 1-4 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...

  • Page 15: Gigabit Ethernet Transceivers

    -17 dBm Transmission Distance ~275 m on 62.5/125µm ~550 m on 50/125µm Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Supported (Alcatel-Lucent branded transceivers only) SFP-GIG-LX Gigabit SFP Optical Transceiver. Connector types Standards supported 802.3z, SFP MSA Connections supported...
  • Page 16 1000Base-LH70 Fiber Type Wavelength 1550 nm Optical Power Output 0 to +5 dBm Receiver Sensitivity -22 dBm Transmission Distance ~70 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Supported page 1-6 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 17 Supported SFP-GIG-T Gigabit SFP Copper Transceiver. Connector Type RJ-45 Standards Supported 802.3z, SFP MSA Connections supported 10/100/1000Base-T Cable Type CAT5, CAT5e, CAT6  Transmission Distance 100 m Digital Diagnostic Monitoring Not Supported OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-7...
  • Page 18 Average Power Output -9 to -3 dBm Receiver Sensitivity -19.5 dBm Transmission Distance ~10 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Supported Notes Designed for use with SFP-GIG-BX-D page 1-8 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 19 Receive: 1490 nm Average Power Output -8 to -3 dBm Receiver Sensitivity -23 dBm Transmission Distance ~20 km Operating Temperature -5ºC to 70ºC Digital Diagnostic Monitoring Supported Notes Designed for use with SFP-GIG-BX-D20 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-9...
  • Page 20 Receive: 1490 nm Average Power Output -2 to +3 dBm Receiver Sensitivity -23 dBm Transmission Distance ~40 km Operating Temperature -5ºC to 70ºC Digital Diagnostic Monitoring Supported Notes Designed for use with SFP-GIG-BX-D20 page 1-10 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 21 1470, 1490, 1510, 1530, 1550, 1570, 1590, 1610 Optical Power Output -2 to +3 dBm Receiver Sensitivity -24 dBm Transmission Distances ~62 km Operating Temperature -5 ºC to 70 ºC Digital Diagnostic Monitoring Not Supported OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-11...

  • Page 22: 100 Mbit Ethernet Transceivers

    Average Power Output -14 to -8 dBm Receiver Sensitivity -32 dBm Transmission Distance ~20 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Supported Notes Designed for use with SFP-100-BX20LT page 1-12 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 23 Average Power Output -14 to -8 dBm Receiver Sensitivity -32 dBm Transmission Distance ~20 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Supported Notes Designed for use with SFP-100-BXLC-D OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-13...
  • Page 24 Fiber Type Wavelength (nm) 1310 nm Optical Power Output -15 to -8 dBm Receiver Sensitivity -34 dBm Transmission Distance ~15 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Not Supported page 1-14 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 25 Fiber Type Wavelength 1310 nm Optical Power Output -15 to -8 dBm Receiver Sensitivity -34 dBm Transmission Distances ~40 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Not Supported OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-15...

  • Page 26: Dual-Speed Ethernet Transceivers

    Transmit: 1310 nm Receive: 1550 nm Average Power Output -9 to -3 dBm Receiver Sensitivity -18.7 dBm Transmission Distances ~ 10 km Operating Temperature 0 ºC to 70 ºC Digital Diagnostic Monitoring Not Supported page 1-16 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 27 100Base-LX: -28 1000Base-LX: -22 Transmission Distances 10 km Operating Temperature 0ºC to 70ºC Digital Diagnostic Monitoring Not Supported Notes: Transceiver may take between 10 and 20 seconds to initialize when first inserted. OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-17...

  • Page 28: 10-Gigabit Sfp+ Transceivers

    10GBase-LR Fiber Type Wavelength 1310 nm Optical Power Output -8.2 to 0.5 dBm Receiver Sensitivity -12.6 dBm Transmission Distance ~ 10 km Operating Temperature 0 ºC to 70ºC Digital Diagnostic Monitoring Supported page 1-18 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 29 10GBase-LRM Fiber Type Wavelength 1310 nm Optical Power Output -6.5 to .5 dBm Receiver Sensitivity -6.5 dBm Transmission Distance ~ 220 m Operating Temperature 0 ºC to 70ºC Digital Diagnostic Monitoring Supported OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 1-19...
  • Page 30 OM1: ~33m @ 10G, ~275m @ 1G OM2: ~82m @ 10G, ~550m @ 1G OM3: ~300m @ 10G, ~550m @ 1G Operating Temperature 0 ºC to 70ºC Maximum Power Consumption <1.0 Watt Digital Diagnostic Monitoring Supported page 1-20 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...

  • Page 31: Transceiver Compatibility Matrix

    Transceiver Compatibility Matrix OmniSwitch 6250 2 Transceiver Compatibility Matrix OmniSwitch 6250 The following table shows the supported transceiver configurations and the minimum release required for support on the OmniSwitch 6250: OS6250 SFP-GIG-SX 6.6.1 SFP-GIG-LX 6.6.1 SFP-GIG-LH40 6.6.1 SFP-GIG-LH70 6.6.1 SFP-GIG-EXTND 6.6.1...
  • Page 32 OmniSwitch 6250 Transceiver Compatibility Matrix OS6250 SFP-10G-LR Not supported SFP-10G-ER Not supported SFP-10G-LRM Not supported SFP-10G-C Not supported SFP-10G-GIG-SR Not supported Only supported on combo ports @ 100Mbps speed. page 2-22 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...

  • Page 33: Omniswitch 6350

    SFP-100-LC-SM40 Not supported SFP-DUAL-BX-D Not supported SFP-DUAL-BX-U Not supported SFP-DUAL-SM10 Not supported SFP-10G-SR Not supported SFP-10G-LR Not supported SFP-10G-ER Not supported SFP-10G-LRM Not supported SFP-10G-C 6.7.1 SFP-10G-GIG-SR Not supported Supports 1G only. OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 2-23...

  • Page 34: Omniswitch 6450

    6.6.5 SFP-10G-LR 6.6.3 6.6.5 SFP-10G-ER 6.6.3 6.6.5 SFP-10G-LRM 6.6.3 6.6.5 SFP-10G-C 6.6.3 6.6.5 SFP-10G-GIG-SR 6.6.4 6.6.5 6450-U24(S) supports 10/100/1000 Mbps on user ports and combo ports, all other ports support 1G only. page 2-24 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
  • Page 35 Supported on 6450-U24(S) user ports and combo ports. Not supported on 1G/10G uplink ports or expansion modules. Supports 1G/10G speeds on 10G SFP+ ports only. Transceiver not supported on 1G SFP ports. OmniSwitch 6250/6350/6450 Transceivers Guide October 2015 page 2-25...
  • Page 36 OmniSwitch 6450 Transceiver Compatibility Matrix page 2-26 OmniSwitch 6250/6350/6450 Transceivers Guide October 2015...
