No supplied cables are used with these connections:
•
Please purchase the Necessary Cables at your local store.
Before you connect the AC Power Cord:
Be sure other Devices are connected properly before plugging in the AC
Power Cord.

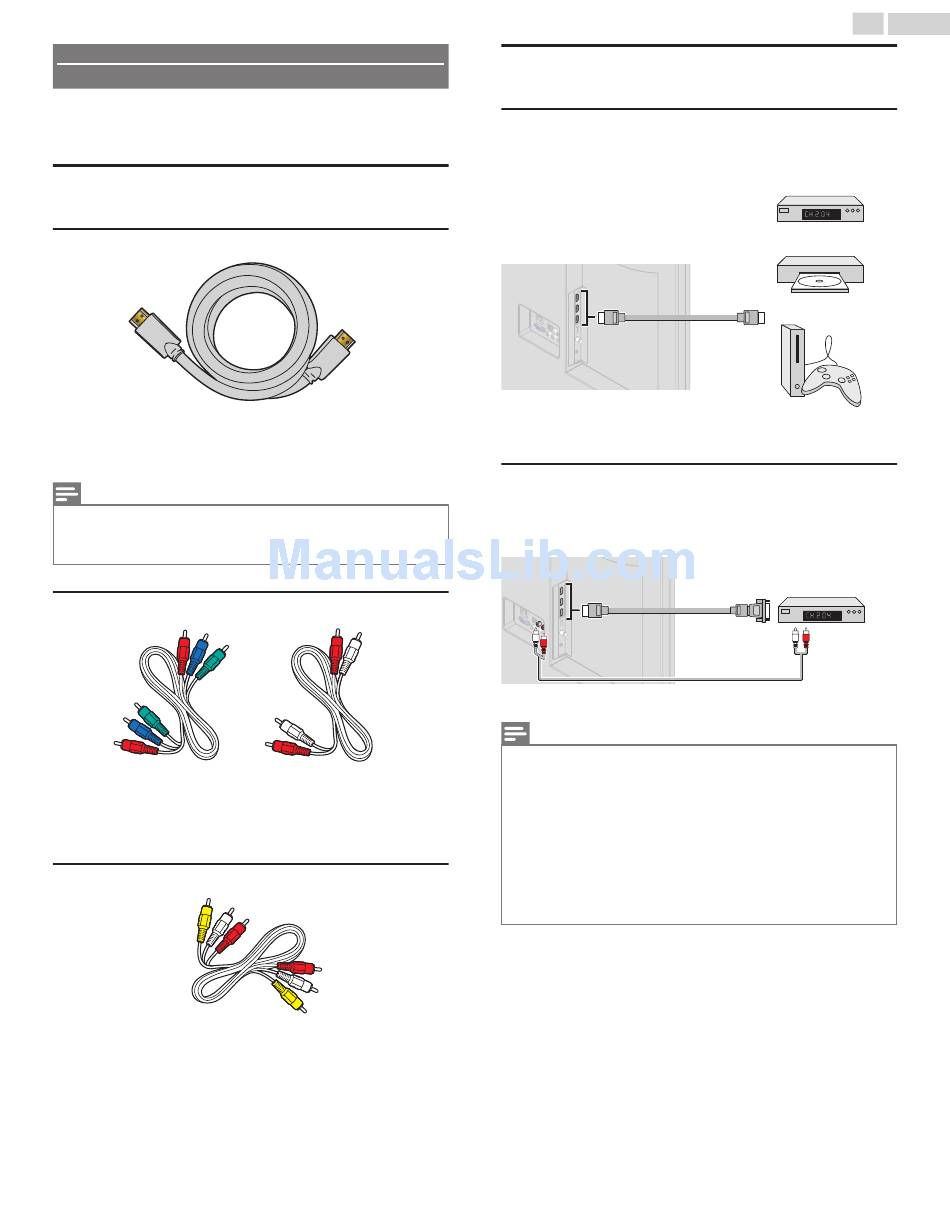

Selecting your Connection quality
HDMI - Highest quality
Supports high-definition Digital signals and gives highest picture and
sound quality. Video and Audio signals are combined in one cable. You
must use HDMI for full high-definition Video and to enable EasyLink(HDMI
CEC).
Note(s)
•
Philips HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP is a form of
Digital Rights Management that protects high definition content in Blu-ray discs or DVDs.
•
The HDMI-ARC connector on the TV features HDMI-ARC functionality. This allows output of TV
Audio to an HDMI-ARC-compliant Device.
Component (Y Pb Pr) - High quality
Supports High-Definition Analog signals but gives lower picture quality
than HDMI. Component (Y/Pb/Pr) Video cables combine red / green /
blue Video cables with red / white Audio (L/R) Cables. Match the cable
colors when you connect to the TV.
Composite - Basic quality
For Analog Connections. Composite Video / Audio Analog cable usually
combine a yellow Video Cable with red / white Audio (L/R) Cables. With
this Unit, yellow cable must be connected to Y (green) jack on the
Component Video Input jacks.
Connecting your Devices
HDMI Digital Connection
HDMI Connection offers the Highest Picture quality.
HDMI (High-Definition Multimedia Interface) transports High-Definition
Digital Video and multi-channel Digital Audio through a single cable.
HDMI cable
HDMI cable
HDMI cable
IN IN IN
HDMI-DVI Connection
This Unit can be connected to your Device that has a DVI Terminal.
Use an HDMI-DVI Conversion Cable for this Connection and it requires
Audio Cable for Analog Audio signal as well.
HDMI-DVI
HDMI-DVI
HDMI-DVI
IN IN IN
conversion cable
conversion cable
conversion cable
IN IN IN
Audio (L/R) cables
Note(s)
•
Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable is
recommended for the Better compatibility.
For HDMI Connection
•
The Unit accepts 480i / 480p / 720p / 1080i, 1080p, 2160p 24/30/60Hz of Video signals,
32kHz / 44.1kHz and 48kHz of Audio signals.
•
This Unit accepts LPCM, AC-3, DD+ Audio signal.
•
This Unit accepts only signals in compliance with EIA861.
For HDMI-DVI Connection
•
The Unit accepts 480i, 480p, 720p, 1080i, 1080p and 2160p Video signals.
•
HDMI-DVI Connection requires separate Audio Connections as well and the Audio signals are
Output as Analog (L/R) Audio.
•
DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
