Remote Level Connections
The figure below shows several options which may be
used for remote level control of the AM8. Pots, switch-
es, and external control voltages may all be used as the
application dictates.

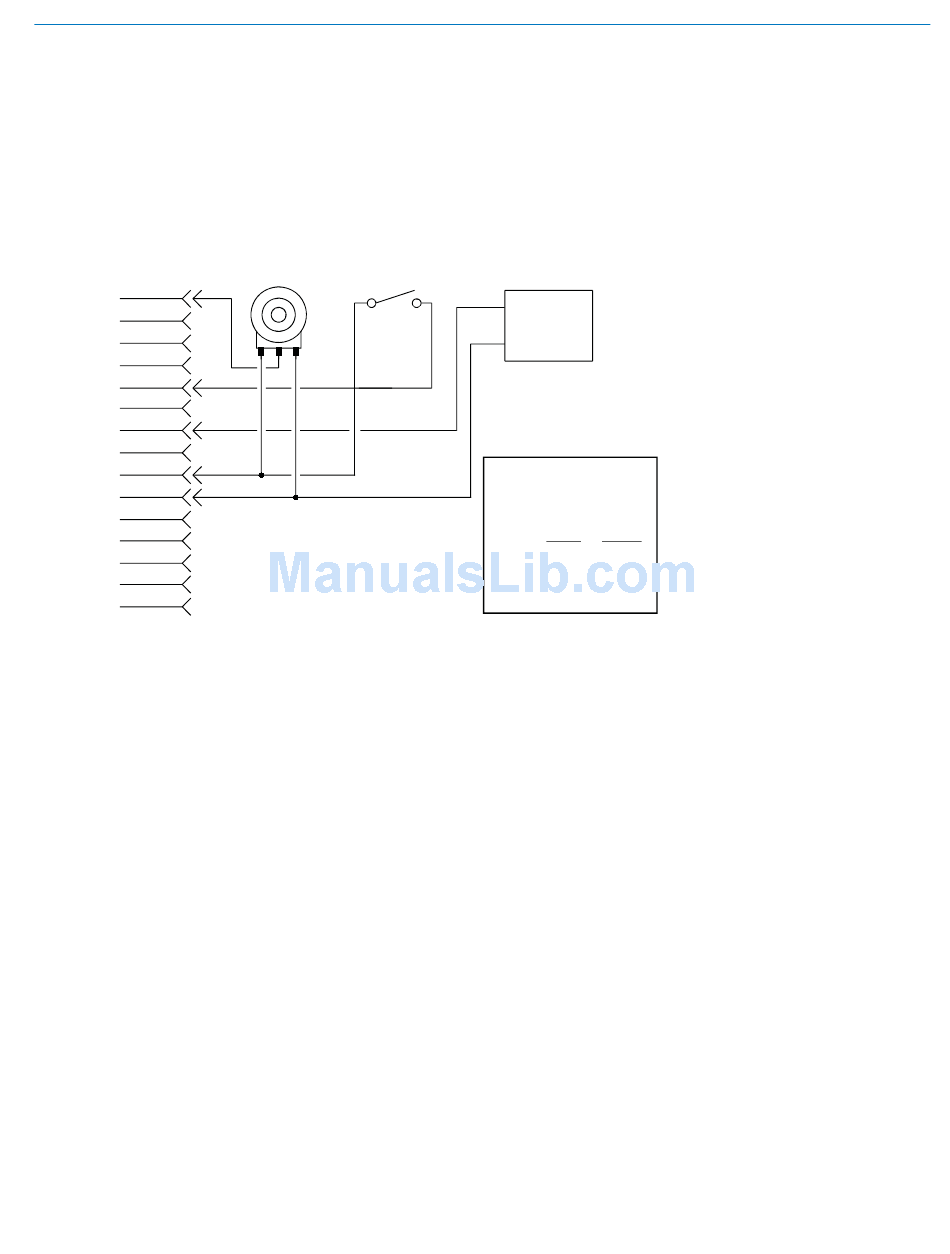

WIRING DIAGRAMS, REMOTE LEVEL CONTROL PORT
(REMOTE LEVEL CONTROL PORT, 15 PIN D-SUB)
Pin 1
Ch 1 Wiper
Pin 2
Ch 2 Wiper
Pin 3
Ch 3 Wiper
Pin 4
Ch 4 Wiper
Pin 5
Ch 5 Wiper
Pin 6
Ch 6 Wiper
Pin 7
Ch 7 Wiper
Pin 8
Ch 8 Wiper
Pin 9
Ch 1-8 CCW
Pin 10
Ch 1-8 CW
Pin 11
Main CW
Pin 12
Main Wiper
Pin 13
Main CCW
Pin 14
N/C
Pin 15
Reset to Local
Rio Rancho, NM
Continuous
On/Off
Level Control, Ch 1
Channel Mute, Ch 5
10k Linear Pot
SPST Switch
On - Open
Off - Closed
Continuous
Level Control, Ch 7
External DC Control Voltage
Control
Voltage
Gnd
Maximum Distance vs Wire
Gage for Remote Control
Connections
Single
All 9
Control
Controls
550 ft
20 AWG
5000 ft
350 ft
22 AWG
3000 ft
200 ft
24 AWG
2000 ft
125 ft
26 AWG
1200 ft
75 ft
28 AWG
750 ft
8 Channel Automatic Mixer
9
