Optoma NuForce MCA-18 User Manual
Optoma NuForce MCA-18 User Manual

Optoma NuForce MCA-18 User Manual

Multi-channel amplifier

Advertisement

Optoma NuForce
NuForce
MCA18
MCA-18
Multi-Channel Amps
Multi-Channel Amplifier
User's Manual
User's Manual
ATMCAGB

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the NuForce MCA-18 and is the answer not in the manual?

Questions and answers

Summary of Contents for Optoma NuForce MCA-18

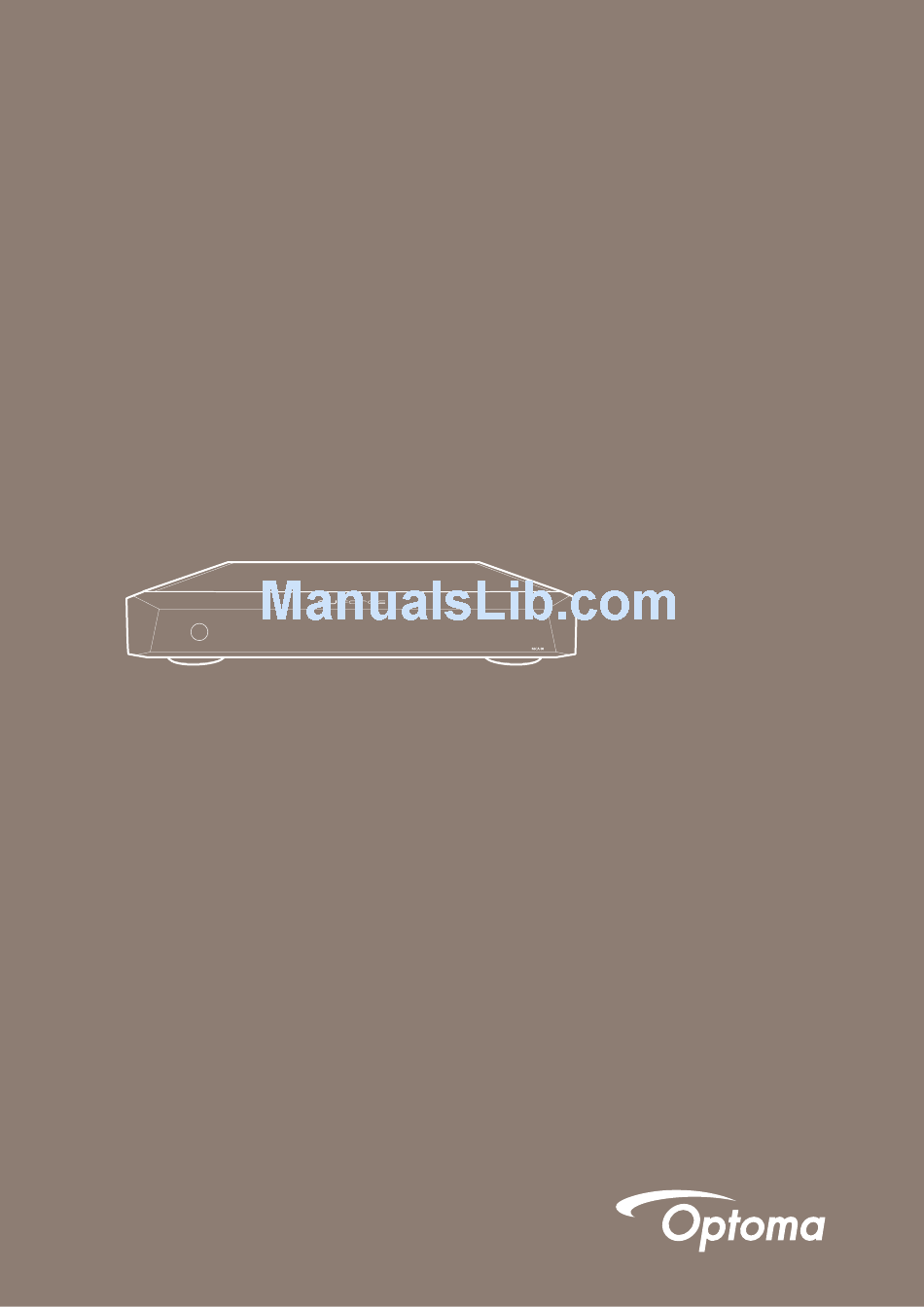

  • Page 1 Optoma NuForce NuForce MCA18 MCA-18 Multi-Channel Amps Multi-Channel Amplifier User’s Manual User’s Manual ATMCAGB...
  • Page 2 FCC Notice - Declaration of Conformity Information This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 INTRODUCTION NuForce performance and value. the 400 kHz PWM switching frequency constantly adjusts to the input signal, output current demands, and loudspeaker impedance variations. Incredible speed and accuracy ensure that the most explosive dynamics and the minutest of details convey the kind of lifelike sound upon which NuForce’s reputation rests. sophistication defy the competition at its price point.
  • Page 4: Quick Start Guide

    QUICK START GUIDE Product Overview Front Panel Back Panel 7.1 ANALOG IN • To power on the unit, please turn on the rear AC switch, then press the power button on the front panel. Connections • Input: 8 x RCA •...
  • Page 5: Specifications

    SPECIFICATIONS Input 8 x RCA Output 8 x Five-way binding posts Power Output 55W/Ch. X 8 (8 ohm) Gain 23 dB Input Impedance 25k ohm Sensitivity 1.38 V THD+N 0.01% Frequency Response 10 Hz - 50kHz S/N Ratio > 89dB Dimensions (Depth x Width x Height) 13.4 inches (34.1 cm) x 17 inches (43.0cm) x 3.1 inches (8.1 cm)
