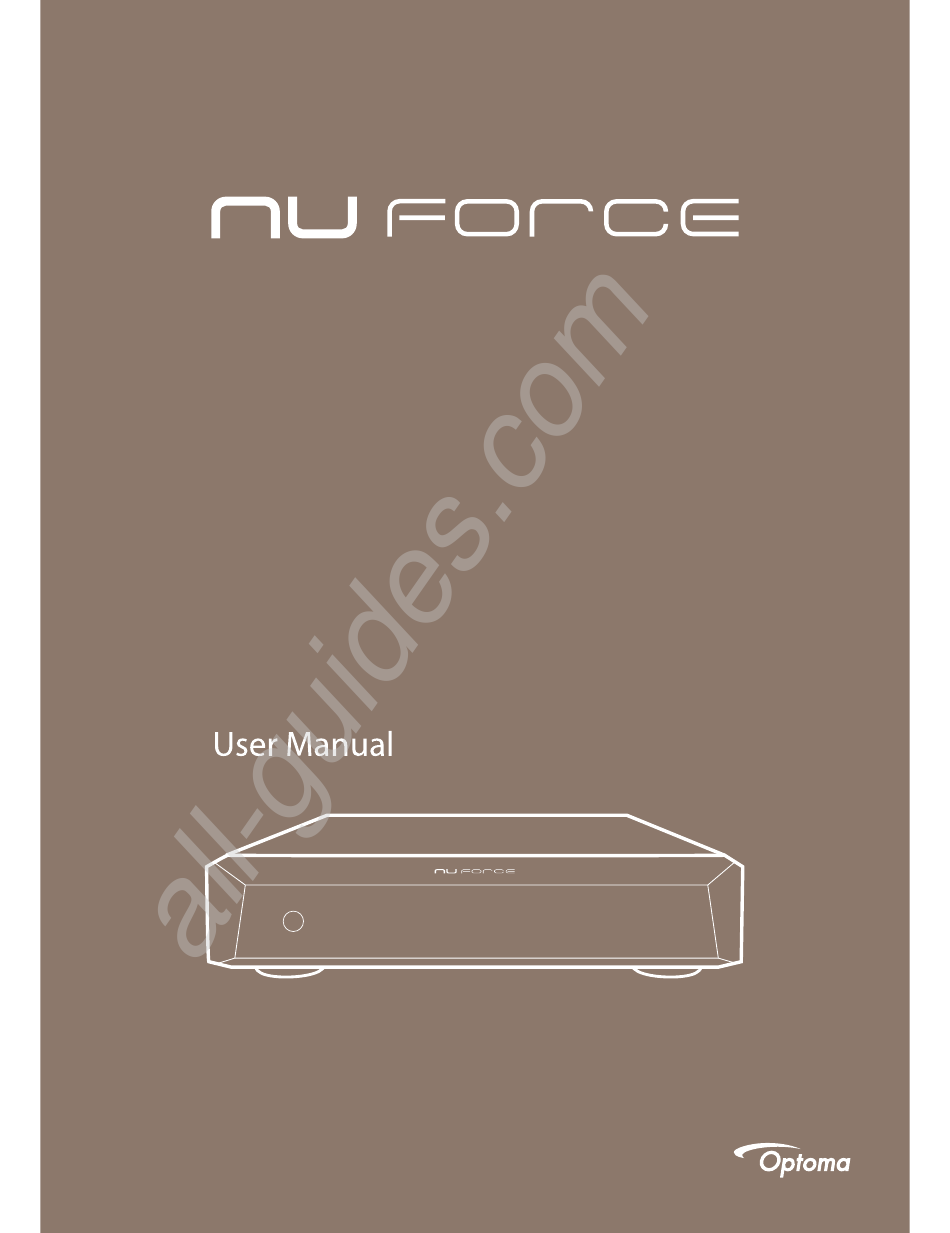

- Page 1 All manuals and user guides at all-guides.com MCA30...
-
Page 2: Safety Precautions
All manuals and user guides at all-guides.com MCA30 This device has been tested and found to comply with the limits for a Class B digital device, Statement pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protec- tion against harmful interference in a residential installation. - Page 3 All manuals and user guides at all-guides.com MCA30 Features • Nuforce state of the art class D power amplifier operation for superior engineering • Resonant LLC power supply for high efficiency and low EMI • BTL mode allows more power for main channels •...
- Page 4 All manuals and user guides at all-guides.com MCA30 Operation Caution Guide • Do not connect the power cord until you have completed all other connections • Do not plug or unplug input or output connection while MCA30 is turned on •...
-
Page 5: Stereo Mode
All manuals and user guides at all-guides.com MCA30 Operation Guide Stereo mode MCA30 output normal power output on Stereo mode. 1.Make sure “Stereo-BTL” mode switch set to Stereo mode 2.Connect RCA input and speakers outputs. OPTICAL COAXIAL HDMI AVP18 AVP18 STEREO MCA30 220V... -
Page 6: Btl Mode
All manuals and user guides at all-guides.com MCA30 Operation Guide BTL mode MCA30 output double power output when in BTL mode. BTL mode uses two channels as output to double output power. 1.Make sure “Stereo-BTL” mode switch set to BTL mode 2.Connect RCA input and speakers outputs accordingly. - Page 7 All manuals and user guides at all-guides.com MCA30 Operation- BTL mode Stereo and BTL mode can be used at the same time. For example, user can use BTL 1 and BTL 2 channels for front left and front right speakers respectively. Or use BTL 1, BTL 2 and BTL 3 channels for front left, front right and center speakers.
-
Page 8: Specifications
All manuals and user guides at all-guides.com MCA30 Specifications Color Black 432 x 100 x 381 Dimensions W x D x H mm Weight 8.5 kg 110 / 230V Power Supply Input RCA x 8 Output Five-way binding posts x 8 Channel Stereo: 8 Channels BTL: 4 ~ 7 Channels...
