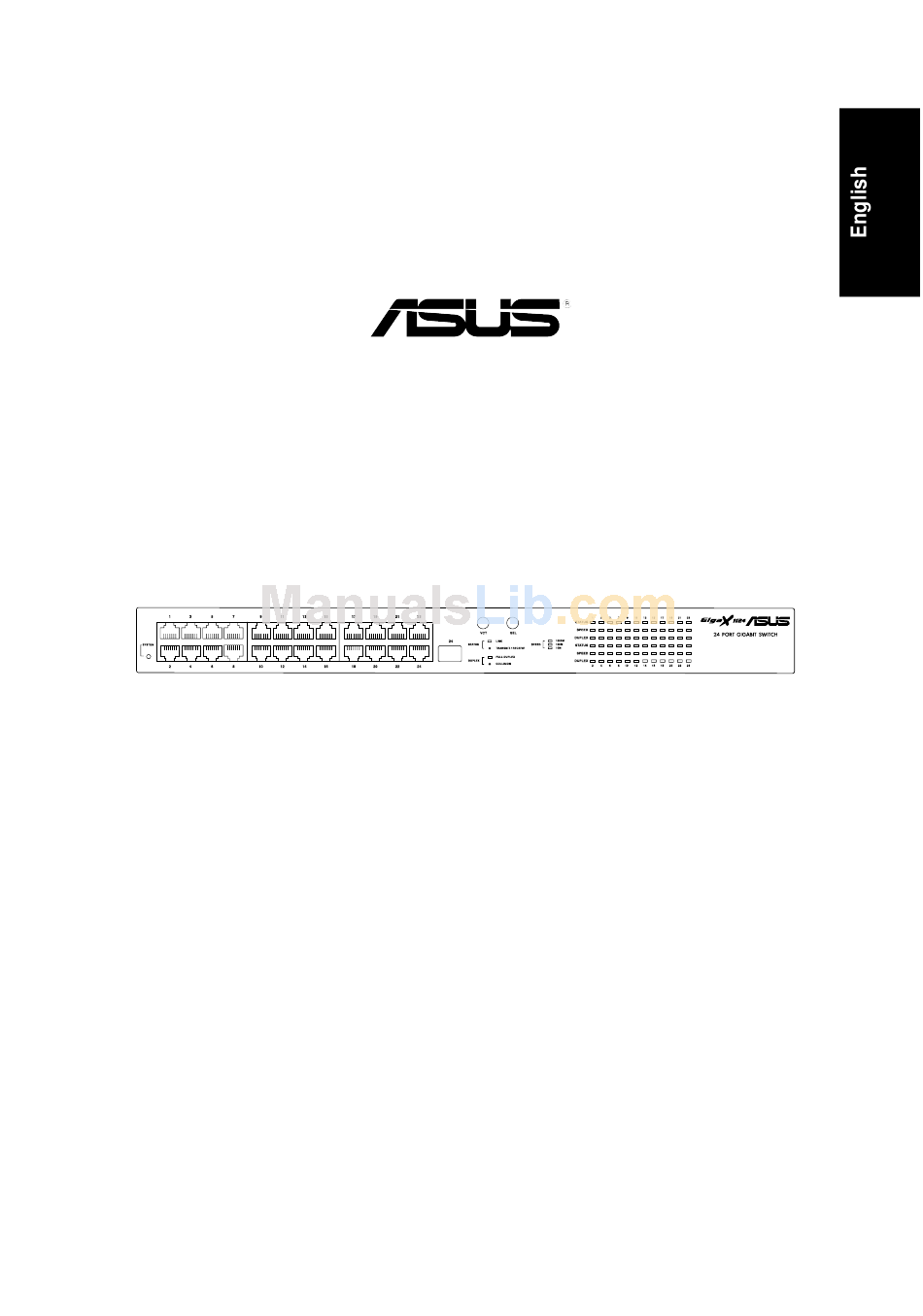

GigaX 1124
Quick Installation Guide
Copyright © 2004 ASUSTeK COMPUTER INC. All Rights Reserved.

Advertisement

   Related Manuals for Asus GigaX 1124

   Summary of Contents for Asus GigaX 1124

  • Page 1

    GigaX 1124 Quick Installation Guide Copyright © 2004 ASUSTeK COMPUTER INC. All Rights Reserved.

  • Page 2: Package Contents

    Introduction The GigaX 1124 rack-mountable switch provides non-blocking, wire-speed performance to meet your intensive network demands. The switch features MDI/MDIX Ethernet ports with auto-sensing capability to automatically detect the cables attached to them and adjust the speed of data exchange. This plug-and-play function requires no configuration, making the switch easy to install and maintain.

  • Page 3: Technical Specifications

    Environmental ranges Temperature 0º to 40º C Humidity Altitude Power Input Consumption 50 Watts Certification ASUS GigaX 1124 Operating Storage -40º to 70º C (32º to 104º F) (-40º to 158º F) 0 to 85% 0 to 90% up to 15,000 ft...

  • Page 4: Front Panel

    Receiving or transmitting data No Ethernet link 1000 Mbps 100 Mbps 10 Mbps or no Ethernet link The switch is operating in full-duplex mode. The switch is operating in half-duplex mode. No Ethernet link 5 6 7 ASUS GigaX 1124...

  • Page 5

    Amber NOTE. The number of lighted LEDs on Pairs 1 ~ 4 shows the distance from the switch to the defective point (1 LED = 10 meters). ASUS GigaX 1124 Status Description The switch is on. The switch is initializing or VCT is in progress.

  • Page 6: Rear Panel

    The Power LED and the LED indicators for active Ethernet ports light up to indicate that the device is on and in use. Refer to the front panel LED table on page 4 for the LED descriptions. Fans ASUS GigaX 1124...

  • Page 7

    4. Press SEL to select another port to test. Follow steps 2 to 5 to run VCT. 5. When done, press the VCT button to return to normal switch operation. NOTE. The switch automatically goes back to normal operation after two minutes even if you do not press the VCT button. ASUS GigaX 1124...

  • Page 8

    GRN (Green) AMB (Amber) G - Green A - Amber 100m GRN (Green) AMB (Amber) G - Green A - Amber ASUS GigaX 1124 Port Select Pair 1 Pair 2 Port Select Pair 3 Pair 4 110m 120m Port Select...

  • Page 9: Placement Options

    4. Follow steps 2 and 3 to secure the other bracket. 5. Place the switch on a 19-inch rack, then secure it with two rack mount screws. NOTE. The rack mount screws are not included in your switch package. Use the screws from the rack. ASUS GigaX 1124...

  • Page 10: Troubleshooting

    This troubleshooting guide provides answers to some common problems that you may encounter while installing and/or using the switch. These problems require some simple troubleshooting that you can perform by yourself. Contact ASUS Technical Support if you encounter problems that are not mentioned in this section. Problem The POWER LED does not light up.
