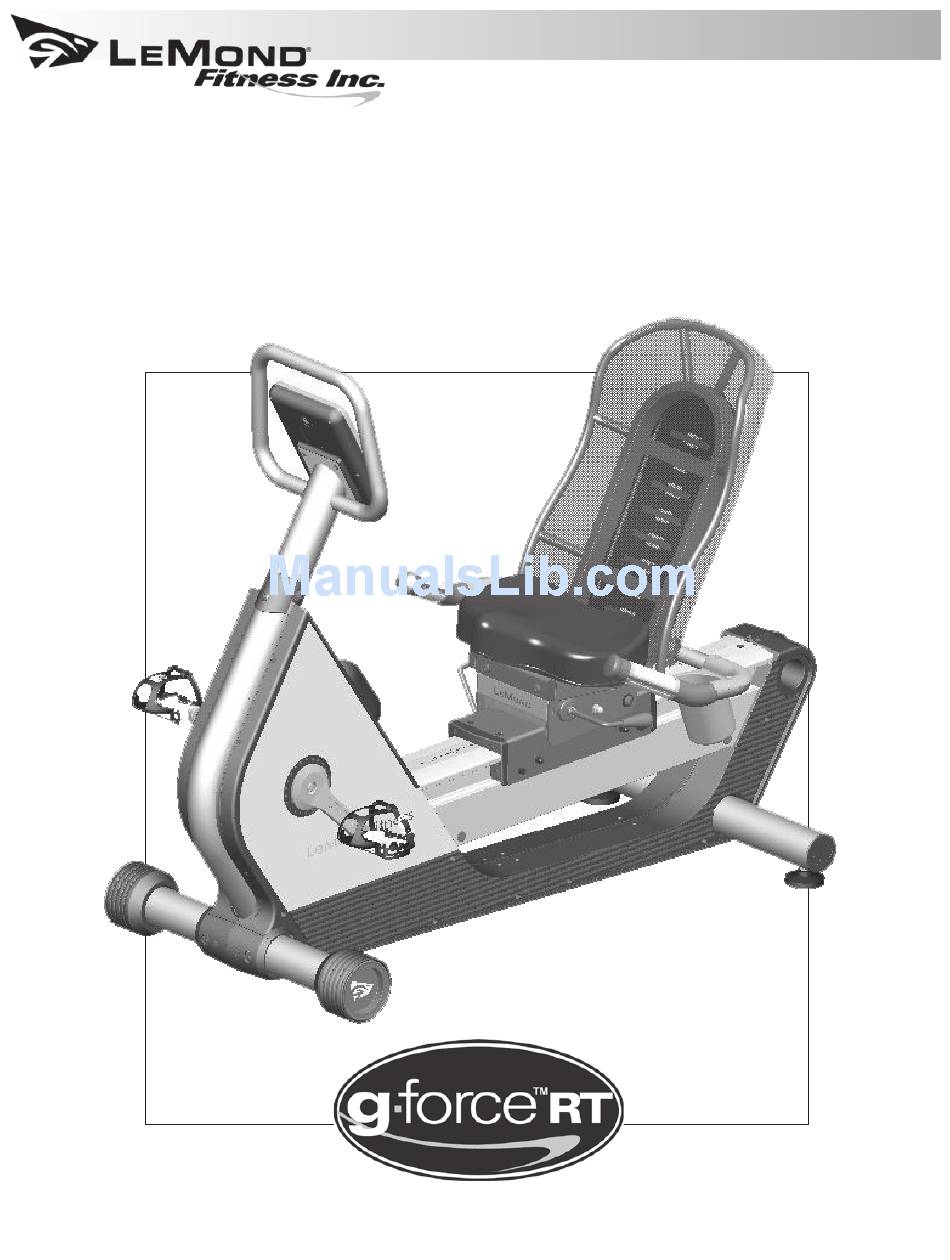

- Page 1 A S S E M B LY I N S T R U C T I O N S...
- Page 2 3.1 Location It is to your benefit to choose a suitable location in your home for your new recumbent bike. The g•force RT was designed to be an unobtrusive and attractive addition to your home. A smaller profile and much quieter drive mechanism than other recumbent bikes, allows the bike to be situated and used in almost any location in the home with a minimum of disruption.
-
Page 3: Getting Started
Contact the delivery carrier immediately if any damage is discovered. Contact the LeMond Fitness Customer Service Department at (+1) 425.482.6773 between 7:00 a.m. – 5:00 p.m., M-F, Pacific time to report any... - Page 4 3.3 Parts Contents of Large Cardboard Box Part Description Quantity Plastic bag with tools, hardware and instructions Front stabilizer with one wheel attached Front wheel Front wheel cap Rear stabilizer with one foot attached Rear leveling foot Seat frame Seat bottom Handlebar Console mast Pedals...
-
Page 5: Assembling The Bike
ASSEMBLY AND INSTALLATION INSTRUCTIONS M8x50 M6x15 flat washer M8x30 M5x25 star washer M8x20 M5x15 self-tapping screw Tools and Hardware List Part Number Description Quantity SA10525 M5x25 screw SC10830 M8x30 screw SC10615 M6x15 screw SC10515 M5x15 screw SC10820 M8x20 screw SC10850 M8x50 screw SL20515 self-tapping screw... -
Page 6: Front Stabilizer
3..1 Body 1. Fold down the sides of the carton base and remove the packing material from around the bike. 2. Leave the body of the bike on the carton base while the remaining assembly is completed. CAUTION: Remove the staples completely to avoid injury. -
Page 7: Rear Stabilizer
ASSEMBLY AND INSTALLATION INSTRUCTIONS 3..3 Rear Stabilizer 1. Locate the rear stabilizer and the leveling feet. 2. Slide the rear stabilizer into place at the rear of the body frame from the right side and rotate until the set screw is positioned in the alignment notch. -
Page 8: Attaching The Display Console
Attaching the Display Console to the Console Mast Battery Installation CAUTION: Never use conventional alkaline batteries. You will damage your electronic parts and void your warranty. g•force RT The display console of the is powered by (4) rechargeable AA nickel-metal hydride (Ni-MH) batteries, which are included. - Page 9 ASSEMBLY AND INSTALLATION INSTRUCTIONS 3.. Seat Attaching the Adjustment Handles to the Seat Carrier 1. Locate the seat adjustment handles. They can be found in the plastic bag containing the tools and other hardware. 2. The shorter, L-shaped handle is attached to the left side of the bike and controls the seat angle adjust- ment.
- Page 10 Attaching the Seat Assembly to the Body Note: Install the handlebars and seat bottom before attaching the seat assembly to the body of the bike. 1. Locate the two tabs that are on the top surface of the seat carrier which is located on the seat track of the body.
-
Page 11: Cup Holders
ASSEMBLY AND INSTALLATION INSTRUCTIONS 3.. Pedals Note: All bicycle pedals have a designated left and right. Your pedals are marked as such on the pedal itself. Left and right orientation on the bike is determined as the position you would be in while riding the bike. - Page 12 LeMond Fitness Inc. 17280 Woodinville-Redmond Road Building B Suite 888 Woodinville, WA 98072 USA www.Lemondfitness.com Telephone: (+1) 425.482.6773 Fax: (+1) 425.482.6724 Document #300205, Rev B...
