Infrared Electric Fireplace Heater
OWNER'S MANUAL
Model No. IMP-405-BR, IMP-405-BL, IMP-405-WH
CUSTOMER SERVICE: 1-800-752-5262
PLEASE SAVE THESE INSTRUCTIONS
WARNING: READ THIS OWNER'S MANUAL CAREFULLY BEFORE USE.
Thank you for choosing our Electric Fireplace. This owner's manual will provide you with
valuable information necessary for the proper care and maintenance of your new
Advertisement
Table of Contents
Summary of Contents for Improvements IMP-405-BR

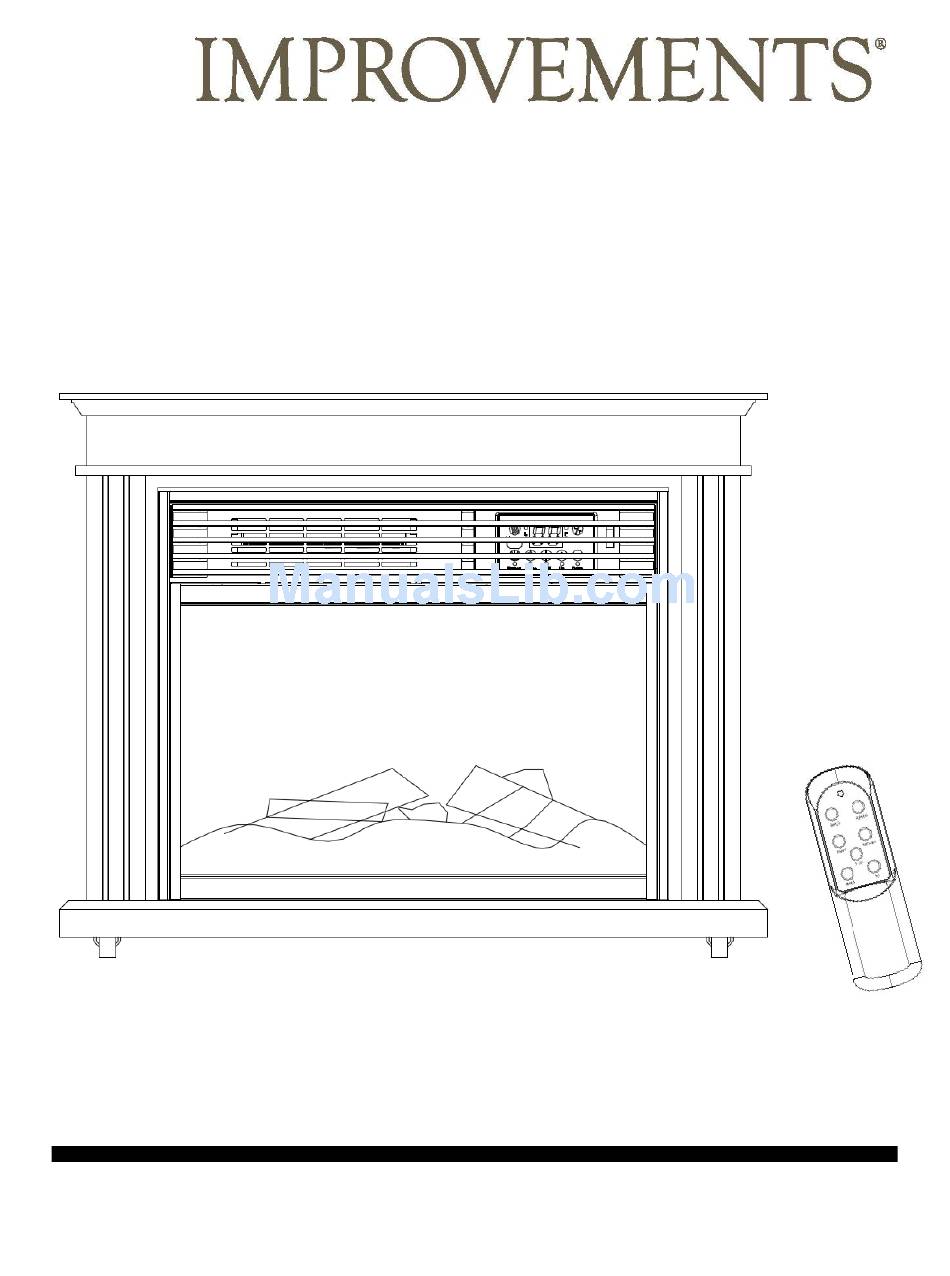

- Page 1 Infrared Electric Fireplace Heater OWNER’S MANUAL Model No. IMP-405-BR, IMP-405-BL, IMP-405-WH CUSTOMER SERVICE: 1-800-752-5262 PLEASE SAVE THESE INSTRUCTIONS WARNING: READ THIS OWNER’S MANUAL CAREFULLY BEFORE USE. Thank you for choosing our Electric Fireplace. This owner’s manual will provide you with...
-
Page 2: Important Instructions
product. Please take a few moments to thoroughly read the instructions and familiarize yourself with all the operational aspects of your new heater. IMPORTANT INSTRUCTIONS When using this electric unit, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following: 1. -
Page 3: Specifications
firmly on the plug, DO NOT unplug by pulling on the cord. 16. Always unplug the unit before moving or cleaning, or whenever the heater is not in use. 17. Use only for intended household use as described in this manual. Any other use not recommended by the manufacturer may cause fire, electric shock, or injury to persons. -
Page 4: Product Diagram
WARNING: It is normal for the power cord to feel warm to the touch; however, a loose fit between the outlet and the plug may cause overheating of the plug. If this occurs, try inserting the plug into a different outlet. Contact a qualified electrician to inspect the original outlet for damage. - Page 5 1、Power indication light: When master switch is turned on the power light will turn red, pressing the power button will turn on the unit. 2、Power button: Powers the display on and off. 3、Signal-receiving window: For receiving remote control signal. 4、Low light: Low range mode indicator lights up for low-grade heat.(1,000 watts) 5、Heater button: Set the heater mode and turn on and off the heating function.
-
Page 6: Operating Your Heater
Remote Control Power button: Powers the display on and off. Flame light button: Adjust the brightness of the flame Heater button: Set up the heater mode and turn off Timer button: User setting timing boot or shutdown ℃/℉Button (Button for alternating between Fahrenheit and Celsius)the heat Down button：For setting temperature or time downward Up button: For setting temperature or time upward... - Page 7 1、Start and select working mode Turn the heater on by pressing the ON/OFF button on the control panel or by pressing the RED Power button on the supplied remote control. Once the heater has been in operation and turned off with the power button, the fan will continue running for 3 min Or POWER to cool the elements and dissipate remaining heat.
- Page 8 3. Setting flame Adjust the brightness of the flame with flame button on control panel or flame button on remote. Flame brightness can be adjusted with these buttons or turned off completely. 4. Setting timer-power- off Caution! ONLY under power-on mode can you set timer-power-off function. When starting the unit, press the timer button on the control panel or remote control.
-
Page 9: Troubleshooting
5、Setting electro lock Function of electro lock can avoid misoperation from children. Locking can be set in both power-on and power-off modes. Press Temp Up and Temp Down buttons together for 3 seconds. Locking is fulfilled when a buzzer rings. When locked, control panel and remote control failed to function. - Page 10 STORAGE Store the heater in a cool, dry location when not in use. To prevent dust and dirt build- up, use the original packaging to repack the unit.
