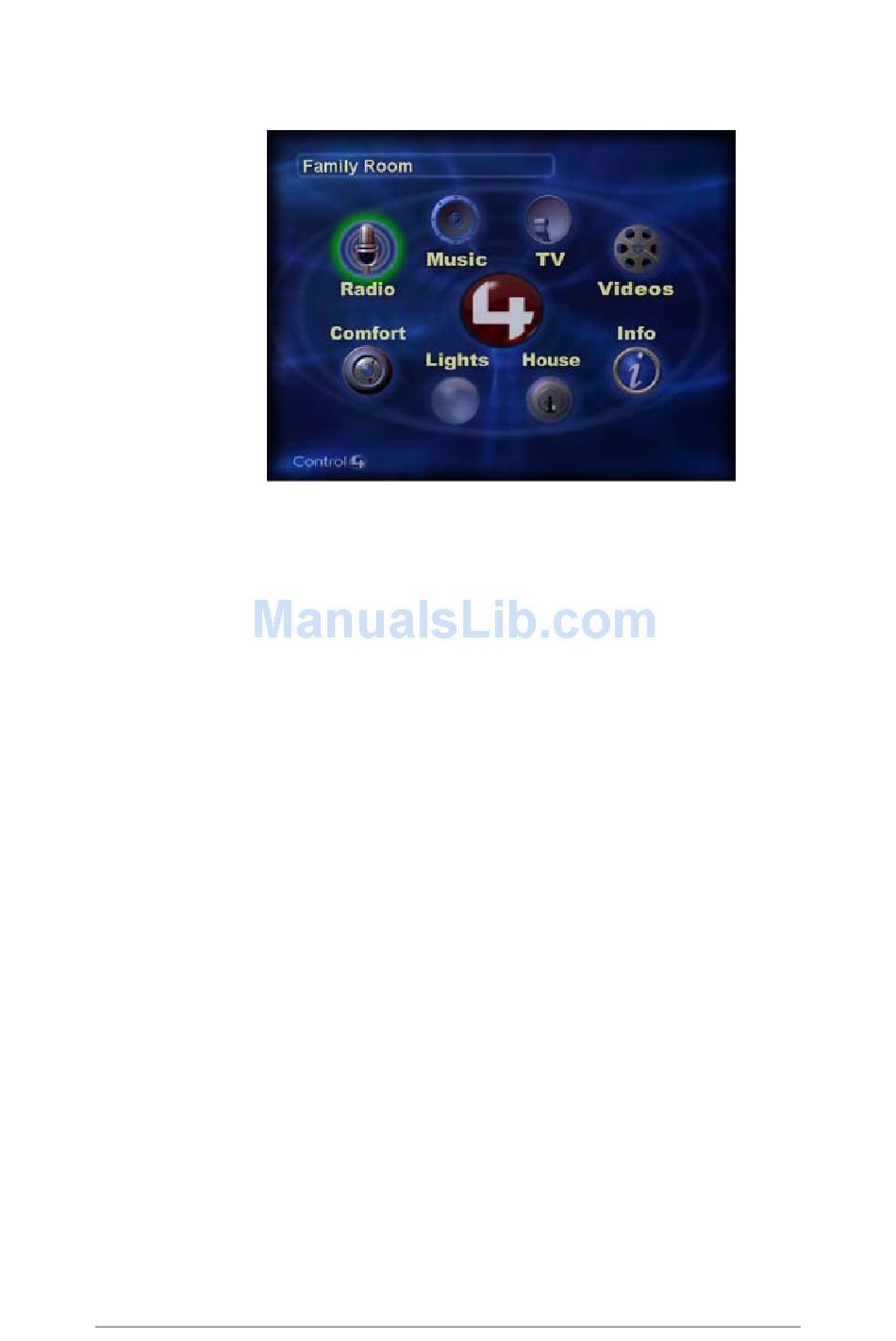

Figure 1-1.
On-Screen Navigator Home Page
The On-Screen Navigator Home page consists of:

Current Location

The current room name displays in the location
placeholder (upper-left of screen), which provides access
to all other rooms in the system available for navigation or
control.
A default location for this device is specified during the
setup. However, you may choose a different room at any
time (see "Change Location" on page 6), as long as the
"Disable View" for this location has not been set (see
"Enable or Disable Viewing Options" on page 55).
If a name does not display in the location placeholder,
then On-Screen Navigator is probably not connected to a
Director (see more on this in Chapter 9).

Subsystem Buttons

The subsystem buttons provide access to all subsystems
available for control from the current room. If a subsystem
button is not brightly lit, then controls for that subsystem
are not available from the current location. The potential
subsystems in any given room are:
4
Current Location
Subsystem Buttons
