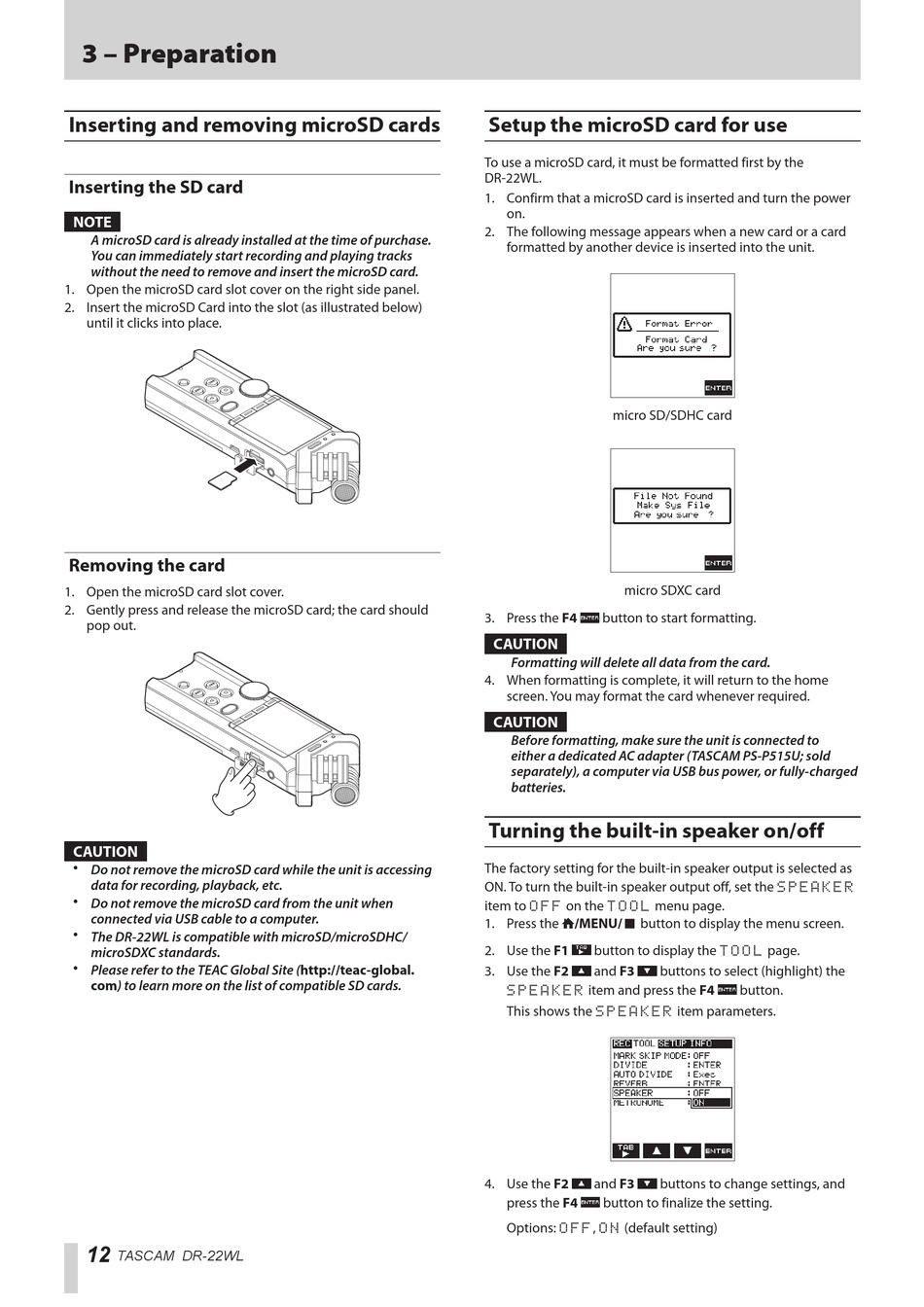

3 – Preparation

Inserting and removing microSD cards

Inserting the SD card

NOTE
A microSD card is already installed at the time of purchase.
You can immediately start recording and playing tracks
without the need to remove and insert the microSD card.
1. Open the microSD card slot cover on the right side panel.
2. Insert the microSD Card into the slot (as illustrated below)
until it clicks into place.

Removing the card

1. Open the microSD card slot cover.
2. Gently press and release the microSD card; the card should
pop out.
CAUTION
• Do not remove the microSD card while the unit is accessing
data for recording, playback, etc.
• Do not remove the microSD card from the unit when
connected via USB cable to a computer.
• The DR-22WL is compatible with microSD/microSDHC/
microSDXC standards.
• Please refer to the TEAC Global Site (http://teac-global.
com) to learn more on the list of compatible SD cards.
12
TASCAM DR-22WL

Setup the microSD card for use

To use a microSD card, it must be formatted first by the
DR-22WL.
1. Confirm that a microSD card is inserted and turn the power
on.
2. The following message appears when a new card or a card
formatted by another device is inserted into the unit.
micro SD/SDHC card
micro SDXC card
3. Press the F4
button to start formatting.
CAUTION
Formatting will delete all data from the card.
4. When formatting is complete, it will return to the home
screen. You may format the card whenever required.
CAUTION
Before formatting, make sure the unit is connected to
either a dedicated AC adapter (TASCAM PS-P515U; sold
separately), a computer via USB bus power, or fully-charged
batteries.

Turning the built-in speaker on/off

The factory setting for the built-in speaker output is selected as
ON. To turn the built-in speaker output off, set the
item to on the menu page.
OFF TOOL
1. Press the /MENU/8 button to display the menu screen.
2. Use the F1
button to display the
3. Use the F2 and F3 buttons to select (highlight) the
item and press the F4

SPEAKER

This shows the
SPEAKER
4. Use the F2 and F3
buttons to change settings, and
press the F4
button to finalize the setting.
Options: , (default setting)
OFF ON
SPEAKER
page.
TOOL
button.
item parameters.
