SPRINT
Aerobatic Sport / Trainer Jet for 12 to 22 Lb. Thrust turbines
Almost ready to fly. Speed range from 18 to 150 MPH.

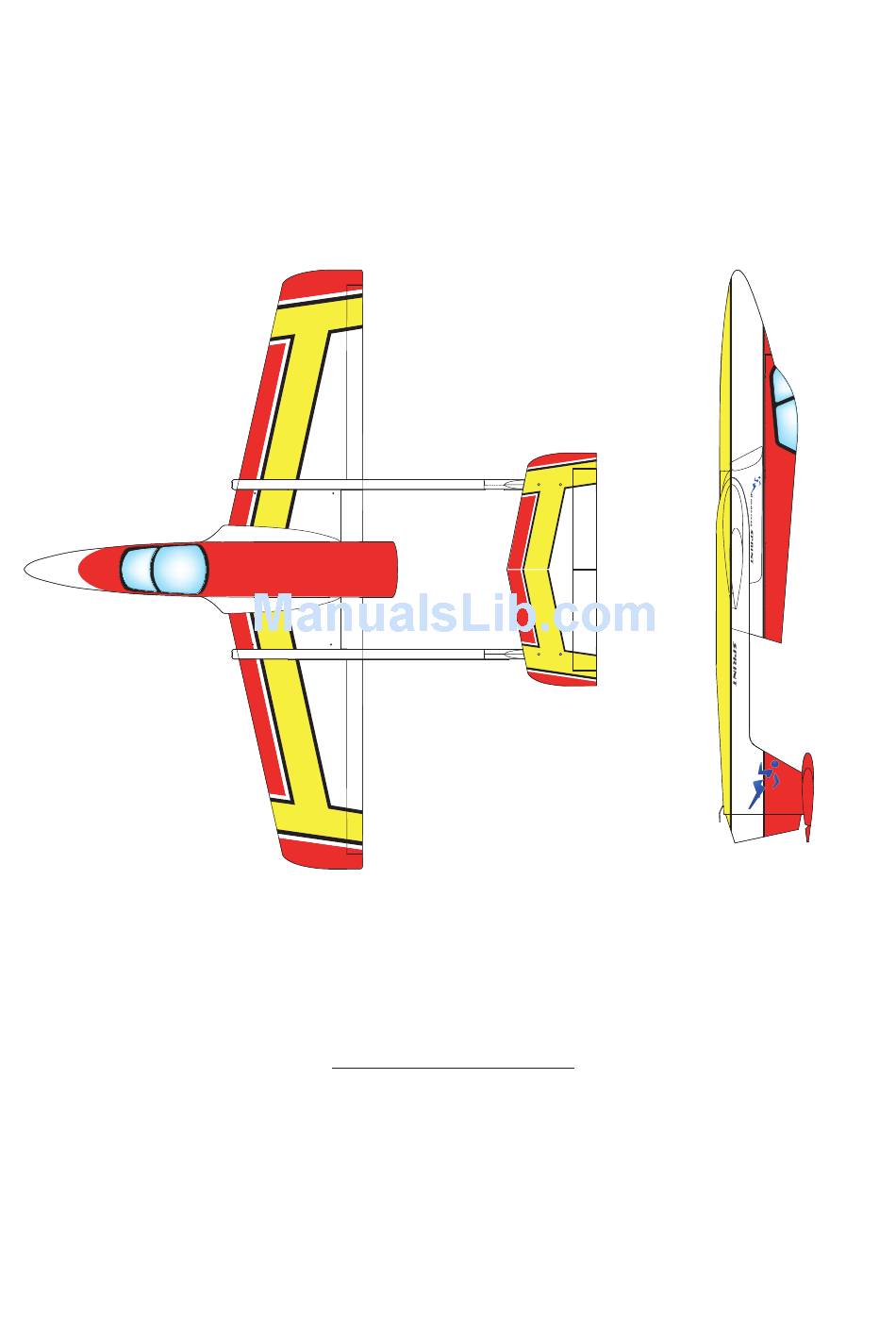

Wingspan........ 75.5" (1920mm)
Length............. 73" (1850 mm)
Weight 14lb.( 6.35kg ) Dry.
Radio....... 5 to 7 Channels.
The SPRINT turbine model is designed for experienced modellers. This model is not
recommended for beginners to R/C flying and should not be attempted by those with insuf-
ficient building and flying experience. This manual is for guidance only. If you are unsure of
any model building techniques, seek help from an experienced model builder or contact
Boomerang RC Jets LLC. for assistance. Jet models are dangerous if construction
is carelessly or incorrectly carried out. As the building assembly of this kit is out of our
control after point of sale, no liability is accepted by Boomerang RC Jets LLC. for any
accident or loss, however caused. Purchase of this kit implies acceptance of these condi-
tions by the purchaser. To decline these terms, return the unused kit to your supplier for full
refund.
Boomerang
SAFETY PRECAUTIONS
Designer Alan Cardash
Boomerang RC Jets, LLC.
Website www.boomerang-RC-jets.com
