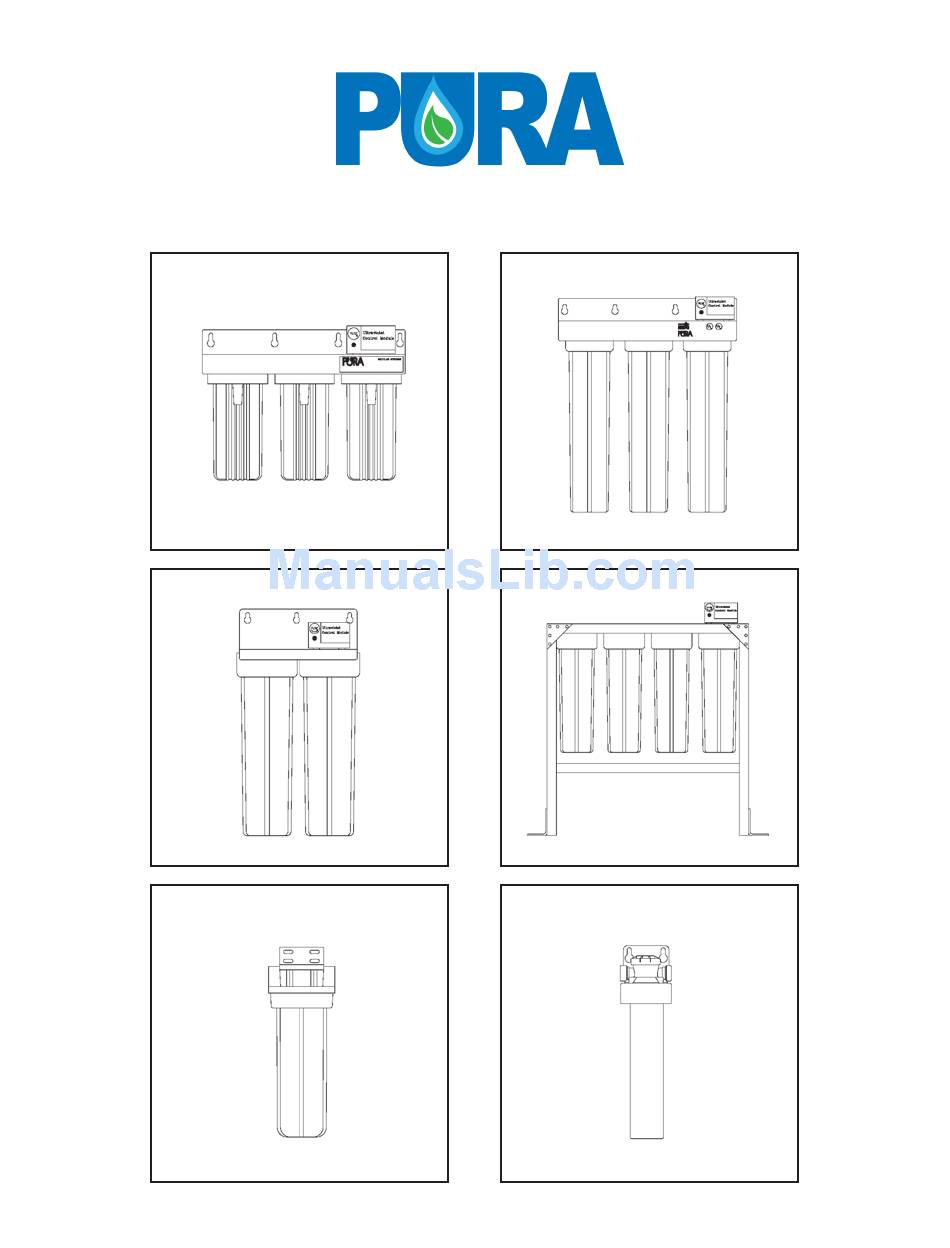

- Page 1 INSTALLATION MANUAL & OWNER’S GUIDE ULTRAVIOLET WATER TREATMENT SYSTEMS UVB SERIES UV20 SERIES UVBB SERIES RACK SYSTEM UV1 SERIES ADDON SERIES Revision #: 1 Date: July 2015 36103017...
-
Page 3: Table Of Contents
TABLE OF CONTENTS INTRODUCTION DESCRIPTIONS AND DEFINITIONS ____________________________________________________ CONDITIONS FOR USE ______________________________________________________________ ROUTINE MAINTENANCE ____________________________________________________________ SPECIFICATIONS ___________________________________________________________________ INSTALLATION MOUNTING BRACKET AND PLUMBING _________________________________________________ UVB SERIES INSTALL CONTROL MODULE _________________________________________________________ INSTALL QUARTZ SLEEVE AND DISINFECT SYSTEM _____________________________________ INSTALL ULTRAVIOLET LIGHT AND FILTERS _____________________________________________ ACTIVATE SYSTEM __________________________________________________________________ SERVICE REQUIREMENTS AND RECOMMENDED INTERVALS ______________________________ PARTS ILLUSTRATION _______________________________________________________________... -
Page 4: Introduction Descriptions And Definitions
You have purchased one of the most technologically advanced Ultraviolet Water Treatment System available anywhere in the world. It has been designed with you, the consumer, in mind. PURA ® products are lightweight, easy to use, and simple to maintain. PURA products will provide you with healthy, clean drinking water for years to come. WHAT IS ULTRAVIOLET? -
Page 5: Routine Maintenance
Dry the inside of the quartz sleeve changed. thoroughly before re-assembling system. Use only PURA filters. PURA filters are specially designed to work in the ultraviolet disinfection process. Use of non-PURA filters voids NOTE: Presence of iron or general poor water quality will require frequent inspection and cleaning. - Page 6 This Guide covers installation and maintenance of a basic “generic” system. Installer determines configuration of each system and must adapt these instructions to meet the specific requirements for that configuration. Specific component and assembly information is provided only for components that are unique to PURA systems. All inter-component connections use standard plumbing components and tools. INSTALL MOUNTING BRACKET...
-
Page 7: Uvb Series
UVB SERIES - SYSTEM ASSEMBLY AND ACTIVATION PROCEDURES PREPARATION – INSPECT ALL PARTS INSTALL QUARTZ SLEEVE AND DISINFECT SYSTEM NOTE: Read Mounting Bracket and System Plumbing Check page 20 for pictures of Quartz Sleeve. Installation instructions on Page 1 and all instructions on this page before installing system. - Page 8 The UVB control module installation kit includes: ACTIVATE SYSTEM a. Control Module – Qty 1 b. Screws , 6/32 X 3/8” (Part# 32701063) - Qty 4 CAUTION: Verify that inlet and outlet ports are connected to c. Washer, Lock , #8 (Part# 12288) - Qty 1 appropriate inlet/outlet pipes (see Figure 1).
- Page 9 Figure 1 Exploded Schematic, PURA UVB Series Parts List - UVB Series Item Description Part No. Item Description Part No. Item Description Part No. Sump, #10 (“O” Ring, Sump #10/20 Fuse, 1A Type 3AG 31000006 Spacer, Bushing #10/20 22401016 92502...
-
Page 10: Install Quartz Sleeve And Disinfect System
UV20 SERIES - SYSTEM ASSEMBLY AND ACTIVATION PROCEDURES PREPARATION – INSPECT ALL PARTS INSTALL QUARTZ SLEEVE AND DISINFECT SYSTEM NOTE: Read Mounting Bracket and System Plumbing Check page 20 for pictures of Quartz Sleeve. Installation instructions on Page 1 and all instructions on this page before installing system. - Page 11 The UV20 control module installation kit includes: ACTIVATE SYSTEM a. Control Module – Qty 1 b. Screws , 6/32 X 3/8” (Part# 32701063) - Qty 4 CAUTION: Verify that inlet and outlet ports are connected to c. Washer, Lock , #8 (Part# 12288) - Qty 1 appropriate inlet/outlet pipes (see Figure 2).
- Page 12 Figure 2 Exploded Schematic, PURA UV20 Series Parts List - UV20 Series Item Description Part No. Item Description Part No. Item Description Part No. Housing, UV, Sump, #20 Indicator, LED ----- Sleeve Quartz #20, with “O” Rings 36003035 92504 (“O” Ring, Head UV #10/20)
-
Page 13: Install Quartz Sleeve And Disinfect System
UVBB SERIES - SYSTEM ASSEMBLY AND ACTIVATION PROCEDURES PREPARATION – INSPECT ALL PARTS CAUTION: Apply even pressure to push the quartz sleeve into Quartz Adapter Sleeve (Item 4). To avoid breakage, NOTE: Read Mounting Bracket and System Plumbing make sure quartz sleeve goes in straight by pushing it Installation instructions on Page 1 and all instructions with a slight twisting motion. - Page 14 ACTIVATE SYSTEM 2. Turn on water supply and check for leaks. CAUTION: Verify that inlet and outlet ports are connected to 3. Flush system, connectors, and water lines for several minutes to remove carbon fines. appropriate inlet/outlet pipes (see Figure 3). 1.
- Page 15 Figure 3 Exploded Schematic, PURA UVBB Series Parts List - UVBB Series Item Description Part No. Item Description Part No. Item Description Part No. Sump, UV #20 BB (“O” Ring, Sump Mounting Bracket, 2 Sump BB 31910202 Lamp, UV #20...
-
Page 16: Rack System
Figures 5 and 6 provide examples of configurations Procedures on Pages 8-9 before assembling Rack NOTE: System that may be applied to your PURA system. These configurations are not intended as a representation of a specific system to be installed. Parts List - UVBB Series... - Page 17 SYSTEM OUTPUT RATING LPM/GPM CONFIGURATION: SERIES SERIES TO PARALLEL PARALLEL PARALLEL TO SERIES MODULE #1 TYPE PURA PART NUMBER: MODULE #2 TYPE PURA PART NUMBER: MODULE #3 TYPE PURA PART NUMBER: MODULE #4 TYPE PURA PART NUMBER:...
-
Page 18: Install Ultraviolet Light And Filters
UV1 SERIES - SYSTEM ASSEMBLY AND ACTIVATION PROCEDURES PREPARATION – INSPECT ALL PARTS 5. Loosen Screw (Item 9) securing slotted side of UV Lamp Retainer NOTE: Read Mounting Bracket and System Plumbing (Item 7). Remove the other screw securing the UV lamp retainer Installation instructions on Page 1 and all instructions to UV head. -
Page 19: Parts List
Figure 7 Exploded Schematic, PURA UV1 Series Parts List - UV1 Series Item Description Part No. Item Description Part No. Item Description Part No. Housing, UV1, Pura* 92500-1 Retainer, UV Lamp UV1 31910408 Cap, Finish, c/w Control ----- “O” Ring, UV1, Pura... -
Page 20: Addon Series
ADDON SERIES - SYSTEM ASSEMBLY AND ACTIVATION PROCEDURES PREPARATION – INSPECT ALL PARTS DISINFECT SYSTEM NOTE: Read Mounting Bracket and System Plumbing CAUTION: TIGHTEN COLLAR BY HAND ONLY. Do not use tools Installation instructions on Page 1 and all instructions as they will over-tighten and may damage sump. -
Page 21: Activate System
ADDON SERIES - SYSTEM ASSEMBLY AND ACTIVATION PROCEDURES Cont’d INSTALL TUBING cont’d ACTIVATE SYSTEM QUICK CONNECT FITTINGS CAUTION: Verify that inlet and outlet ports are connected to appropriate inlet/outlet pipes (see Figure 8). Fittings consist of two parts: a Body and a collet. WARNING: NEVER LOOK DIRECTLY AT A LIGHTED UV LAMP. -
Page 22: Parts List
Figure 9 Exploded Schematic PURA ADDON System Parts List - UV ADDON Item Description Part No. Item Description Part No. Item Description Part No. Sump, 1gpm Addon 31910007 Mounting Bracket, Addon 31910401 Sleeve, Quartz #11 with “O” Rings 36003034 Sump, 3gpm Addon 31910006 Screw, #10 x 3/4”... - Page 23 CLEANING, DISINFECTING, AND ROUTINE MAINTENANCE PROCEDURE RECOMMENDATIONS HAVE ALL COMPONENTS ON HAND AND READY BEFORE BEGINNING PROCEDURE A CLEAN WORK AREA AND EQUIPMENT ARE ESSENTIAL TO PROPERLY CLEAN AND/OR DISINFECT THE SYSTEM (i.e., CLEAN HANDS, TOOLS, WORK SURFACE, AND CONTAINERS) EQUIPMENT NEEDED Safety Glasses Liquid Dish Soap...
-
Page 24: Filter Replacement
CLEANING, DISINFECTING, AND ROUTINE MAINTENANCE PROCEDURE Cont’d Do not attempt to remove sumps until water flow 4. Slowly open the feed water supply valve. CAUTION: stops. This reduces pressure inside the system so 5. Open all downstream faucets. Keep faucets open until a chlorine sumps may be safely removed. -
Page 25: Install Quartz Sleeve
INSTALL QUARTZ SLEEVE CAUTION: Apply even pressure to push the quartz sleeve into the UV head. To avoid breakage, make sure quartz sleeve CAUTION: QUARTZ SLEEVE IS VERY FRAGILE! goes in straight by pushing it with a slight twisting motion. For safety, wear a protective glove when handling quartz sleeve. - Page 26 PURA specifications. If the drinking water system is modified by anyone other than an authorized PURA dealer, the warranty shall be void.
