Godox EZb Instruction Manual

Godox EZb Instruction Manual

Digital timer remote

Advertisement

Quick Links

GODOX Photo Equipment Co.,Ltd
82.A000EZB0-00

Advertisement

loading
Need help?

Need help?

Do you have a question about the EZb and is the answer not in the manual?

Questions and answers

Summary of Contents for Godox EZb

  • Page 1 GODOX Photo Equipment Co.,Ltd 82.A000EZB0-00...
  • Page 6 锁定功能使用 EZb 的所有按钮和拨盘失效,以防止在模式设定后无意中改变了设置。该功能 还可以防止〈 〉 按钮意外地中断已经启动的操作。按下并保持〈 〉按钮至少三秒钟,直 至 指示器出现。要取消该功能,按下并操持〈 〉按钮至少三秒钟,直至指示器熄灭。...

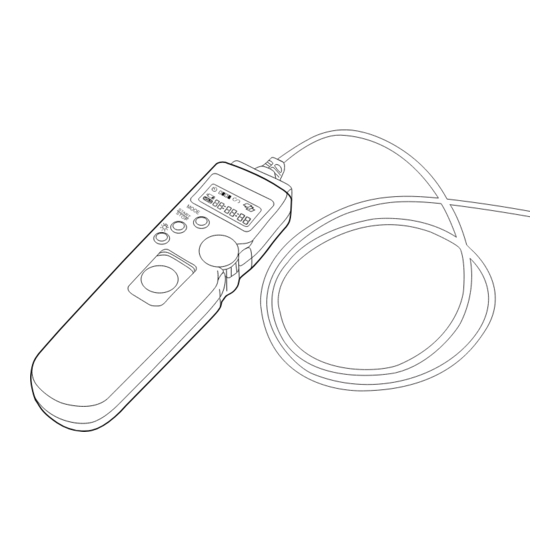

  • Page 10 Timer Remote Controller EZb is a remote switch with the following timer control and exposure count control functions. It is very useful for time-lapse photography of blooming flowers, astrophotography ,etc. (1)Self-timer (2)Interval timer(3)Long exposure timer (4)Exposure count control (5)Remote switch function Connectable to the camera ’s quick-look remote control socket.
  • Page 11: Installing The Battery

    About the LCD Panel ..............2 Hold Function ................. . 10 Nomenclature .
  • Page 12 The EZb uses one lithium CR2032 battery. To prevent camera misoperation, disconnect the EZb from the camera before installing the battery. 1. Use the tip of a ball-point pen or similar instrument to press the battery compartment button. Then open the battery compartment cover as showm in the figure.
  • Page 13 1. Remove the camera ’s remote conrtol socket cover. Put the remote control socket cover into the EZb ’s remote control socket holder. 2. Insert the EZb ’s plug into the camera ’s remote control socket.
  • Page 14 2. After selecting the time unit (blinking digits),slide the〈 〉dial to set the desired time for that time nuit. The time can be set from 1 sec, For example, follow steps below to set the time to 1 hour,2minutes,and 30 sec. To illuminate the dispaly panel,press the〈...
  • Page 15 The Hold function disables all the EZb buttons(except〈 〉)and dial to ptevent any inadvertent alteration of the settings after the mode is set. It also prevents the 〈 〉button from accidentally stopping an operation that has strarted. Press adn hold down the〈...
  • Page 17 If only the number of exposures is set and the〈 〉button is pressed, the number of exposures will be taken at one-second intervals. When the number of exposures is set in combination with s timer mode, the result will be as described below . For details, see page 33. : In the self-timer delay, the set number of exposures will be taken at one-second intervals.
  • Page 18 The set number of exposures is taken at the set intervals. For long exposures or continuous shooting, press the release button completely and slide it in the direction of the arrow. This locks the button in the pressed position. To release the pressed button, slide the button back to its original position.
  • Page 19 appears when the〈 〉button is press for 3 sec.This disables all other buttons and dial. The Hold function is canceled by pressing the 〈 〉button for 3 sec again. Approx. 3 years. Exhausted battery indicated by a blinking battery-low icon on the display panel. Subject to change without notice.
