3 installing S3 R

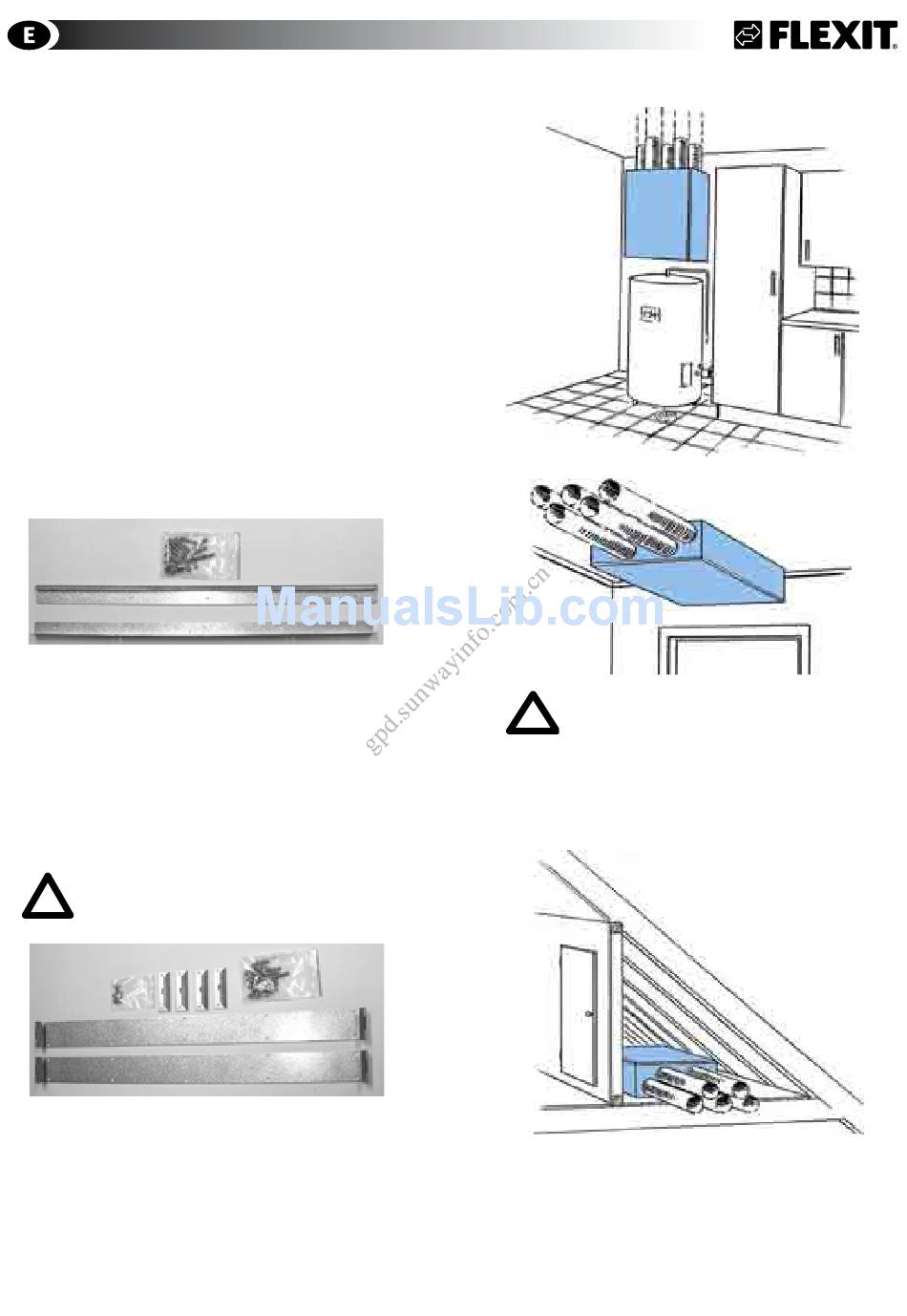

3.1 location

Mounting brackets and suspension have several
mounting holes to enable securing the unit to two
pillars. If this is not possible, consider using additional
studs (transoms).
Wall Mounted (3A)
The enclosed wall bracket is used for wall mounting
(Fig. 3B). (The wall must be sound insulated to prevent
sound penetration).
• The wall bracket (Fig. 3B) is screwed to the wall with
the enclosed screws.
• The unit is suspended from the rail.
• Fix the unit at the bottom with the enclosed
mounting bracket
The wall must be sound insulated to prevent noise
transfer. The unit shuld be palced against a wall which
does not have a sound sencitive adjoining room.
Fig. 3B
Ceiling Mounted (4A)
The enclosed ceiling brackets are used for ceiling
mounting (Fig. 6B).
• Attach the 4 small brackets to the unit in the
prefitted blind nuts with the 8 enclosed screws with
countersunk heads.
• Fit the suspension rails to the ceiling with the
enclosed screws.
• Lift the unit into place. The brackets on the unit
must lock into the ceiling-mounted rails.
the mounting hole furthest out (2 on each
side) must be fixed to joists or a concrete
ceiling. Use at least 8 screws
Fig. 4B
S3 R
FOR CeiliNG-MOUNteD UNitS:
!
Be careful with the doors when open-
ing the unit. they open suddenly when
the last screw is removed. take care as
well when removing components. Hold
them when you remove the last screw
to avoid objects falling down. the rotor
requires extra care on account of its
weight.
Horizontal mounting (Fig. 3) in the loft requires no
brackets. The unit should not be placed directly above
bedrooms on account of noise. Install it on a firm base
(gypsum/chipboard) that is level. Place the panel on
a very firm panel of mineral wool if additional sound
absorption is required (Fig2/Section. 2).
6
Fig. 3A
Fig. 4A
Fig. 6 A
Fig. 5
