CARBURETOR

FLOAT CHAMBER LEVEL

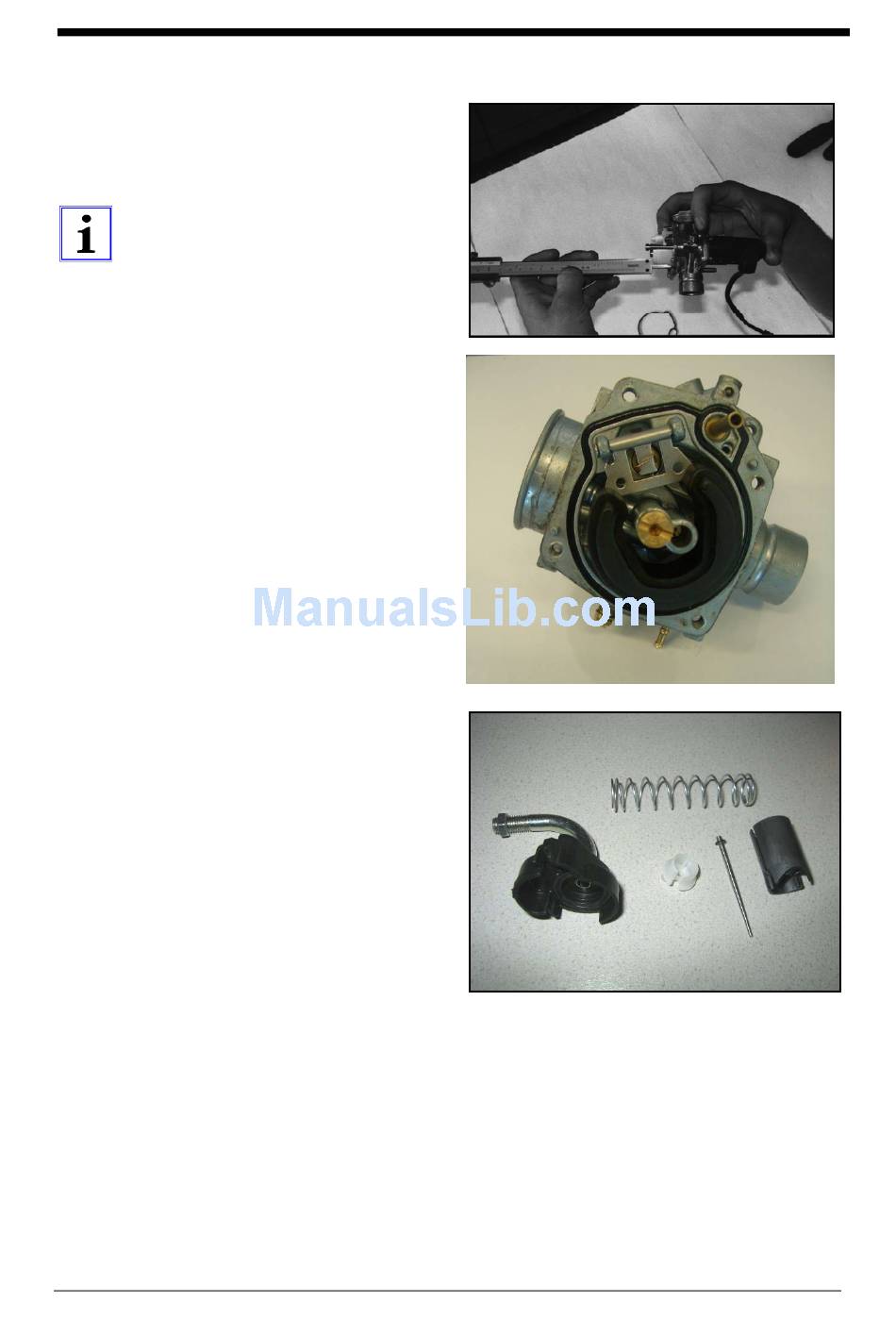

Measure the float chamber with a caliper.
Desired value: 18.5 mm
Note that the float is entirely made of
plastic. In case of any defects in this part,
the float shall be replaced.
Use a new sealing ring prior to mounting the float
chamber cover.
Mount the float chamber cover to the carburetor
body.
Fasten the choke cable and put in the throttle
control cable.
Check the oil and the fuel line, the overflow tube
and the heating cable for damage and aging.
Connect all lines to the carburetor.
Adjust the throttle control cable.
Adjust the free play of the throttle control cable.

SLIDE VALVE

Disassembly
Release the screws in the carburetor cover.
Press the spring into the cover and remove the
securing plastic stopper from the slide valve.
Then unhook the control cable from the slide
valve. Remove the jet needle with the retaining
clip.
Check the spring, the slide valve, and the plastic
stopper for wear and the jet needle for deformation.
Check the needle jet for clogging.
Remove deposits and clogging by means of
compressed air.
FL-7
