Quik Wiring Diagram

Quik Wiring Diagram
Power Supply
10-12V AC
12-15V DC
NB: Wire Link
must be fitted if
Door Sense
Facility is not
being used.

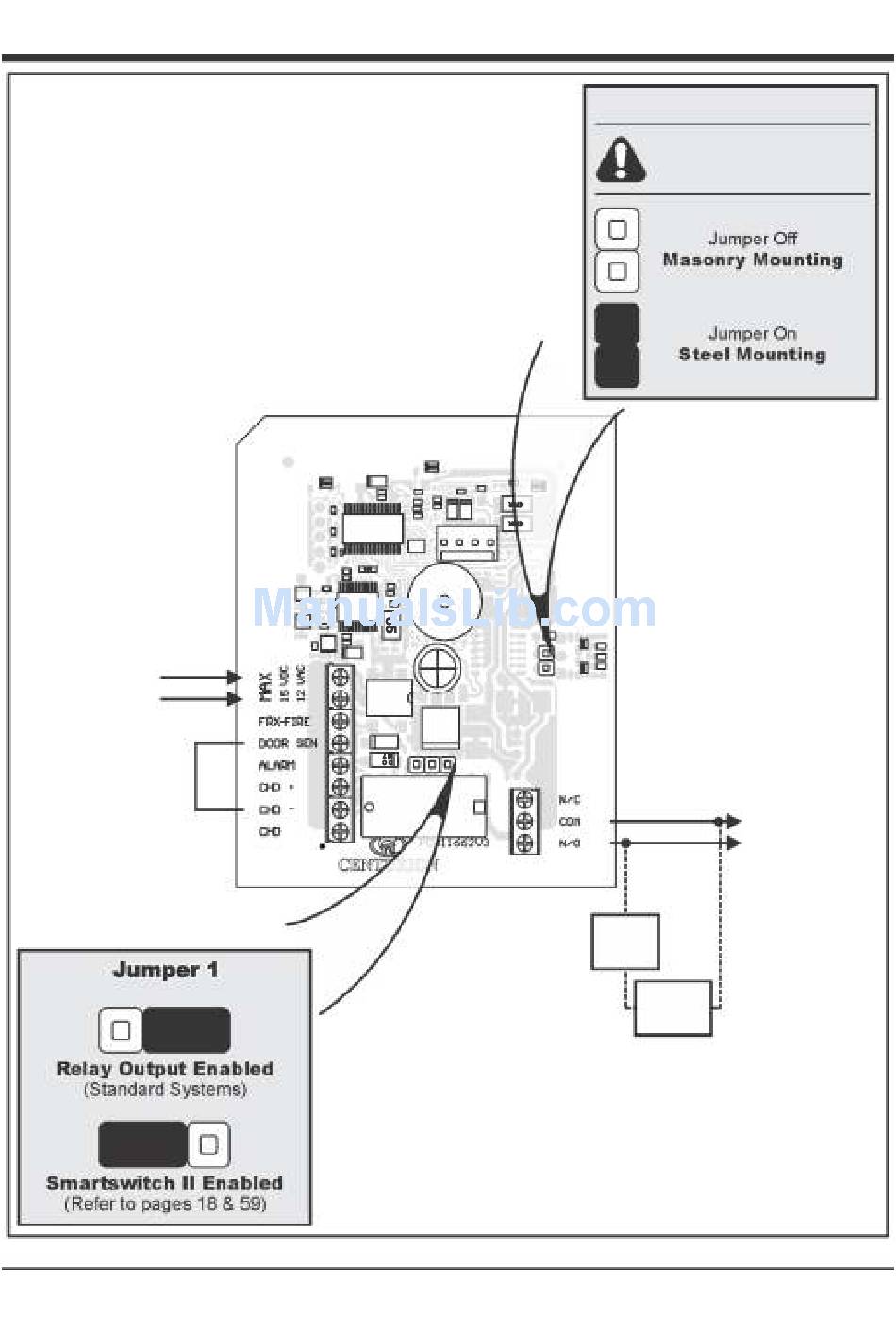

Fig 1. Quik Wiring Diagram
D C
M 7
Jumper 1 Jumper 1
Alternatively
Typical
Connection
for Door Lock
Page 8
Jumper 2 Jumper 2
Read range will be
affected if not correctly set
Jumper 2 Jumper 2
Door
Strike
PSU for
Strike
Typical
Potential
Free Contact
to operate
Gate Motor or
Traffic Barrier.
