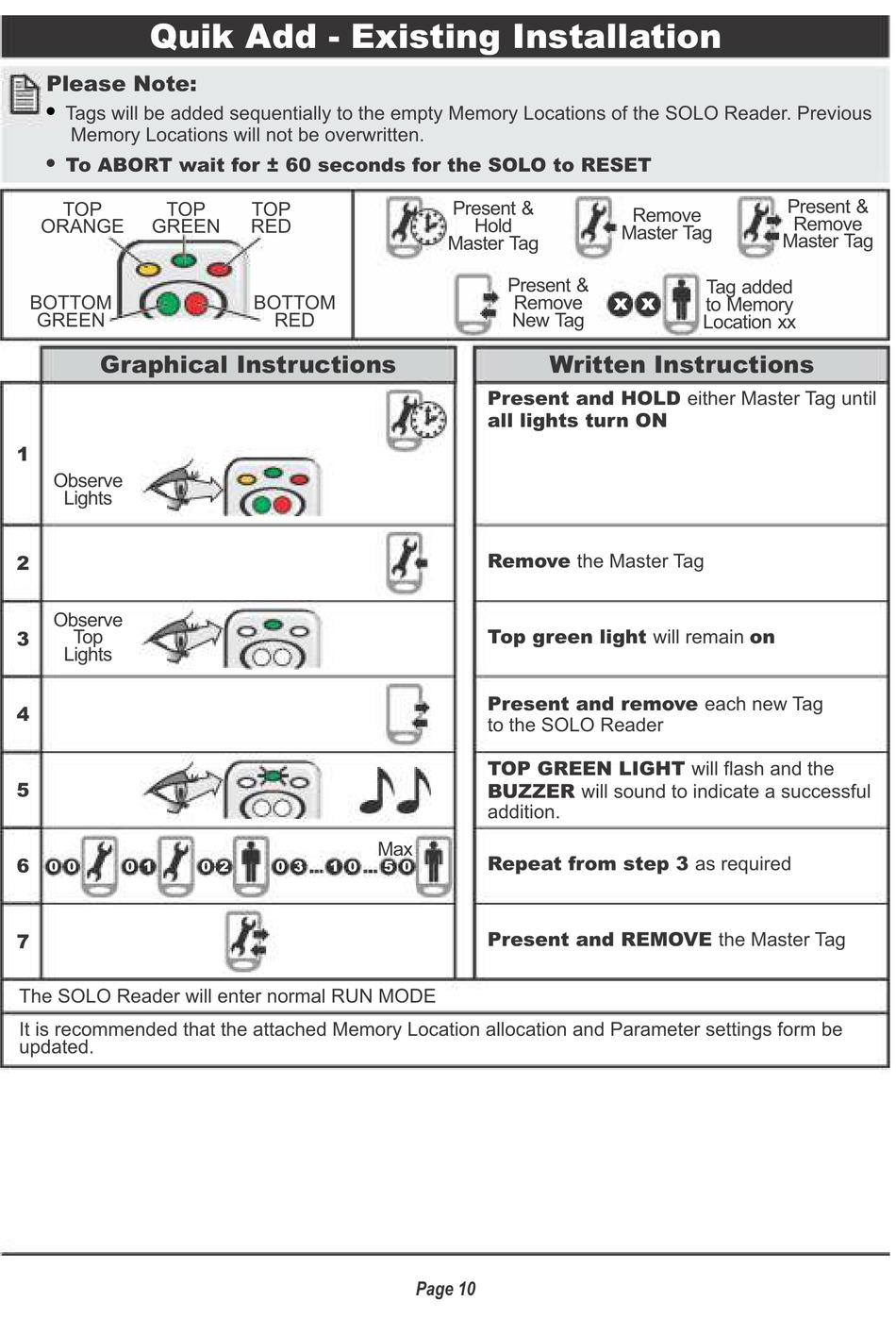

Quik Add - Existing Installation
Please Note:

Tags will be added sequentially to the empty Memory Locations of the SOLO Reader. Previous
Memory Locations will not be overwritten.

To ABORT wait for ± 60 seconds for the SOLO to RESET
TOP TOP
ORANGE GREEN
BOTTOM
GREEN
Graphical Instructions
1
Observe
Lights
2
Observe
Top
3
Lights
4
5
6
0 0 0 1
7
The SOLO Reader will enter normal RUN MODE
It is recommended that the attached Memory Location allocation and Parameter settings form be
updated.
TOP
RED
BOTTOM
RED
0 2 0 3 1 0
Present &
Hold
Master Tag
Present &
Remove
New Tag
Present and HOLD either Master Tag until
all lights turn ON
Remove the Master Tag
Top green light will remain on
Present and remove each new Tag
to the SOLO Reader
TOP GREEN LIGHT will flash and the
BUZZER will sound to indicate a successful
addition.
Max
Repeat from step 3 as required
5 0
Present and REMOVE the Master Tag
Page 10
Remove
Master Tag
Tag added
x x
to Memory
Location xx
Written Instructions
Present &
Remove
Master Tag
