Summary of Contents for Coloronix COLORTAINMENT

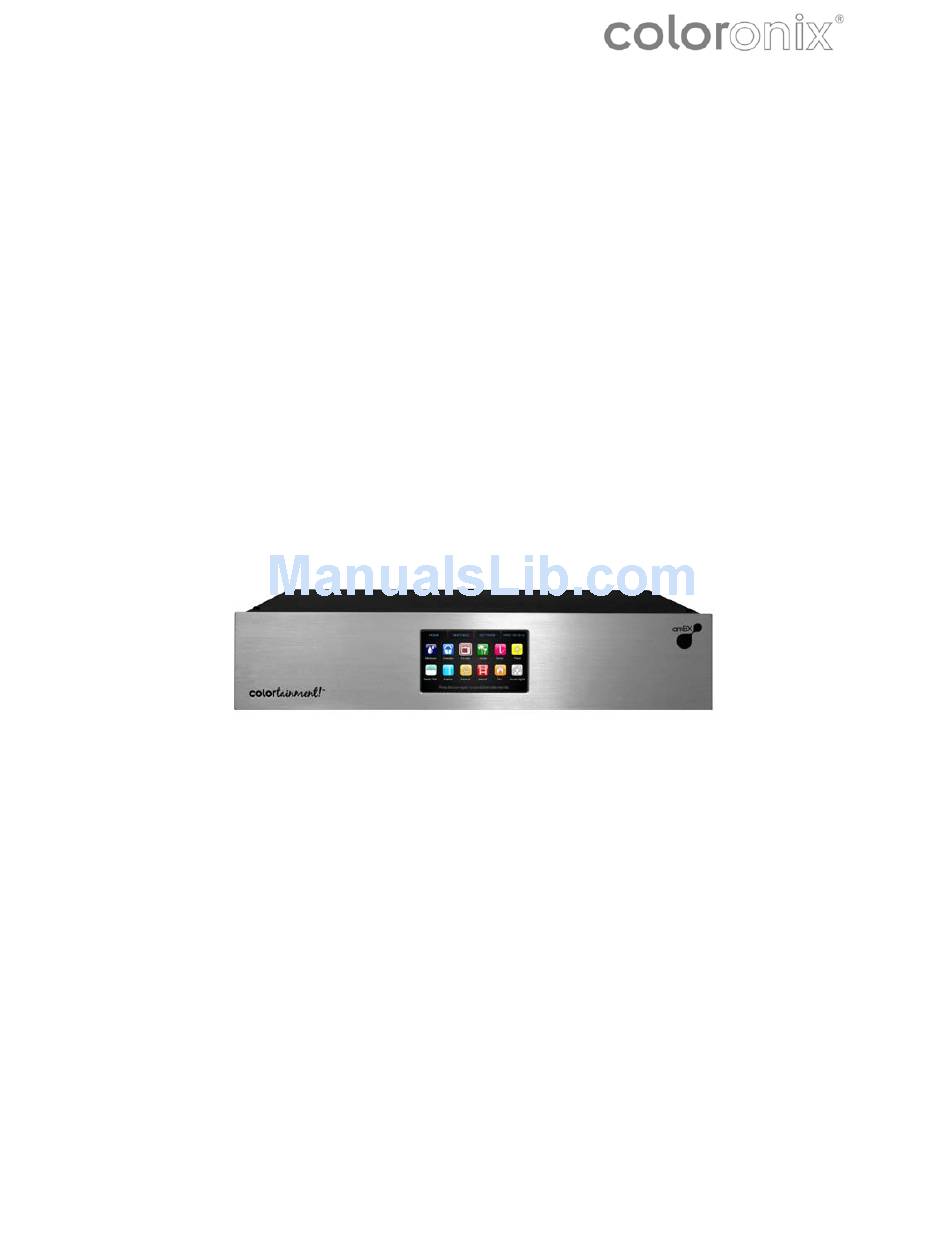

- Page 1 COLORONIX COLORTAINMENT! CONTROLLER Page 1—Coloronix Colortainment! Controller V1.0...
-
Page 2: Table Of Contents
Using the Home Screen 9 The Timetable 10 The Settings Screen 11 Changing Light Settings 11 The Current Time Screen 12 Changing the Day and Time 12 Troubleshooting 13 Other Information 13 Disclaimer 13 Warranty 13 Copyright 13 Page 2—Coloronix Colortainment! Controller V1.0... -
Page 3: Welcome
The Colortainment! Controller is powered by Color Ray technology which is the new standard in the creation and delivery of immersive entertainment experiences. You will be amazed by the stunning array of Color Ray lighting effects that change your space into an entertainment venue. -
Page 4: Safety Instructions
If the Colortainment! Controller is installed in a rack ensure that adequate space is maintained between the Colortainment! Controller and other items in the rack. It is suggested that 1U is left between the Colortainment! Controller and units above and below. - Page 5 The blue wire must be connected to the terminal, which is marked with the letter N or colored black. The brown wire must be connected to the terminal which is marked with the letter L or colored red. Page 5—Coloronix Colortainment! Controller V1.0...
-
Page 6: Specifications
Dry Location, IP20 Up to 12 Color Ray Modes Default or installer Scheduler customized selection Weekly by Hour Scheduling One touch Override of Color Ray Modes Instantly override any timetable with a fixed Color Ray Mode Page 6—Coloronix Colortainment! Controller V1.0... -
Page 7: Front And Back Panel
For PC connection and use with PC based Color Ray applications. Industry standard interface and connection to LED lighting installations. Single DMX 512 universe supported with 5 pin XLR connector. Power 100 - 240V AC, 50-60Hz, 20W Page 7—Coloronix Colortainment! Controller V1.0... -
Page 8: Turning On The Unit
Turning on the Unit Check that the power lead is connected to the Colortainment! Controller and turn on at the wall socket. This powers up the your Colortainment! Controller. When start up is complete, the HOME screen will be displayed. -
Page 9: The Home Screen
To deselect the Color Ray Mode touch the icon again and it will no longer be highlighted. When no Color Ray Mode is selected, the Colortainment! Controller will return to playing the timetabled effects. -
Page 10: The Timetable
To view another day of the week select the ‘Previous’ button to view the previous day or select the ‘Next’ button to view the next day. Touch the ‘back button’ to return to the TIMETABLE window. Page 10—Coloronix Colortainment! Controller V1.0... -
Page 11: The Settings Screen
Slide the ‘Transition Slider’ towards the left to reduce the speed, and towards the right to increase the speed. You can choose through slow, medium and fast. Page 11—Coloronix Colortainment! Controller V1.0... -
Page 12: The Current Time Screen
The Current Time Screen The DAY/TIME screen allows you to alter the current day and time. The time is used by the Colortainment! Controller for the 7-day scheduler and daily systems check. The options can be easily navigated through by using the ‘Previous’ and ‘Next’ buttons. -
Page 13: Troubleshooting
If you are experiencing difficulties please verify that the Colortainment! Controller has power and is correctly connected by following the instructions in the Quick Start Guide or this User Guide. If the Colortainment! Controller still does not operate as expected, please contact your installer.
