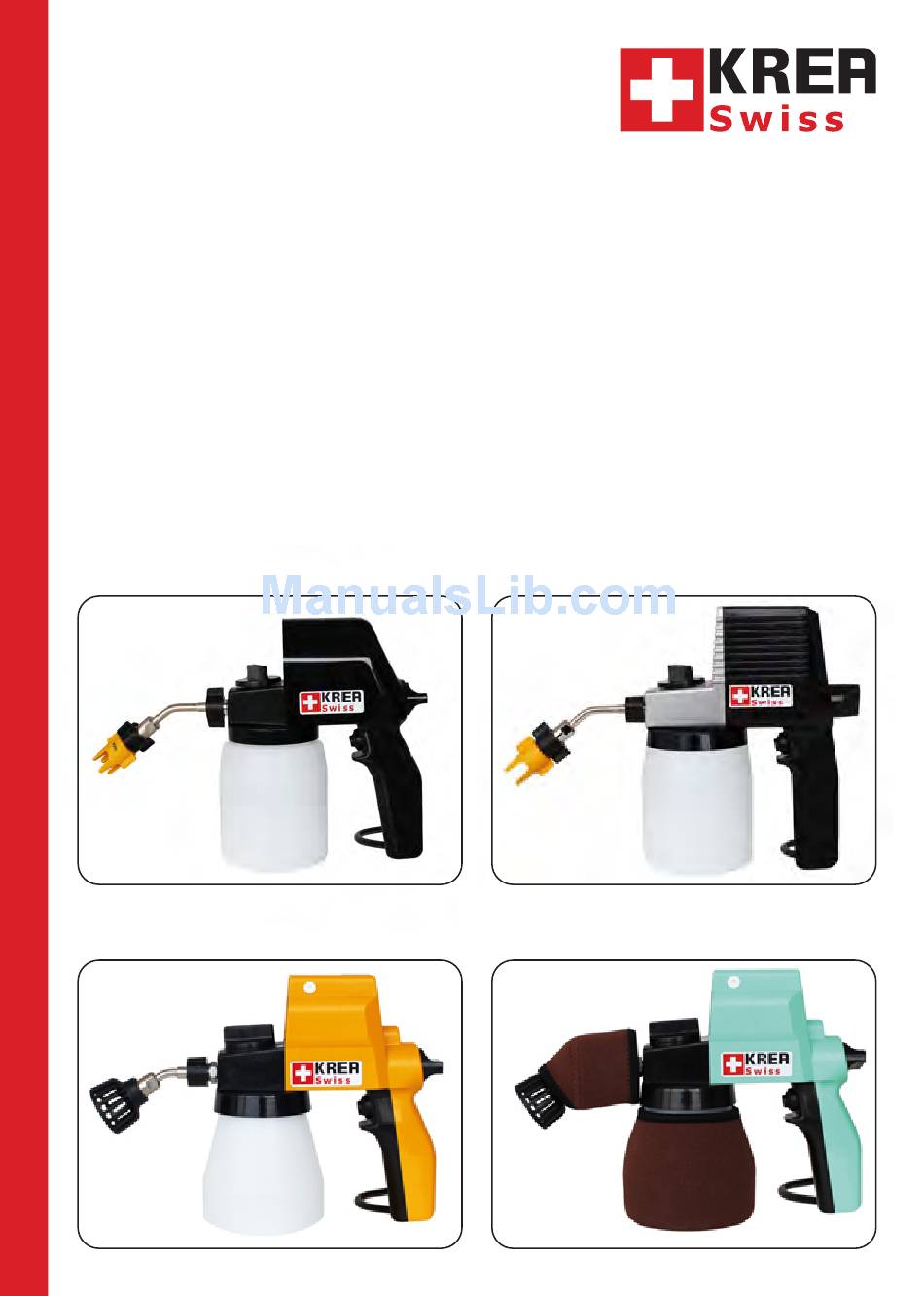

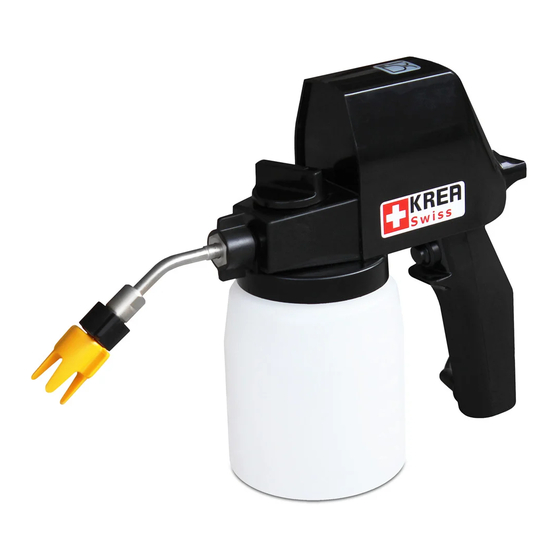

- Page 1 The emergency trouble shooting guide multiSPRAY volumeSPRAY oilSPRAY hotCHOC...
- Page 3 Below you will find simple & basic steps that often resolve the problem easily. For better understanding see “product explosion diagram” below or in your manual. THE SPRAY GUN PROFILE CLEANING Parts that can be cleaned in the dish-washer (on the left): Please separate the electrics and washing all in the dishwasher at 150F+ (except the ball (6) and atomiser insert (7)) - then reassemble and try spraying.
- Page 4 SIMPLE & BASIC TROUBLE SHOOTING STEPS: • Is the container at least half full and screwed on tightly? • Is the atomiser insert (7) present? If it has been lost during cleaning, you will need to order a spare. • Does the ball rattle (6) when shaken? If not, follow the steps to remove and reinsert - page 2 of the guide.
- Page 5 • You are seeing drips from the nozzle or extension: Please ensure you have tightened the nozzle extension, and if necessary, use a wet towel to help with grip. This is particularity important when spraying low viscosity materials like water. If the issue persists, please check that there are no blockages.
- Page 6 • Is the service screw correctly aligned on tight? (if misaligned, the piston cannot function). • Do you experience the same effect with both different nozzles? Please try spraying. If one is not working, it may be blocked - hot water will help. •...
- Page 7 STILL NOT WORKING?! Should the problem persist, please describe to us what you were you doing just before it stopped working (e.g. just cleaned it, changed materials etc). The more information you provide, the easier we are able to troubleshoot. Please confirm the below: •...
- Page 8 STILL NOT WORKING?! hotCHOC specific: In addition to the standard trouble shooting questions, please provide as much information as possible but at least answer the below: • Describe the type of material being sprayed. - Are you mixing in other ingredients such as honey? - What is the percentage cocoa butter / chocolate? - Which temperature is the material when spraying? •...
- Page 9 Spare parts and accessories: multiSPRAY Pos. Art. Nº. 11-501-045 Hood 09-004-004 Service screw 11-004-014 Piston 11-004-013 Piston spring 11-504-023 Pump housing 09-004-014 Valve ball 09-005-000 Atomiser insert 09-008-015 Nozzle extension 09-490-006 Round nozzle R6 06-001-027 Suction tube 09-490-012 Container & lid...
- Page 10 Spare parts and accessories: volumeSPRAY Pos. Art. Nº. 09-501-011 Hood 09-004-004 Service screw 09-004-026 Piston 09-004-013 Piston spring 09-504-038 Pump housing 09-004-022 Valve ball 09-005-000 Atomiser insert 09-008-015 Nozzle extension 09-490-006 Round nozzle R6 06-001-027 Suction tube 09-490-012 Container & lid 09-490-004 Round nozzle R4 09-490-008...
- Page 11 Spare parts and accessories: oilSPRAY Pos. Art. Nº. 12-000-010 Hood 09-004-004 Service screw 12-004-010 Piston 12-004-013 Piston spring 12-004-005 Pump housing 12-005-003 Adapter 12-507-010 Atomiser unit 12-508-220 Nozzle extension 09-490-004 Round nozzle R4 12-005-021 Suction tube 12-000-016 Container & lid...
- Page 12 12-508-201 Container insulation sleeve 12-508-200 Nozzle insulation sleeve Distributor Nozzle heating unit KREA Swiss AG I Hauptstrasse 137C CH 8274 Tägerwilen I Tel.: +41 (0)71 686 60 40 I Fax: +41 (0)71 686 60 43 E-Mail: info@KreaSwiss.com I Web: www.KreaSwiss.com...
