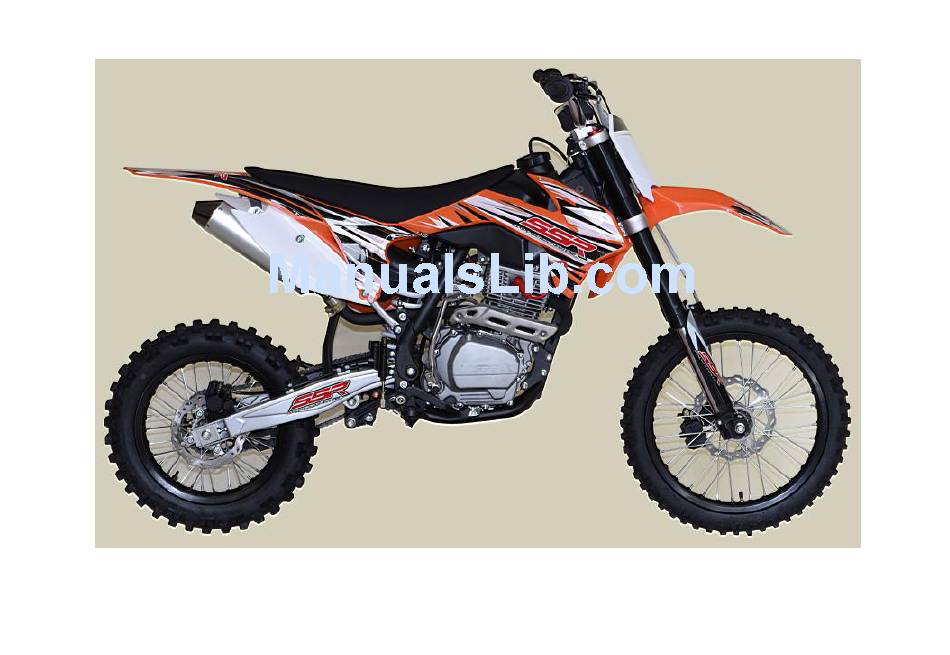

DIRT BIKE OWNERS MANUAL SSR189
SSR USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 189 and is the answer not in the manual?

Questions and answers

Related Manuals for SSR 189

Summary of Contents for SSR 189

  • Page 1 DIRT BIKE OWNERS MANUAL SSR189 SSR USER MANUAL...

  • Page 2: Introduction

    INTRODUCTION Thank you and congratulations for having chosen. We hope you enjoy driving a SSR Motorsports bike now that is one of the proud owners of a SSR Motorsports. We are sure you will give great satisfaction. This manual describes the features of the dirt bike, and provides instructions for you to have a better understanding of the controls and operation.
  • Page 3 Since changes may have occurred or improvements, there may be differences between vehicles and CAUTION this manual. SSR Motorsports. reserves the right to make Warns of the operation to be performed to avoid changes any time, without having to notify.

  • Page 4: Table Of Contents

    DIRT BIKE OWNERS MANUAL SSR189 TABLE OF CONTENTS INTRODUCTION Description of vehicle INDEX icons 1. components TABLE OF CONTENTS 2. VIN Record Technical specifications 3. refueling Driving safety User Guide 1. Safety Tips 1. PSI line - Before driving 2. Turning motor - When handling 3.
  • Page 5 DIRT BIKE OWNERS MANUAL SSR189 Checking, adjustment and maintenance 1. Motor oil 14. suspensions - Check engine oil - Front suspension - Change engine oil - Rear Suspension - Cleaning oil pan 16. Periodic Maintenance Chart 2. Tires 3. Revision or replacement of spark plugs 15-16 WARRANTY 4.

  • Page 6: Technical Specifications

    DIRT BIKE OWNERS MANUAL SSR189 TECHNICAL SPECIFICATIONS MOTOR Single-cylinder, vertical, air cooled,4-stroke • Type: 189cc • Displacement: 65.5x56.2mm • Bore and stroke: • Torque: 14/7,000±500 rpm • Power: 11.5kw /8500±500 rpm • Ignition: CDI. • Start: Kick & Electric start Chassis and Suspension •...

  • Page 7: Driving Safety

    DIRT BIKE OWNERS MANUAL SSR189 -IN HANDLING Driving safety • Familiarize well with brake systems. Use both front and rear brakes, not to lose control vehicle. • Take great care and drive at lower speeds in bad weather CIRCULATION IS STRICTLY PROHIBITED (rain, wind, low visibility).

  • Page 8: Added Load And Accessories

    You are responsible the choice, installation and use of accessories not our company. • Always follow detailed guidelines recommend in loading SSR Motorsports is not responsible for replacing • Carefully inspect the accessory to make sure it does not unauthorized parts.
  • Page 9 DIRT BIKE OWNERS MANUAL SSR189 • Cooling the engine. The large fairings or windshield installed on the fork, poorly designed or inadequately placed, can produce forces aerodynamic driving causing instability. • Do not add electrical equipment that exceeds the capacity vehicle electrical system. •...

  • Page 10: Description Of Vehicle

    DIRT BIKE OWNERS MANUAL SSR189 Description of vehicle 6. rear shock 13. throttle 20. front wheel 1. COMPONENTS 7. rear brake 14. front brake 21. front disc 1. seat 8. swing arm 15. handle bar 22. front brake reservoir 2. plastics 9.

  • Page 11: Vin Record

    DIRT BIKE OWNERS MANUAL SSR189 2. VIN RECORD The engine number is stamped on the left the underside of the dirt bike. The VIN, are required to manage the warranty. • Write down the numbers for your reference when you need them. The VIN is stamped on the front of the chassis behind the number plate on the steering stem tube.
  • Page 12 DIRT BIKE OWNERS MANUAL SSR189 3. FUELING • The dirt bike uses premium gasoline The tank has a capacity of 7 liters of fuel. without content lead (91 octane minimum). Filling the tank: 1. Place the dirt bike perpendicular to the ground. 2.

  • Page 13: User Guide

    DIRT BIKE OWNERS MANUAL SSR189 • Do not start the engine indoors or shortly ventilated, it USER GUIDE may cause accidents due the toxic exhaust fumes. 1. Pre-ride inspection • If the engine is ignited by kick start, the dirt bike must It is necessary for your safety, check: •...

  • Page 14: Driving

    DIRT BIKE OWNERS MANUAL SSR189 • Slow down or halt throttle before coming to a corner, to prevent wheel slip, and reducing control of the dirt bike. 4. Driving • No braking, accelerating or turning abruptly, if you drive in Tips to follow: the rain, by wet ground or loose surfaces, reducing...

  • Page 15: Motor Oil

    DIRT BIKE OWNERS MANUAL SSR189 1. Motor oil - Change engine oil: - Check engine oil: Engine oil plays an important role in the work of motor. • It is advisable to do so before riding the dirt bike. • Keep the dirt bike on firm and flat ground, on the support main stand Change engine oil: •...
  • Page 16 DIRT BIKE OWNERS MANUAL SSR189 Using the recommended oil, cleaning is not required crankcase or 1. Remove the cover from the front cover. 2. Disconnect the spark internal engine components as the multigrade oils which have plug cap and remove it with a wrench spark plug. 3. Clean dirt from maintained detergent agents clean and free of sediment all lubricated the spark plug (remove carbon deposits) with a plug cleaner or, if components.

  • Page 17: Checking And Cleaning The Air Filter

    DIRT BIKE OWNERS MANUAL SSR189 4. Tighten the spark plug, if it is new: 1/2 turn with a wrench spark plug - Disassemble process: to compress the washer. If the spark plug is already used, tighten only between 1/8 and 1/4 turn after having settled. 1.

  • Page 18: Carburetor Adjustment

    DIRT BIKE OWNERS MANUAL SSR189 performs the accelerator cable under right mitten Therefore, recommend that • If you need to reduce free play, unscrew the regulator and In case you inconvenience or periodic review, is directed to want to increase screw. Review the throttle free play cable after operating an authorized, for staff knowledge and proper the motor to make sure it works properly or not be accelerated.

  • Page 19: Cleaning The Dirt Bike

    DIRT BIKE OWNERS MANUAL SSR189 • Check the main parts of the dirt bike before storage. 10. Cleaning the dirt bike • To maintain the dirt bike in normal course storage: Clean the dirt bike regularly to prevent which 1. Replace engine oil 2. Drain the remaining gasoline from the fuel tank discolor the surface.

  • Page 20: Suspensions

    DIRT BIKE OWNERS MANUAL SSR189 12. Startup after storage 1. Remove the cover and thoroughly clean the dirt bike. 2. If the dirt bike has been stored for more than four months, engine oil must be replaced. Front suspension Has ability to rebound and compression adjustable 3.
  • Page 21 DIRT BIKE OWNERS MANUAL SSR189 14. Periodic service - 2 Hours Service After 2 hours carry out the following checks & procedures: -Drain oil & replace with semi synthetic 10W40 4-stroke engine oil -Check all nuts & bolts & tighten where necessary ( use PDI data as reference ) -Check flywheel nut is tight -Check wheel spokes ( especially rear wheel drive side ) and tighten where necessary -Re-adjust throttle cable &...
  • Page 22 DIRT BIKE OWNERS MANUAL SSR189 -cam timing out -Engine will not rev out lacks power – cam timing out or very worn valve springs ( possible faulty plug ) -Engine has little mid-range performance but revs out fine – cam time out -Engine will not tick over –...
  • Page 23 DIRT BIKE OWNERS MANUAL SSR189 -Engine loses oil through output shaft / clutch seals – blocked/kinked engine breather or old worn seals, also possible excessive blow by from worn piston/rings but this should be evident from white exhaust smoke long before losing oil through breather. Suspension -Shock feels springing, no rebound damping –...
  • Page 24 DIRT BIKE OWNERS MANUAL SSR189 -Guidelines for correct jetting (fuel mixture adjustment) In order to check your bike fuel air mixture & thus running performance, take out the spark plug and check the electrode; the color should be golden brown. If it is white, the engine is running too lean (not enough fuel). If it is black (sooty color) it is too rich (too much fuel). If it is white &...

  • Page 25: Warranty

    SSR Motorsports offers warranty from invoice date of your vehicle. In The safety is the responsibility of both the manufacturer and the this particular case, as it is an off road bike, SSR Motorsports limited user, so you must promptly: •...

  • Page 26: Warranty Exclusions

    • Hubs of any kind. •Spoke • Modify the original condition of the vehicle. •Rim wheels. • The use of non-original parts or SSR MOTORSPORTS. • Masses. • Cables command: brake / clutch / throttle. • Adding accessories. • Spark plugs.
  • Page 27 • The dealer or seller and agent are SSR Motorsports of all responsibility and liability for any accident that may occur to persons and / or things, by...
  • Page 28 DIRT BIKE OWNERS MANUAL SSR189...
