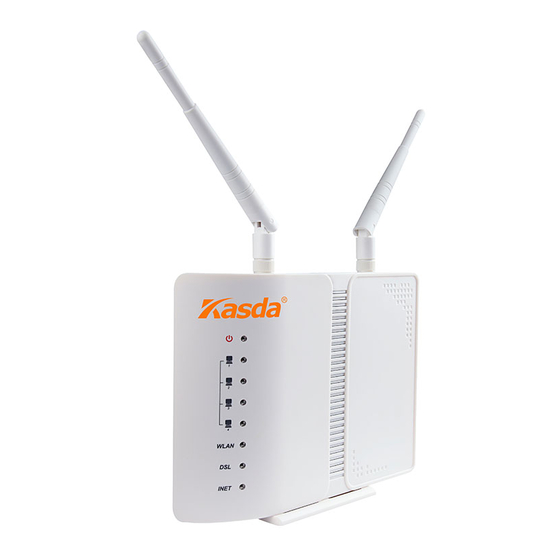

KW5212 Wireless VDSL Router

User Manual

Kasda Networks Inc.
深圳市宏成数字科技股份有限公司

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KW5212 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kasda KW5212

Summary of Contents for Kasda KW5212

  • Page 1: User Manual

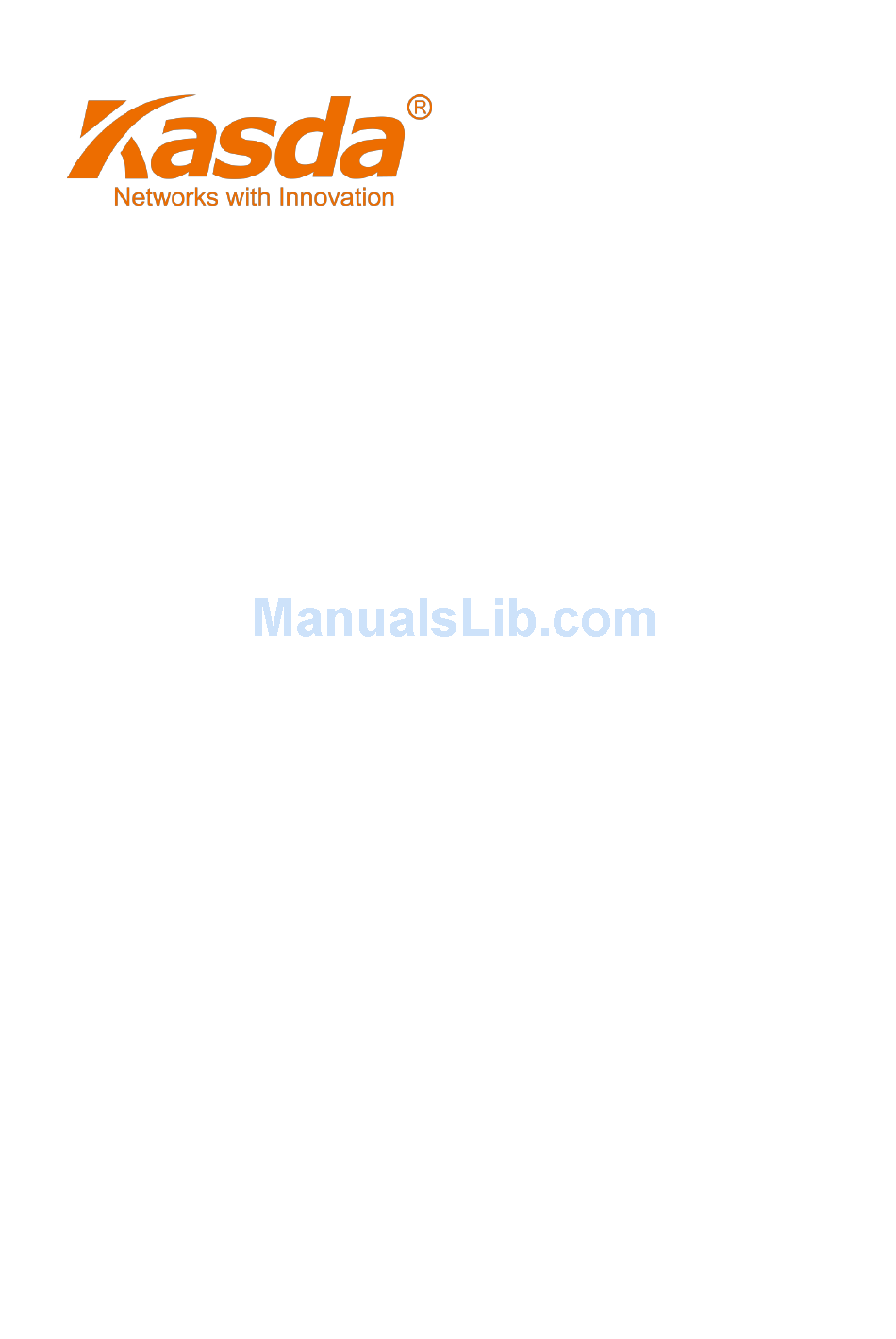

    KW5212 Wireless VDSL Router User Manual Kasda Networks Inc. 深圳市宏成数字科技股份有限公司...
  • Page 2 WLAN VDSL Router User Manual NOTICE This document contains proprietary information protected by copyright, and this Manual and all the accompanying hardware, software, and documentation are copyrighted. All rights are reserved. No part of this document may be photocopied or reproduced by mechanical, electronic, or other means in any form.

  • Page 3: Table Of Contents

    WLAN VDSL Router User Manual Content 1 OVERVIEW ..........................1 EATURES ..........................1 1.1.1 Data Rate ......................1 1.1.2 VDSL Compliant ....................1 1.1.3 Wireless ......................... 1 1.1.4 Network Protocol & Features ................1 1.1.5 ATM Capabilities ....................2 1.1.6 FIREWALL ......................

  • Page 4: Overview

    WLAN VDSL Router User Manual 1 Overview Thank you for choosing our product. The product is a Wireless VDSL router combining an VDSL modem, an 802.11n wireless router ,a 4-port switch and an USB port in one unit, bringing high-speed wireless Internet connection to a home or office. Features 1.1.1 Data Rate...

  • Page 5: Atm Capabilities

    WLAN VDSL Router User Manual  IP Static Routing  Routing Information Protocol (RIP, RIPv2)  Network Address Translation (NAT)  Virtual Server, Port Forwarding  Dynamic Host Configuration Protocol (DHCP)  DNS Relay, DDNS  IGMP Proxy  Simple Network Time Protocol (SNTP) ...

  • Page 6: Management Support

    WLAN VDSL Router User Manual  1.1.7 Management Support  Web Based GUI  Upgrade or update via FTP/HTTP  Command Line Interface via Telnet  Diagnostic Test  Firmware upgradeable for future feature enhancement 1.1.8 Operating System Support  WINDOWS 98/98 SE/ME/2000/XP/VISTA/7 ...

  • Page 7: Factory Defaults

    WLAN VDSL Router User Manual  Subscription for ADSL service. Your ADSL service provider should provide you with at least one valid IP address (static assignment or dynamic assignment via dial-up connection).  One or more computers, each contains an Ethernet 10/100M Base-T network interface card (NIC).

  • Page 8: Hardware Description

    WLAN VDSL Router User Manual 2 Hardware Description Front Panel Color Function On: Power on Green Off: No power On: LAN link established and active via LAN port Green Blinking: DSL data activity occurs Off: No LAN link via LAN port On: The wireless module is ready and idle WLAN Green...
  • Page 9 WLAN VDSL Router User Manual Rear panel Port Function Connect the device to an DSL telephone jack or splitter using a RJ-11 telephone cable Connect the device to your PC's Ethernet port, or to ETH1,2,3,4 the uplink port on your hub/switch, using a RJ-45 cable Connect the device to a printer ON/OFF...

  • Page 10: Hardware Installation

    WLAN VDSL Router User Manual 3 Hardware Installation This chapter shows you how to connect Router. Meanwhile, it introduces the appropriate environment for the Router and installation instructions. Using a telephone line to connect the DSL port of ROUTER to the MODEM port of the splitter, and using a other telephone line connect your telephone to the PHONE port of the splitter, then connect the wall phone jack to the LINE port of the splitter.

  • Page 11: Pc Configuration Guide

    WLAN VDSL Router User Manual PC Configuration Guide Local PC Configuration in Windows 95, 98, ME, XP,7 In the Windows task bar, click the “Start” button, point to “Settings”, and then click “Control Panel”. Double-click the “Network” icon. On the “Configuration” tab, select the TCP/IP network associated with your network card and then click “Properties”.

  • Page 12: Web-Based Management Guide

    WLAN VDSL Router User Manual 5 Web-based Management Guide In order to use the web-based management software it will be necessary to use a computer that occupies the same subnet as the Router. The simplest way to do this for many users will be to use DHCP server that is enabled by default on the Router.

  • Page 13: Internet Access Configuration

    WLAN VDSL Router User Manual We can select wizard setup or advanced setup mode to setup KW5212.the wizard set up will guide us for a basic setting,and the advanced setup will guide us to home page for more detailed setup.
  • Page 14 WLAN VDSL Router User Manual 4. Click Add to select a layer 2 interface for this service and then click Next. 5. Choose WAN service type, just choose PPPoE for example here. You can enter your own service description here if you want and then click Next. 6.
  • Page 15 WLAN VDSL Router User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE.
  • Page 16 WLAN VDSL Router User Manual The gateway can be configured to disconnect if there is no activity for a specific period of time by selecting the Dial on demand check box and entering the Inactivity timeout. The entered value must be between 1 minute and 4320 minutes. Use Static IPv4 address: If the ISP gave you a static (fixed) IP address, select this option and enter it in the IP Address field.
  • Page 17 WLAN VDSL Router User Manual 8. Get DNS server information from the selected WAN interface or enter static DNS server IP addresses. If only a single PVC with IPoA or static MER protocol is configured, you must enter static DNS server IP addresses. 9.

  • Page 18: Vdsl Setup

    WLAN VDSL Router User Manual 5.2.2 VDSL Setup From home page, you can find Advanced Setup option on the left router configuration page. 1. From Layer2 Interface, click PTM Interface. you can set it up according to the following steps. You Choose Add, or Remove to configure DSL PTM interfaces. 2.Click Add to configure PTM Priority, select DSL latency and select connection mode according to your local occasion.
  • Page 19 WLAN VDSL Router User Manual 6. Input PPP Username & PPP Password and then click Next. The user interface allows a maximum of 256 characters in the user name and a maximum of 32 characters in the password.
  • Page 20 WLAN VDSL Router User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE.
  • Page 21 WLAN VDSL Router User Manual LAN can be connected to the remote, since the DHCP server within the ADSL gateway has only a single IP address to assign to a LAN device.  NAPT and firewall are disabled when this option is selected. ...

  • Page 22: Router Mode Setup

    WLAN VDSL Router User Manual Make sure that the settings below match the settings provided by your ISP. Click on the Apply/Save button to save your configurations. 5.2.3 Router Mode Setup 1. From Advanced Setup, click Layer2 Interface and select ETH Interface. Before you configure ETH WAN interface, you’d better remove all PVC settings from ATM interface.
  • Page 23 WLAN VDSL Router User Manual Select a ETH port as you will. You can select ENET1, ENET2, ENET3 or ENET4 port as the WAN interface and Default mode as connection mode. 4. Click Apply/Save and you’ll see the following screen. From Advanced Setup, click WAN Service to configure a WAN service over the interface you selected.
  • Page 24 WLAN VDSL Router User Manual 8. Enter the user name and password that your ISP has provided to you. Click Next.
  • Page 25 WLAN VDSL Router User Manual PPPoE service name can be blank unless your Internet Service Provider gives you a value to enter. Authentication method is default to Auto. It is recommended that you leave the Authentication method in Auto, however, you may select PAP or CHAP if necessary. The default value for MTU (Maximum Transmission Unit) is 1500 for PPPoA and 1492 for PPPoE.
  • Page 26 WLAN VDSL Router User Manual Enable Full Cone NAT: In full cone NAT, all requests from the same private IP address and port are mapped to the same public source IP address and port. Someone on the Internet only needs to know the mapping scheme in order to send packets to a device behind the VDSL Device.
  • Page 27 WLAN VDSL Router User Manual  The gateway becomes the default gateway and DNS server to the computer through DHCP using the LAN interface IP address.  The gateway extends the IP subnet at the remote service provider to the LAN computer.

  • Page 28: Lan Settings

    From LAN, Configure the DSL Router’s IP Address and Subnet Mask for LAN interface. In this page, you can use DHCP (Dynamic Host Configuration Protocol) to control the assignment of IP addresses on your local network (LAN only).KW5212 support IPv4 /IPv6 dual stack.
  • Page 29 WLAN VDSL Router User Manual Item Description This is the IP address that other devices on your local network will use IP address to connect to the modem. Subnet mask This defines the size of your network. The default is 255.255.255.0. IGMP Snooping is a method that actually “snoops”...

  • Page 30: Wireless Setting

    WLAN VDSL Router User Manual 5.3 Wireless setting 5.3.1 Basic Option Description A checkbox that enables or disables the wireless LAN interfaces. The default is to Enable wireless enable wireless communications. Select Hide Access Point to protect the ADSL route access point from detection by wireless active scans.

  • Page 31: Security

    WLAN VDSL Router User Manual (SSID) KASDAxxxx (xxxx means the mac address of KW5212 with uppercase and without colon) . All wireless clients must either detect the gateway or be configured with the correct SSID to access the Internet. BSSID Displays the gateway's wireless MAC address.
  • Page 32 3.Enable WPS as below. click Save/Apply 4.. Now you can use a wireless adaptor with WPS function and the WPS button to connect KW5212 to access the Internet. 5. To configure security features for the Wireless interface, please open Security item from Wireless menu.
  • Page 33 WLAN VDSL Router User Manual The wireless security page allows user to configure the security features of user’s wireless network. There are several security methods to choose from, depending on user’s needs and the capabilities of user’s wireless machines. WEP open and WEP shared —WEP is an encryption scheme that is used to ...

  • Page 34: Printer Server Installations

    WLAN VDSL Router User Manual WPA — WPA is a more recent encryption method that addresses many of the  weaknesses in WEP. Any client capable of WPA encryption should use it instead of WEP. WPA (PSK) — This is WPA encryption combined with a pre-shared key (PSK), ...
  • Page 35 WLAN VDSL Router User Manual 3. Select “Network Printer” and click “Next”. 4. Select Connect to a printer on the Internet, type “http://192.168.1.1:631/printers/printer” and click “Next”. The printer name “Printer” must be the same name entered in the ADSL router “print server setting” as in step 1.

  • Page 36: Qos Setup

    WLAN VDSL Router User Manual Select driver file directory on CD-ROM or in your hard disk and click “OK”. 6. Choose “Yes” or “No” for default printer setting and click “Next”. Click “Finish”. 6. QoS setup QoS helps you to control the data upload traffic of each application from LAN (Ethernet) to WAN (Internet).
  • Page 37 WLAN VDSL Router User Manual Quality of Service: Check to activate this function and the following field will be available. Select Default DSCP Mark: Select the default DSCP mark from the list-box. Differentiated Services Code Point (DSCP) is the first 6 bits in the ToS byte. DSCP Mark allows users to classify the traffic of the application to be executed according to the DSCP value.
  • Page 38 WLAN VDSL Router User Manual Interface: the queue interface. Scheduler Algorithm: the QoS Scheduler Algorithm, SP(Strict Priority) or WFQ(Weight Fair Queuing) Precedence: the priority identification. Weight: the weight value, 1-63. the highest is 63. PTM Priority: the PTM priority, normal or high. Enable: check the enable check-box, then press Enable to activate the queue.
  • Page 39 WLAN VDSL Router User Manual Parameters Traffic Class Name: Assign a name for this class to uniquely identify the others among multiple classes. Rule Order: Select the priority for this class rule. Rule Status: Select Enable to activate this class rule. Specify Classification Criteria The following parameters are to be classification rule.
  • Page 40 WLAN VDSL Router User Manual Classification Criteria. The format should be xx:xx:xx:xx:xx:xx Source/destination MAC Mask: MAC mask is similar to IP mask, and the format also should be xx:xx:xx:xx:xx:xx. It is used to hide some information of the MAC address. ‘1’,means needed and ‘0’...
  • Page 41 WLAN VDSL Router User Manual 2. In QoS Classification Setup page, Click Add to add a QoS Classification. Then in the appeared Add Network Traffic Class Rule page, enter the information to set up a rule. 1) Specify the rule name, rule order, and rule status. 2) Specify the classification criteria.
  • Page 42 WLAN VDSL Router User Manual 3) Specify the classification results. Here you must Assign Classification Queue. Whether the following parameters are needed is according to your needs. If you do not want to change the original information, please leave it empty. The queues listed here in the Assign Classification Queue are WAN interface queues set in Queue Config section.
  • Page 43 WLAN VDSL Router User Manual  WAN to LAN IP QoS 1. Here we take WAN to LAN (ETH1) QoS for example. Make sure there are enabled port ETH1 based queues here. LAN queues need your configuration. You can enable wireless to enable WMM queues by default or add ETH0-ETH4 ported based queues manually.
  • Page 44 WLAN VDSL Router User Manual  Port based QoS Take port ETH0 to WAN QoS for example. 1. First make sure there is at least a WAN queue and it is enabled. 2. In QoS Classification Setup page, Click Add to add a QoS Classification.
  • Page 45 WLAN VDSL Router User Manual Then in the Add Network Traffic Class Rule page, enter the information to set up a rule to your needs. To Assign Classification queue, select the needed WAN queue. 3. Click Apply to save your settings and the added rule will be listed as below.

  • Page 46: Appendix : Frequent Asked Questions

    WLAN VDSL Router User Manual Appendix : Frequent Asked Questions Q: None of the LEDs are on when you power on the ADSL router? A: Please make sure what you use is the power adaptor attached with the ADSL router package and checks the connection between the AC power and ADSL router.
  • Page 47 WLAN VDSL Router User Manual Q: PC cannot browse Internet web page? Please make sure DNS server appointed to the PC is correct. You can use ping application program to test whether the PC can connect to the DNS server of the ADSL operator.
