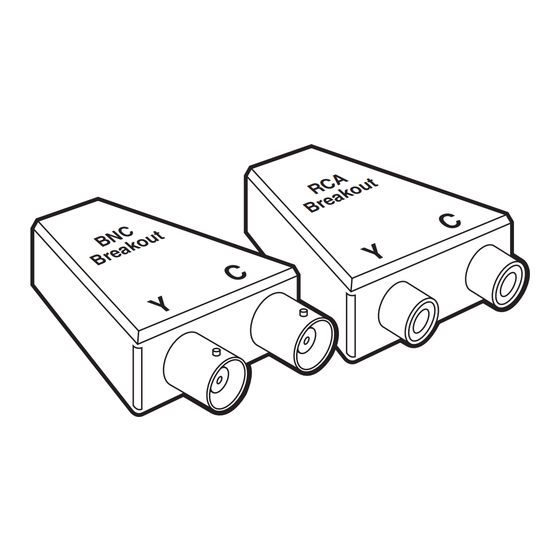

S-Video Breakout BNC or RCA
CUSTOMER SUPPORT INFORMATION
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)
FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746
Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018
Web site: www.blackbox.com • E-mail: info@blackbox.com
MARCH 2000
AC425A
AC426A
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Black Box AC425A
Summary of Contents for Black Box AC425A
- Page 1 Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 S-VIDEO BREAKOUT BNC OR RCA Contents 1. Specifications....... . . 2 2.
-
Page 3: Specifications
S-VIDEO BREAKOUT BNC OR RCA 1. Specifications Connectors — AC425A: (2) 75-ohm BNC, (1) 4-pin mini-DIN female; AC426A: (2) gold RCA ® (1) 4-pin mini-DIN female Size — 0.5"H x 1.4"W x 1.9"D (1.3 x 3.6 x 4.8 cm) Weight (for two units) — 1 lb. (0.5 kg) - Page 4 S-VIDEO BREAKOUT BNC OR RCA 2. Introduction 2.1 Description S-Video is a form of video found on most consumer- grade VCRs, camcorders, and televisions. It is also a video output on some PC video cards. S-Video is made up of the Luminance component (also known as “Y”) and the Chrominance component (also known as “C”).
- Page 5 S-VIDEO BREAKOUT BNC OR RCA 2.2 Features • Connectors are encased in epoxy, so cables are not subject to flexing. • Perfect for presentation and home-theater systems. • Smaller, lighter, and more rugged than standard breakouts. • Waterproof. 2.3 Typical Application S-Video Cable S-Video Breakout BNC Camera...
- Page 6 S-VIDEO BREAKOUT BNC OR RCA 3. Installation NOTE You must use two S-Video Breakouts to complete installation (one at the S-Video source and one a S-Video termination). 1. Connect your S-Video source’s output (VCR, camcorder, distribution amplifier, etc.) to the Breakout’s 4-pin female mini-DIN input.
- Page 7 © Copyright 2000. Black Box Corporation. All rights reserved. 1000 Park Drive • Lawrence, PA 15055-1018 • 724-746-5500 • Fax 724-746-0746...
