Video to VGA Portable
Turns a VGA monitor into a video monitor with
remote switching capability.
Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S.
Customer
call 724-746-5500) • FREE technical support 24 hours a day, 7 days a
Support
week: Call 724-746-5500 or fax 724-746-0746 • Mailing address:
Information
Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •
Web site: www.blackbox.com • E-mail: info@blackbox.com
BLACK BOX
AC328A-R4
®
Advertisement
Table of Contents
Related Manuals for Black Box AC328A-R4
Summary of Contents for Black Box AC328A-R4
- Page 1 724-746-5500) • FREE technical support 24 hours a day, 7 days a Support week: Call 724-746-5500 or fax 724-746-0746 • Mailing address: Information Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com...
- Page 2 FCC and IC RFI Statements FEDERAL COMMUNICATIONS COMMISSION AND INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS Class B Digital Device. This equipment has been tested and found to comply with the limits for a Class B computing device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 3 NOM Statement Normas Oficiales Mexicanas (NOM) Electrical Safety Statement INSTRUCCIONES DE SEGURIDAD 1. Todas las instrucciones de seguridad y operación deberán ser leídas antes de que el aparato eléctrico sea operado. 2. Las instrucciones de seguridad y operación deberán ser guardadas para referencia futura.
- Page 4 NOM Statement 12. Precaución debe ser tomada de tal manera que la tierra fisica y la polarización del equipo no sea eliminada. 13. Los cables de la fuente de poder deben ser guiados de tal manera que no sean pisados ni pellizcados por objetos colocados sobre o contra ellos, poniendo particular atención a los contactos y receptáculos donde salen del aparato.
- Page 5 Trademarks Used in this Manual TRADEMARKS USED IN THIS MANUAL Black Box and the Double Diamond logo are registered trademarks of BB Technologies, Inc. IBM is a registered trademark of International Business Machines Corporation. Xbox is a registered trademark of Microsoft Corporation.
-
Page 6: Table Of Contents
4.1 Using the Remote Control .................13 4.2 Menu Options ...................14 4.2.1 Picture Menu ...................15 4.2.2 Input Source Menu ................16 4.2.3 OSD Settiings Menu ................17 4.2.4 Resolution Menu ................18 5. Troubleshooting ....................19 5.1 Calling Black Box..................19 5.2 Shipping and Packaging ................19 724-746-5500 | blackbox.com Page 6... -
Page 7: Chapter 1. Specifications
Chapter 1: Specifications 1. Specifications Compliance: FCC Part 15 Class B Frequency: 60 or 75 Hz Resolutions: 800 x 600, 1024 x 768, 1280 x 1024, 1440 x 900, 1680 x 1050, 1920 x 1080 System Requirements (Minimum): VESA-compatible monitor, speaker with 4 ohms impedance, video input device (such as a VCR, camcorder, laser disc player, DVD, etc.);... -
Page 8: Introduction

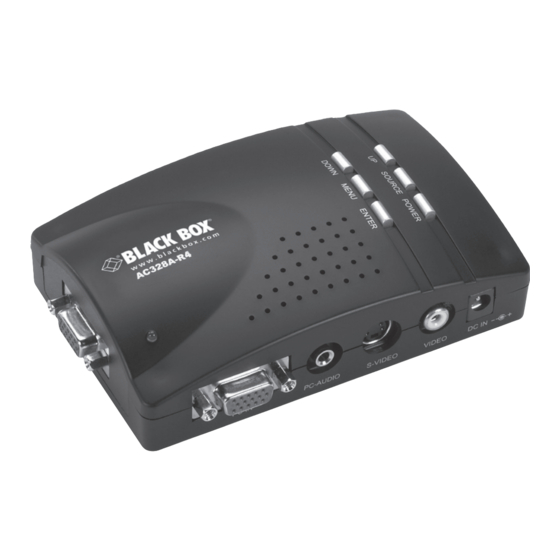

Chapter 2: Introduction 2. Introduction 2.1 Description The Video to VGA Portable can turn any VGA monitor into a video monitor with remote switching capability. It provides a sharp, stable image output to VGA for a high-quality picture. Output resolutions reach 1920 x 1080. The Video to VGA Portable converts any video signal into a non-interlaced VGA signal for CRT or LCD monitors. -
Page 9: Package Contents
Chapter 2: Introduction 2.2 Package Contents Listed below is everything you should have received when you ordered the Video to VGA Portable. If any of these items are missing, please call us at 724-746-5500. • (1) Video to VGA Portable •... -
Page 10: Installation
Chapter 3: Installation 3. Installation 3.1 VGA to Video Portable’s (Main Unit’s) Components Refer to the illustration below before installing the Video to VGA Portable. Following the illustration is a description of each of the main unit’s components. Figure 3-1. Video to VGA Portable main unit, top view. AUDIO OUT: Stereo audio signal output. - Page 11 Chapter 3: Installation VGA IN: Connect to a VGA card with the supplied VGA cable. VGA OUT: Connect to your original VGA monitor. COMPONENT Connect to your Component OUT on source UP/DOWN Use the UP/DOWN buttons to scroll through the menu options. buttons: MENU button: Press the MENU button then use the UP/DOWN buttons to scroll through the menu options (Brightness, Contrast, Color, Tint,...
-
Page 12: Installation Instructions
Chapter 3: Installation 3.2 Installation Instructions Refer to Figure 3-2 and follow the steps on the next page. Figure 3-2. Typical installation, main unit. 1. Make sure the power is turned off on all devices. 2. Connect the input (VGA, Composite, Component, and S-Video) and output (VGA) cables. -
Page 13: Operation
Chapter 4: Operation 4. Operation NOTE: In this chapter, the Video to VGA Portable is referred to as the main unit, and the remote control unit is called the remote control. Once you’ve installed the Video to VGA Portable (see Section 3-2), you can control it either via buttons on the main unit itself or by using buttons on the remote control to switch input sources and adjust picture quality. -
Page 14: Menu Options
Chapter 4: Operation General buttons on the remote control: Resolution: Press this button to toggle through the supported output resolutions to get the best quality picture. Reset: Press this button to reset to the default settings (Composite video, 800 x 600, etc.), no confirmation. -
Page 15: Picture Menu
Chapter 4: Operation NOTE: On the main unit, you will use the UP/DOWN buttons to scroll through menu options. On the remote control, you’ll use the p, u buttons for scrolling. 4.2.1 Picture Menu Figure 4-2. Picture menu. BRIGHTNESS: Brightness adjustment. Using the p, q or t, u buttons, scroll through the menu to select this option. -
Page 16: Input Source Menu
Chapter 4: Operation COLOR: Color adjustment. Using the p, q or t, u buttons, scroll through the menu to select this option. Press ENTER, then press the q or t and u button to adjust the color. Choose from 0 to 100. -
Page 17: Osd Settiings Menu
Chapter 4: Operation 4.2.3 OSD Settings Menu Figure 4-4. OSD settings menu. LANGUAGE: Using the p q buttons, scroll through the menu to select this option. Press ENTER, then press the p or q button to select a language. Choose from six languages: English, French, German, Spanish, Italian, and Dutch. -
Page 18: Resolution Menu
Chapter 4: Operation 4.2.4 Resolution Menu Figure 4-5. Resolution menu. RESOLUTION: Press the Resolution button on the remote control or select 800 x 600, 1024 x 768, 1280 x 1024, 1440 x 900, 1680 x 1050, or 1920 x 1080 to select the resolution. Or, to select this option via menu keys on the remote control or main unit, use the t and u or p, buttons to scroll to this option on the menu. -
Page 19: Troubleshooting
5.1 Calling Black Box If you determine that your Video to VGA Portable is malfunctioning, do not attempt to alter or repair the unit. It contains no user-serviceable parts. Contact Black Box at 724-746-5500. Before you do, make a record of the history of the problem. We will be able to... - Page 20 724-746-5500 or blackbox.com. About Black Box Black Box Network Services is your source for an extensive range of networking and infrastructure products. You’ll find everything from cabinets and racks and power and surge protection products to media converters and Ethernet switches all supported by free, live 24/7 Tech support available in 30 seconds or less.
