First Alert SFA1180 User Manual

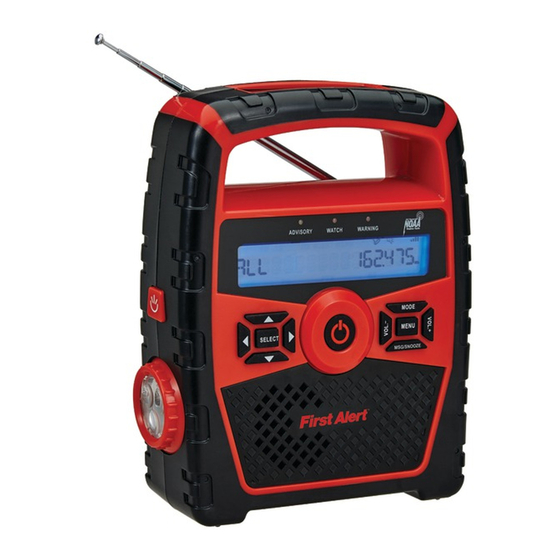

Portable am/fm weather band clock radio with s.a.m.e. weather alert
Hide thumbs
Table of Contents

Advertisement

Quick Links

PORTABLE AM/FM WEATHER BAND CLOCK RADIO
WITH S.A.M.E. WEATHER ALERT
USER MANUAL
BC
SFA1180
PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS
UNIT AND RETAIN IT FOR FUTURE REFERENCE IT FOR FUTURE REFERENCE

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SFA1180 and is the answer not in the manual?

Questions and answers

Related Manuals for First Alert SFA1180

Summary of Contents for First Alert SFA1180

  • Page 1 PORTABLE AM/FM WEATHER BAND CLOCK RADIO WITH S.A.M.E. WEATHER ALERT USER MANUAL SFA1180 PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN IT FOR FUTURE REFERENCE IT FOR FUTURE REFERENCE...
  • Page 2 DEAR FIRST ALERT® CUSTOMER Selecting fine audio equipment such as the unit you've just purchased is only the start of your musical enjoyment. Now it's time to consider how you can maximize the fun and excitement your equipment offers. This...

  • Page 3: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference.

  • Page 4: Compliance With Fcc Regulations

    COMPLIANCE WITH FCC REGULATIONS This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

  • Page 5: Location Of Controls

    LOCATION OF CONTROLS ADVISORY WATCH WARNING MODE SELECT MENU MSG/SNOOZE DC IN USB CHARGING RESET 5V 1.5A...
  • Page 6 ADVISORY ALERT INDICATOR TELESCOPIC ANTENNA Flashlight ON/OFF button WATCH ALERT INDICATOR WARNING ALERT INDICATOR BATTERY COMPARTMENT DOOR Headphone Out MULTI-FUNCTION LCD DISPLAY POWER On/Standby / USB Solar Charging Indicator Charging Switch Button MOVE RIGHT / TUNE+ Button Reset Button USB Charging Port MOVE UP Button MOVE LEFT...

  • Page 7: Power Source

    1. Refer to the “Resetting the Unit” instructions located in the CARE AND MAINTENANCE section of this manual. Press the RESET button located on the back of the SFA1180, and the unit should return to normal operation. 2.W hen the low battery icon appears on the display, either the internal battery needs to be recharged, or the “AA”...
  • Page 8 3. Continue turning the Crank to charge the internal battery. The longer you turn the hand crank, the more power you are generating to charge the battery, and the Radio listening time will be extended (Radio reception only). Notes: The unit may require 5 - 6 minutes of constant cranking if the LCD clock display and LED light do not work, and the battery is completely drained.
  • Page 9 2) “AA”Battery Operation 1.O pen the Battery Door on the back of the radio. 2.F ollow the markings inside the battery compartment, and insert 3 new 'AA' (UM-3) batteries (not included). Make sure the positive and negative ends of the batteries are facing the correct direction. Note: For optimum performance, alkaline-type batteries are recommended.

  • Page 10: Low Battery Indicator

    USB port located on the back of the unit. The internal battery of the SFA1180 will begin to charge automatically when your computer is ON. Charge the unit a minimum of 7 to 8 hours prior to using, and the radio should not be used while charging with your computer.

  • Page 11: Clock And Date Setting

    CHARGING LED INDICATORS LEDs ARE LOCATED ON BACK OF UNIT Battery Charging via USB LED flashes Red during charging. LED lights Red when fully charged. Battery Charging via Crank LED flashes Red during charging. Battery Charging via Solar Power Solar charging LED lights yellow. CHANGE DISPLAY BACKLIGHT TIME SETTING THE LCD BACKLIGHT TIME 1.

  • Page 12: Setting The Date

    Note: Make sure the hour is set so that the AM or PM indicators are displayed correctly. 6. Press the button after the hour is set, Minute digits flashing to prompt for input. 7. Tap the button to set the minute digit(s). Press and hold the buttons to speed up the forward or reverse scanning of the digits.

  • Page 13: Snooze Function

    9. Tap the SELECT button to confirm. Alarm indicator appears on display if beeping alarm or wake to radio is selected. 10. Tap the MENU button to exit set up menu. Wake to ALARM or WEATHER RADIO 1. The Alarm or radio will automatically turn on when alarm time is reached. The volume level of radio alarm increases gradually until it reaches the factory preset level.

  • Page 14: Listening To The Radio

    4. To cancel the sleep timer, tap the SELECT button twice in clock display mode, remained sleep time will flash. Tap the button until timer shows “OFF”. Tap the SELECT button, sleep timer indicator “zZ” will disappear from display immediately. 5.

  • Page 15: Preset Radio Stations

    PRESET RADIO STATIONS This unit has 10 preset memories for the AM radio and 10 preset for FM. 1. Tap the button to turn the unit ON. 2. Tap the MODE button repeatedly to select AM or FM mode. 3. Tune to the desired radio station either by “manually” or “automatically” tuning method.
  • Page 16 Note: With regard to the NOAA Weather Band: You need to identify which channel receives your local weather report. When you change locations either to another city or state, you may need to choose a different band to get the local report in that location. HINTS FOR BEST RECEPTION: To insure maximum weather band reception, the Telescopic Antenna should be fully extended and rotated to obtain the best possible station...
  • Page 17 By telephone at 1-888-NWR-SAME (1-888-697-7263) for a voice menu PROGRAMMING YOUR S.A.M.E. COUNTY CODES The SFA1180 Weather Alert Radio is preset to receive “ALL” alerts and transmissions that are broadcast. If you want to receive all the alerts that are broadcasting by NOAA, leave the “COUNTY”...
  • Page 18 5. Tap the SELECT button to save your “SINGLE” county code, then tap the MENU button to exit. 6. The SFA1180 will only alert you when there is a warning/watch/advisory for the one county you entered the S.A.M.E. code for, as long as it is within the area covered by the NOAA broadcast you are monitoring.
  • Page 19 “DISPLAY” Alert = No audible sound will be heard when an alert is received, and only a text alert will scroll on the display. EXCEPTION: When the SFA1180 is set to “DISPLAY” Alert, the alert tone siren will still sound if one of the alerts marked with an asterisk “ * ”...
  • Page 20 DISABLE that alert. When disabled, the SFA1180 will ignore Special Marine Warnings that are broadcast by NOAA. See the “SELECTABLE ALERT REFERENCE CHART” section in this manual for a list of the pre-defined events loaded in this radio.
  • Page 21 selectable alert reference chart Event Description Event Code Level Default Enable/Disable Advisory Disable Administrative Message Watch Avalanche Watch ENABLE Avalanche Warning Warning ENABLE Warning Biological Hazard Warning ENABLE* Boil Water Warning Warning ENABLE Blizzard Warning Warning ENABLE Child Abduction Emergency Advisory ENABLE Warning...
  • Page 22 Warning Hazardous Materials Warning ENABLE* Watch Hurricane Watch ENABLE Hurricane Warning Warning ENABLE* High Wind Watch Watch ENABLE High Wind Warning Warning ENABLE Iceberg Warning Warning ENABLE Industrial Fire Warning Warning ENABLE* Advisory Local Area Emergency ENABLE* Warning Law Enforcement Warning ENABLE* Warning ENABLE*...

  • Page 23: Load Default

    “DEFEAT SIREN” or “SIREN LEVEL” menus. REVIEWING AN ALERT MESSAGE The SFA1180 S.A.M.E. Weather Alert Radio can store up to 10 different alerts (with overlapping effective times) in memory. If the radio receives a new alert while a previous alert is still active, it automatically overrides and displays the new alert in scrolling text.
  • Page 24 USB port. Please refer to your device user manual before you attempt to charge them. 2) It is normal for the SFA1180 to be warm while the USB port is in use and charging your smart phone or portable device.

  • Page 25: Using The Flashlight

    USB CHARGE message and the control buttons will not function during charging except button. 4) After you remove the external device you attached to SFA1180 for charging, if unit still keeps in USB charging mode, tap the button to exit, “USB CHARGE”...
  • Page 26 4. Avoid leaving your unit in direct sunlight or in hot, humid or dusty places. 5. Keep your unit away from heating appliances and sources of electrical noise such as fluorescent lamps or motors. CAUTION: Never allow any water or other liquids to get inside the unit while cleaning.

  • Page 27: Troubleshooting Guide

    TROUBLESHOOTING GUIDE If you experience difficulties in the use of this music system please check the following or call 1-800-777-5331 for Customer Service. Symptom Possible Cause Solution The built-in rechargeable Recharge the built-in rechargeable The unit does battery is low and the "AA" battery and replace all 3 "AA"...

  • Page 28: Specification

    This product is manufactured, distributed or sold by SPECTRA MERCHANDISING INTERNATIONAL, INC., official licensee for this product. All right, title and interest to use the “First Alert” logo trademarks and the “First Alert” trade dress are exclusively licensed by BRK Brands, Inc. and are used under license from BRK Brands, Inc..
  • Page 29 This warranty is valid only in accordance with the conditions set forth below: The warranty applies to the SPECTRA product only while: It remains in the possession of the original purchaser and proof of purchase is demonstrated. It has not been subjected to accident, misuse, abuse, improper service, usage outside the descriptions and warnings covered within the owner’s manual or non-SPECTRA approved modifications.
