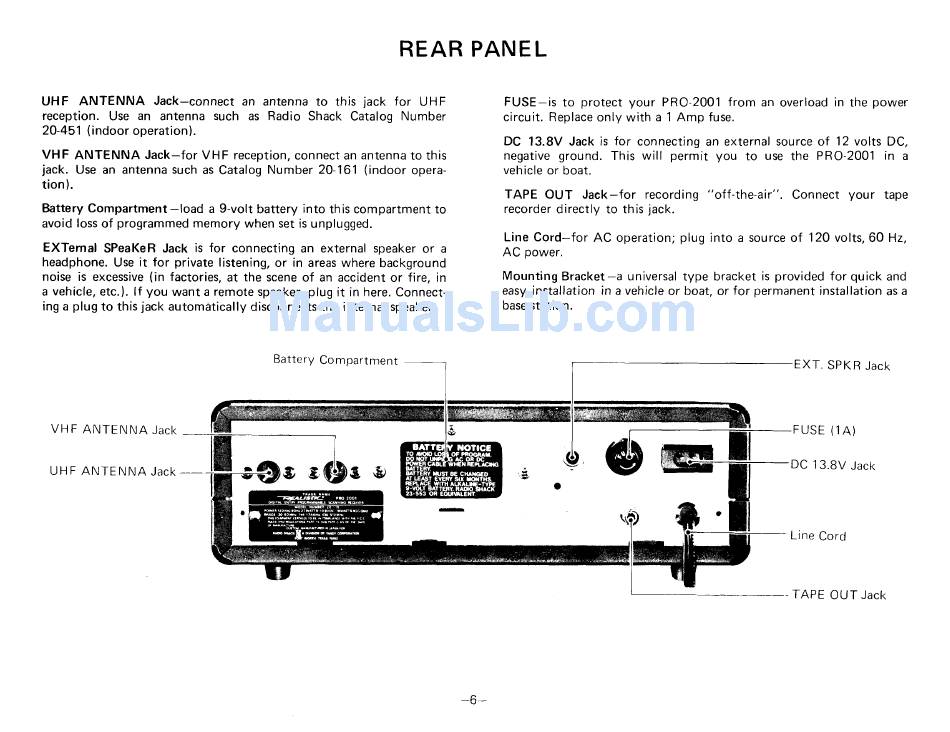

Rear Panel - Realistic PRO-2001 Owner's Manual

UHF ANTENNA Jack-connect an antenna to this jack for UHF
reception. Use an antenna such as Radio Shack Catalog Number
20-451 ( i ndoor operation ).
V H F A N T E N N A J a c k - f o r V H F r e c e p t i o n , c o n n e c t a n a n t e n n a t o t h i s
jack. Use an antenna such as Catalog Number 20-161 (indoor opera-
t i o n ) .
Battery Compartment-load a 9-volt battery into this compartment to
avoid loss of programmed memory when set is unplugged.
EXTernal SPeaKeR Jack is for connecting an external speaker or a
headphone. Use it for private listening, or in areas where background
noise is excessive (in factories, at the scene of an accident or fire, in
a vehicle, etc.). lf you wanta remote speaker, plug it in here. Connect-
ing a plug to this jack automatically disconnects the internal speaker.
V H F A N T E N N A J a o < _
U H F A N T E N N A J A C K -
F U S E - i s t o p r o t e c t y o u r P R C - 2 0 0 1 f r o m a n o v e r l o a d i n t h e p o w e r
c i r c u i t . R e p l a c e o n l y w i t h a 1 A m p f u s e .
DC 13.8V Jack is for connecting an external source of 12 volts DC,
n e g a t i v e g r o u n d . T h i s w i l l p e r m i t y o u t o u s e t h e P R O - 2 0 0 1 i n a
v e h i c l e o r b o a t .
TAPE OUT Jack-for recording "off-the-air". Connect your tape
r e c o r d e r d i r e c t l y t o t h i s j a c k .
L i n e C o r d - f o r A C o p e r a t i o n ; p l u g i n t o a s o u r c e o f 1 2 O v o l t s , 6 0 H z ,
AC power.
Mounting Bracket-a universal type bracket is provided for quick and
easy installation in a vehicle or boat, or for permanent installation as a
base station.
E X T . S P K R J a c k
r- u)tr
( 1 A )
1 3 . 8 V J a c k
L i n e C o r d
- - - T A P E O U T J a c k
REAR PAN E L
B a t t e r y C o m p a r t m e n t
i
I ,s s 69e .p
- 6 -
