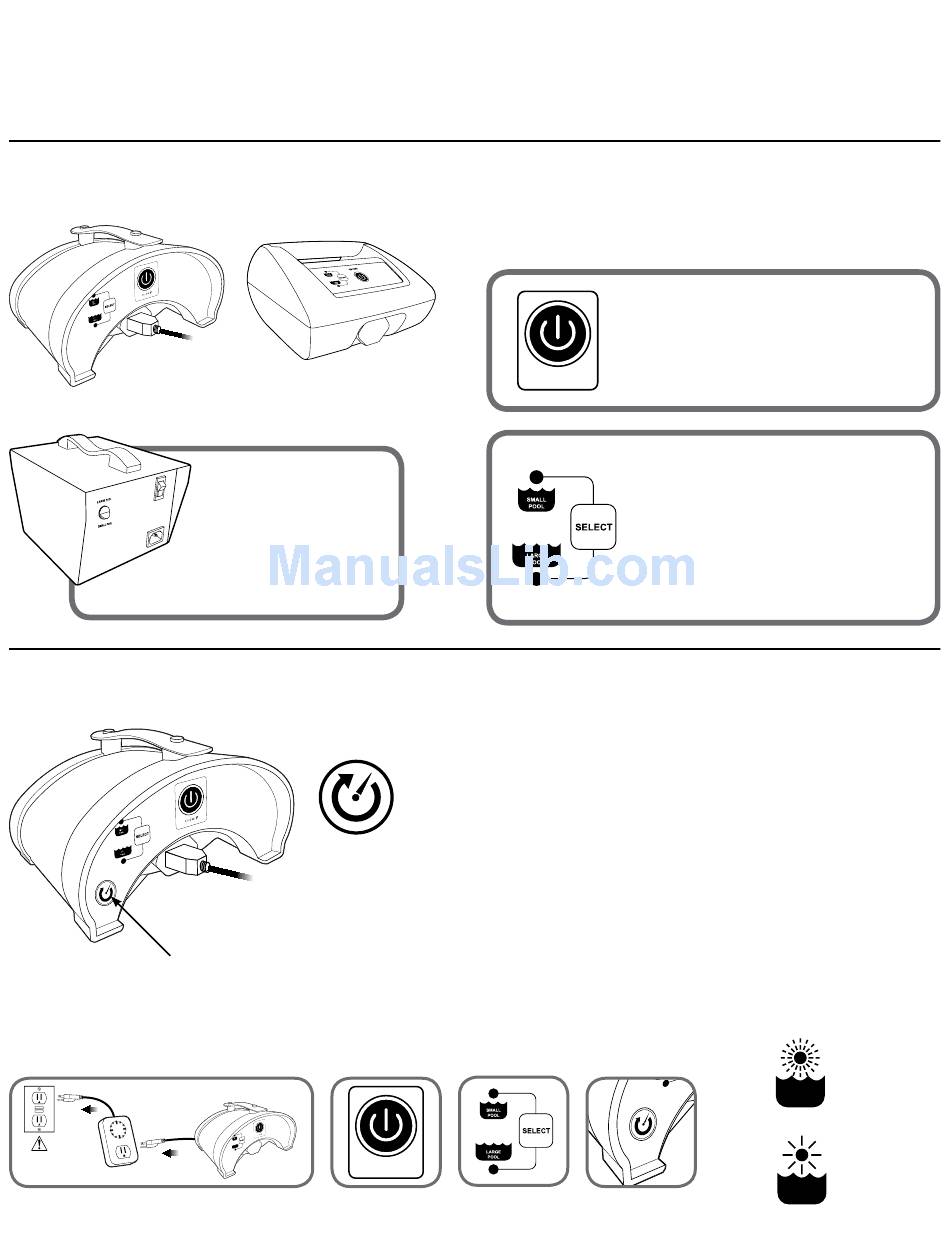

STANDARD POWER SUPPLY + EXTERNAL RUN BUTTON FEATURE
(A78003)
External Run
Button
1

POWER SUPPLY OPERATION

STANDARD POWER SUPPLIES
(A78080)
Press the switch into the
ON position. The light will
illuminate red on the switch.
The cleaning cycle will run
a for two (2) hours and
automatically turn off when
complete.
2
ON / OFF
1
ON / OFF
2
= 1 Hour Shut-off
= 2 Hour Shut-off
(select models)
If your power supply has an EXTERNAL RUN button, then it is capable of connecting
to any *external timer. It is recommended to do the following (in order) to run this
feature:
1.
Connect the external timer to your GFCI outlet, then the power supply to the external timer.
2.
Turn the power supply ON
3.
Press the SELECT button for either the Large Pool or Small Pool cycle.
4.
After the cleaner starts, press the EXTERNAL RUN button and the light for the cleaning
selection you've made should now be blinking. This indicates the cleaning cycle will now
perform the pre-selected 1 or 2 hour program at the programmed start time which your
external timer is set to run.
To exit this mode, simply press the EXTERNAL RUN button again and the cleaning cycle
durations will be set to their original factory settings. The light should stay continuous
and not blink anymore. *Please note that the external timer is not included with the
cleaner and must be purchased separately.
3
= 1 Hour Shut-off
= 2 Hour Shut-off
Your cleaner is equipped with one of the
power supplies illustrated in this section
Press this button first to activate the power
supply This button turns the power supply
ON / OFF.
Press the SELECT Button after turning
the power supply ON. The Select button
activates the Large Pool / Small Pool cleaning
cycles. When the cleaning cycle is running,
the indicator light will stay lit on either Large
Pool or Small Pool. (solid light)
SMALL POOL = 1 HOUR SHUT-OFF
LARGE POOL = 2 HOUR SHUT-OFF
4
Blinking Light:
ACTIVATED
Solid Light:
DE-ACTIVATED
