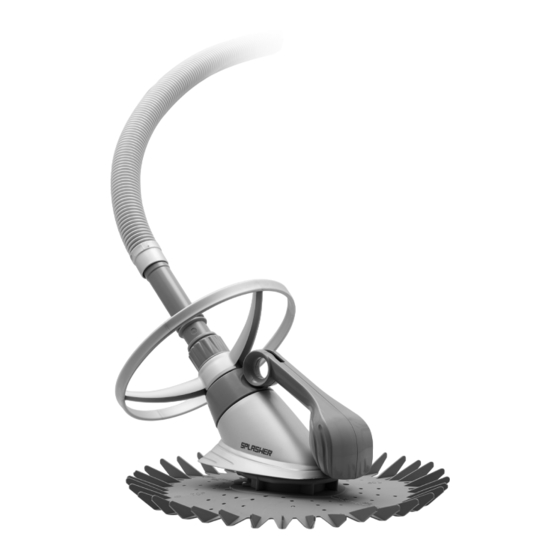

Thank You for entrusting us with keeping your pool clean. We
strive to enhance your pool experience by keeping your pool
environment healthy for you, your family and your friends. Please
read this Quick Start Manual in its entirety to ensure proper
operation and care of your cleaner. Please feel free to leave a
review online.
FOR YOUR RECORDS, PLEASE KEEP A COPY OF YOUR
SERIAL NUMBER AND DATE OF PURCHASE HERE
IMPORTANT:
PLEASE READ BEFORE OPERATING CLEANER
Advertisement
Table of Contents
Related Manuals for Aqua Products Splasher
Summary of Contents for Aqua Products Splasher

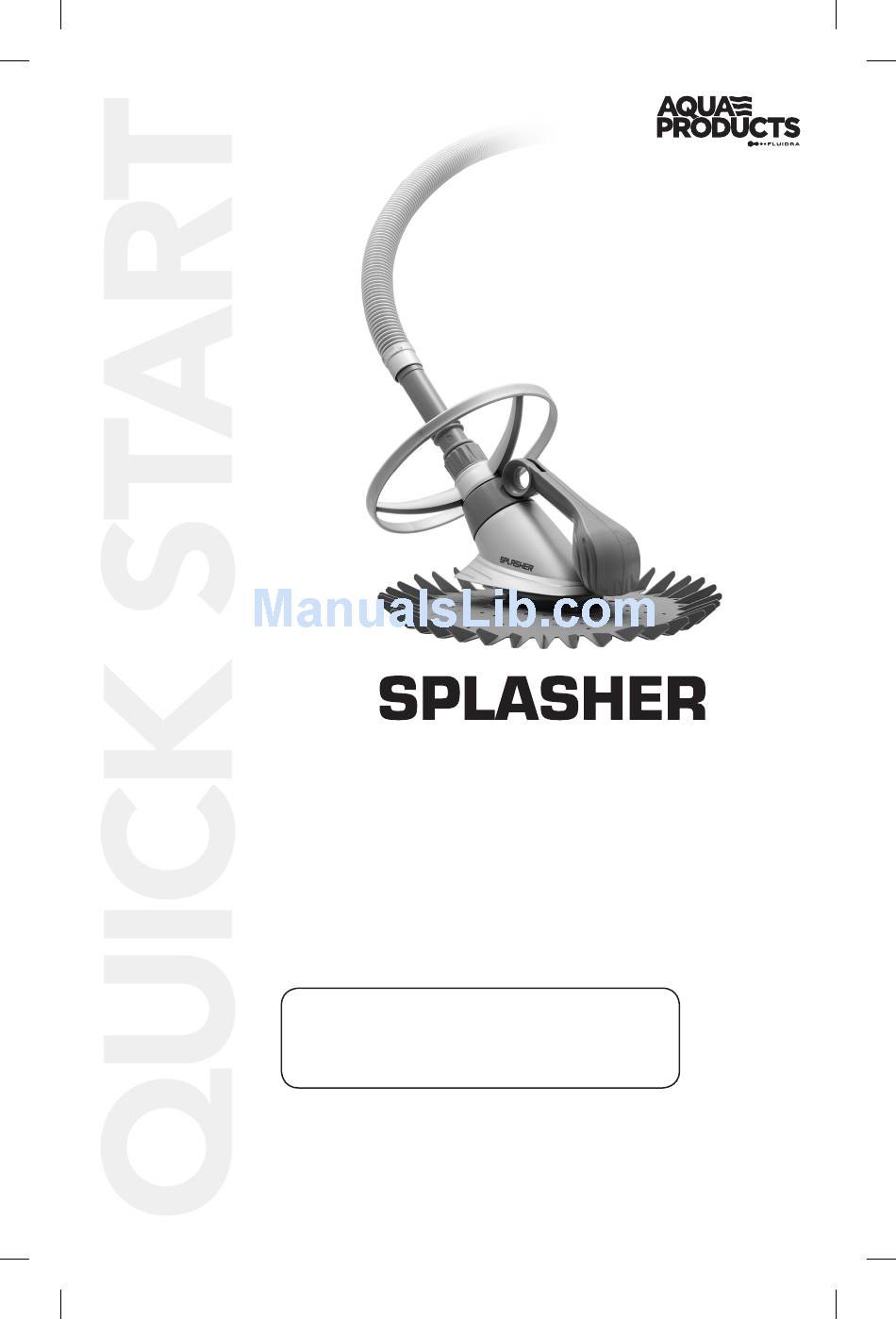

- Page 1 Thank You Thank You for entrusting us with keeping your pool clean. We strive to enhance your pool experience by keeping your pool environment healthy for you, your family and your friends. Please read this Quick Start Manual in its entirety to ensure proper operation and care of your cleaner.
-
Page 2: Table Of Contents
PRODUCT OVERVIEW ................04 Features and benefits of your SPLASHER ..........04 IMPORTANT WARNINGS AND SAFETY INFORMATION ....04 How to safely operate the SPLASHER Automatic Pool Cleaner ................04 GENERAL INSTALLATION CHECKS ............. 05 Pre-Installation Check List ................05 Post-Installation Check List ................ - Page 3 Failure to follow these instructions or improper installation of the cleaner can result in damage to the pool finish or the vinyl liner, Aqua Products disclaims any liability for repairs or replacement to any of these structures or components of the...
-
Page 4: Product Overview
1 year manufacturer’s warranty IMPORTANT WARNINGS and SAFETY INFORMATION How to safely operate the SPLASHER Automatic Pool Cleaner Attention Installer: This guide contains important information about the installation, operation and safe use of this product. This information should be given to the owner and/or operator of this equipment after installation of the pool cleaner. -
Page 5: General Installation Checks
Failure to follow these instructions or improper installation of the cleaner can result in damage to the pool finish or the vinyl liner, Aqua Products disclaims any liability for repairs or replacement to any of these structures or components of the customer’s pool. -
Page 6: Assembly Of Your Splasher
SPLASHER Components SPLASHER Components and Spare Parts diagram Code Description 630-9080 Hose Weight 570-0007 Easy Out Jogger 630-9005 Flow Control Valve 630-6210 1m Unifit Hose 630-9068 Diaphragm Round 630-9069 Inlet Plate 630-9079 Cartridge 630-9067 Inner Tube 630-9083 Main Body 630-9073... -
Page 7: Hose Assembly
(picture 5) NOTE: The deflector ring can be removed and replaced with a SPLASHER cone to enhance performance, depending on pool shape 6. -
Page 8: Splasher Fitment And Positioning
ADJUSTMENTS Flow Control Valve The flow control valve is supplied set at its most commonly used setting. Should SPLASHER not operate continuously at this setting adjust the flow control valve by changing the positions of the springs to achieve optimum movement of the SPLASHER. Should the SPLASHER only operate (or fail to operate) with the hose connected directly to the weir, this indicates that the filtrations system is in need of ser- vicing, there might be leaks in the system or the circulation pump is underpowered. -
Page 9: Routine Maintenance
Backwashing and cleaning the weir and pump baskets should be done weekly. • When replacing the diaphragm or any part of your SPLASHER it is advised that you let your local pool dealer replace it for you. This is due to the complexity of the replacement. -
Page 10: Troubleshooting
• Check all baskets for debris (pump and weir baskets). • Check that the diaphragm is clear of all debris. • Check the SPLASHER diaphragm for wear and tear, and if worn, replace the diaphragm. SPLASHER does not move •... - Page 11 Adjust the hose length by either adding or removing a hose. • Ensure that the aimflow nozzle is not interfering with the movement of the SPLASHER. If so, adjust the aimflow nozzle to direct the flow away from the unit. SPLASHER •...
- Page 12 • Remove or add one hose section. pool stairs • Using your flow control valve, increase or decrease the flow to your SPLASHER within the maximum/minimum range. • Ensure correct hose length. Change the hose length by adding or removing sections of the hose.
-
Page 13: Customer Care
CUSTOMER CARE For questions regarding our products please feel free to contact us. Aqua Products, Inc. 280 Grove Ave Cedar Grove, NJ 07009 United States P: 1-800-221-1750 E: customerservice@aquaproducts.com W: www.aquaproducts.com... -
Page 14: Warranty Information
SPLASHER 1 YEAR WARRANTY (Attach sales receipt as proof of purchase date) Your new SPLASHER was carefully checked before shipment. Upon unpacking, if any parts are missing or found to be defective notify Aqua Products immediately. Please consult owner’s manual for instructions on the installation and operation of this product. - Page 15 8. The limited warranty is valid and enforceable only on cleaners made by Aqua Products. 9. This limited warranty is applicable only if the cleaner is purchased from a Aqua Product dealer.
-
Page 16: Warranty Card
Registration of 12 month warranty This certificate must be completed and returned within 14 days of date of purchase. I certify that my Splasher was purchased on ____________________ and that i have read and understood the terms of the Splasher warranty provided. -
Page 17: Notes
NOTES... - Page 18 NOTES...
- Page 19 NOTES...
- Page 20 For any additional questions 280 Grove Avenue or concerns please call Cedar Grove, NJ 07009 1-800-221-1750 1-800-221-1750 www.aquaproducts.com...
