HD-10
Owner s Manual
V
M
I
irgin
usical
nstruments

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HD-10 and is the answer not in the manual?

Questions and answers

Allen
May 23, 2025

Replacement parts Hitman 10 Part number HD10cym12sc

0

Subscribe to Our Youtube Channel

Related Manuals for Hitman HD-10

Summary of Contents for Hitman HD-10

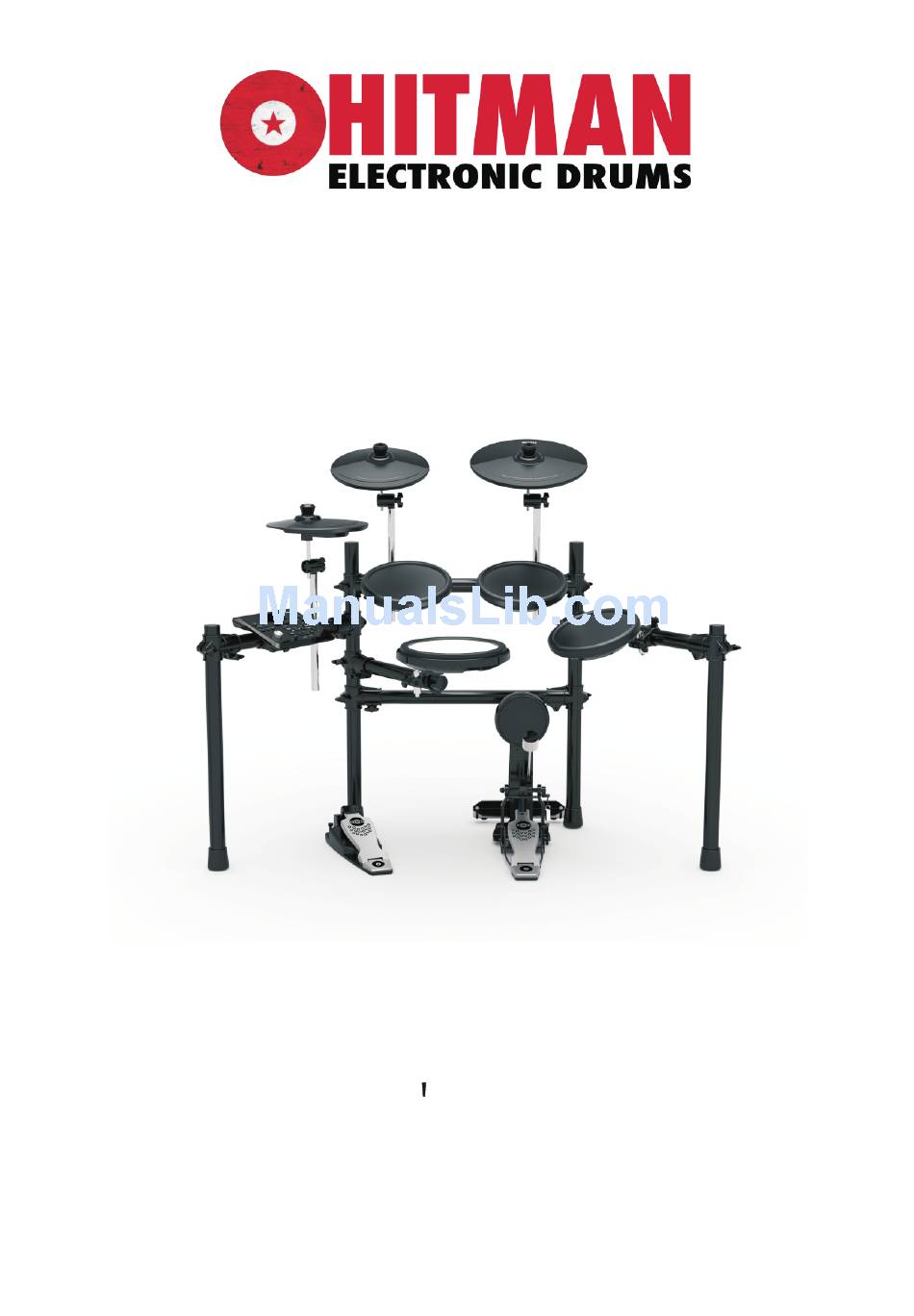

  • Page 1 HD-10 Owner s Manual irgin usical nstruments...

  • Page 2: Safety Precautions

    Precaution Thank you for purchasing this electronic instrument.For perfect operation and security, please read the manual carefully and keep it for future reference. Safety Precautions CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage”within the product s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 FCC STATEMENT 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation.

  • Page 4: Table Of Contents

    Contents Assembly Instruction.................... Panel Controls ..................... Connect........................Connecting the Power Supply................Connecting an Amplifier..................Connecting a CD Player, etc.(AUX In jack)............USB MIDI......................Using Headphones................... Begin Playing the Drums ..................Switch the Power On ..................Selecting Drum Kits ..................ENTER Button ....................BACK Button ....................

  • Page 5: Assembly Instruction

    Assembly Instruction Attach the cymbal arms to the drum frame into the indicated positions Attach the cymbals to the cymbal arms as shown. Align the holes in Snare Drum Pad and the three Tom Drum Pads and insert into the pole on the Drum Frame as shown.
  • Page 6 Assembly Instruction Attach the Drum Pads in the positions shown below. Insert the rod of sound module stand into the Drum Frame clamp as shown, then tighten. Position Hi-hat control pedal on the left and Kick pedal on the right. Hi-hat control pedal Kick pedal...
  • Page 7 Assembly Instruction TO RIDE TO CRASH Hi-hat Crash TO HH Ride TO TOM1 Tom1 Tom2 TO TOM2 Tom3 TO TOM3 Snare TO SNARE Hi-hat Control Kick TO HHC TO KICK Hi-Hat Foot Controller Pressing the foot controller will produce a hi-hat closed sound. A Hi-hat open sound will result if you hit the high hat without pressing foot controller.

  • Page 8: Panel Controls

    Panel Controls Top Panel HD-10 CLICK TEMPO/TAP SETUP ENTER RECORD PLAY/STOP COUNT BACK SONG DRUM OFF CRASH RIDE TOM1 TOM2 MASTER VOLUME TOM3 HI-HAT HI-HAT SNARE KICK CONTROL Drums selection Rear Panel...
  • Page 9 Panel Controls 1. MASTER VOLUME Adjust the overall volume of the drum module with this pot. It controls the line outputs and the headphone output. 2.[CLICK] BUTTON This button turns the metronome on and off at any time, except from within the top level of Click Edit mode.
  • Page 10 Panel Controls Rear Panel 15. USB Connect to a Tablet, Smartphone, laptop etc for two-way MIDI communication. Allows for so many musical possibilities such as triggering drum sounds from software, recording and sequencing, millions of Apps etc.. WIRING HARNESS Where the pads and cymbals wiring harness connects to the Drum CONNECTION Module.
  • Page 11 Panel Controls The Display Parameter/Value Mode K i t S e l e c t K i t E d i t S e t u p Te m p o S o n g C l i c k 1.

  • Page 12: Connect

    Connect Connecting the Power Supply AC POWER Make sure the power is switch OFF. Connect the power adaptor to the “DC 9V”jack on the rear panel. Connecting an Amplifier When listening to the drum kit with an amplifier, connect amplifiers to the LINE OUT jack on the rear panel.

  • Page 13: Usb Midi

    Connect USB MIDI Your drum module is USB class-compliant. This means you can plug it into a USB class-compliant host (for example, a laptop, tablet or smartphone) and it should be recognized immediately. There are no drivers to install, you simply plug n' play. For example, if you connect the drum module to a computer, you can trigger drum libraries on the computer or record your performance into a MIDI sequencing application.

  • Page 14: Begin Playing The Drums

    Begin Playing the Drums Switch the Power On With everything set up and ready to go, it's time to start playing the drum kit. Locate the on/off power switch on the drum module and switch the power on. The drum module is ready to operate when the display shown below appears.

  • Page 15: Selecting Drum Kits

    Begin Playing the Drums Selecting Drum Kits Ready to explore the sound module some more? Then let's cover the rest of the features. The unit comes with 45 preset drum kits, any of which may be edited to suit your tastes. If you re not already at the Kit Select display, press the [Back] button several times to get there.

  • Page 16: Selecting Kit Edit

    Begin Playing the Drums Selecting Kit Edit In kit mode press the [ENTER] button, and the LCD will display “INST” (Instrument). Now you can use the [+/-] buttons to select “VOL”(Pad Volume), “RVRB” (Reverb Level), “CHRS”(Chorus Level),“PAN”(Pan),“PICH”(Pitch),“DCAY” (Decay),“COPY” (Copy), and “RSET”(Reset). Mode Parameter/Value ENTER...
  • Page 17 Begin Playing the Drums Pad Volume (VOL) : the LCD will display “INST” In kit mode press the [ENTER] button Use the [-/+] buttons to select“VOL”. 2. Press [ENTER] button again. 3 There are two ways to choose a drum at this point: Use the following buttons to select the desired pad.
  • Page 18 Begin Playing the Drums E. Pan (PAN) In the k mode, press the [ Enter ] button, use the [+/-] buttons to select“PAN” Press the [ Enter ] button, use the pad buttons to select a pad (For example: SNARE). se the [-/+] buttons to set a value( Range: 000~016 ) Press...
  • Page 19 Begin Playing the Drums I. Resetting the Drum Kit(RSET) If you have made changes to the current drum kit and decide you want to get back to the factory starting point, we provided a way to do this. In the k mode, press the [ Enter ] button, use the [+/-] buttons to select“RSET”.

  • Page 20: Setup Button

    Begin Playing the Drums [SETUP] Button In this mode, you can set the Drum Pad Trigger, Effects, Local On/Off, Channel selection, Power On/Off and Resetting functions. A. Trigger Setting The trigger functions allow you to adapt how the drum module responds to your playing style.
  • Page 21 Begin Playing the Drums CANC Sensitivity: Simply put, set this to as high a value as you can. The lower the value, the less sensitive the pad will be. If you find the pad overly sensitive, - including the unexpected triggering of the pad you are playing, - try reducing the sensitivity of the pad a little.
  • Page 22 Begin Playing the Drums B. Defeating the Effects for All Drum Kits (EFCT) We have added reverb effects to many of the drum kits. However, it's possible you might want to turn off the reverb for all of the drum kits and process the audio with an external effects unit.
  • Page 23 Begin Playing the Drums D. (CHAN) Select MIDI output channel（01-16） “TRIG” 1. Press the [Setup] button: the LCD will display 2. Use the [-/+] buttons to select the “CHAN” menu. 3. Press the [Enter] and use the [-/+] buttons to select 001-016 and OFF. 4.
  • Page 24 Begin Playing the Drums F. Restoring All Trigger Settings to the Factory Defaults (RSET) If you have set up your drum kit in a new location, such as on a stage with a drum riser, you may find that you need to readjust your trigger crosstalk settings, for example. If you would prefer to start over from the factory trigger settings, follow this procedure: “TRIG”.

  • Page 25: Song Button

    Begin Playing the Drums [SONG] Button Your drum provides 50 (001-050) preset songs, and 2 (DEM1/DEM2) song demos. Song Selection Here how to select and listen to the songs: 1. Press the [SONG] button. The display will show the number of the last song selected. 2.
  • Page 26 Begin Playing the Drums B. Accompaniment Part Volume (ACCV) If you d like to adjust the volume of the pre-recorded accompaniment instruments while listening to or playing along with the songs, here is what to do: Press the [Song] button the the LCD will display “S001” 2.
  • Page 27 Begin Playing the Drums D. Reset All Mix Parameters (REST) If you d like to restore the default values for all of the Mix parameters, follow these steps: 1. Press the [Song] button the the LCD will display “S001” 2. Press the [Enter] button and use the [-/+] buttons to select the “RSET” menu 3.

  • Page 28: Click Button

    Begin Playing the Drums [CLICK] Button Press the [CLICK] button to turn on or turn off metronome. Click edit It is possible to adjust the metronome volume, change its assigned instrument, or select a different time signature. To access these parameters you will need to press [CLICK] button for two seconds.
  • Page 29 Begin Playing the Drums Mode Parameter/Value K i t S e l e c t K i t E d i t S e t u p Te m p o S o n g C l i c k C.

  • Page 30: Tempo/Tap Button

    Begin Playing the Drums [TEMPO/TAP] Button The tempo of the click or the current song may be set by using one of several methods. Each of these procedures is detailed in the paragraphs ahead: A. Setting the Tempo with the [-/+] Buttons For making precise adjustments to the tempo, use this procedure: 1.

  • Page 31: Recording Function

    Begin Playing the Drums Recording Function Press the [RECORD] button to enter the record mode，then use the [+/-] buttons to change the menu. Mode Parameter/Value RECORD K i t S e l e c t K i t E d i t S e t u p Te m p o S o n g...
  • Page 32 Begin Playing the Drums D. “RMOD” he LCD will display “RECD”, Press the [RECORD] button t Use the [+/-] button to select “RMOD”, then press the [ENTER] button and use the [+/-] button to select“SYNC”or “AUTM”. SYNC ------ If you use the Sync mode, it will start recording when you start playing the instrument. AUTM ------ AUTM Mode means that After four beats it will automatically start recording.

  • Page 33: Count Button

    Begin Playing the Drums [COUNT] Button Count the number of hitting drums in the certain period. 1. Press the [COUNT] button, the LCD will display“CONT”. COUNT Mode Parameter/Value K i t S e l e c t K i t E d i t S e t u p Te m p o S o n g...

  • Page 34: Factory Reset

    Assembly Instruction Start to Play the Drum Connect Factory Reset There is a simple way to restore everything in the drum module to the factory settings. This includes all trigger settings, drum kits, effects, and the song you recorded. If you are certain you want to do this, follow these steps: 1.

  • Page 35: Drum Kits List

    Drum Kits List Name Name Kit # Kit # Mute Standard 1 Acoustic 1 Acoustic 2 Mute Standard 2 Room Electronic 1 Nine-oh Mute Standard 3 Rock 1 Jazz 1 Dance Club Jazz 2 Jazz Latin 1 Rap-hop Power Rock 1 Early R&B Latin 2 Electronic 1...

  • Page 36: Voice List

    Voice List Group 1: Kick Drums 21 Electro-pop snare 032 BD_DP50_Fatso 22 Rap-hop snare 033 BD_DP50_Tape Acoustic kick 1 034 BD_DP50_Warm_Fatso 23 Analog snare 1 Acoustic kick 2 035 BD_DP50_Warm_Tape 24 Modern R&B snare Room kick 1 25 Rock snare 5 036 BD_DP50_X Room kick 2 26 Electronic snare 1...
  • Page 37 Voice List 54 Modern R&B rimshot Group 3: Toms 35 Rock tom 4 (mid) 55 Trash rimshot 36 Rock tom 4 (low) 01 Acoustic tom 1 (high) 56 Drum box rimshot 1 37 Rock tom 5 02 Acoustic tom 1 (mid) 57 8-oh rimshot 38 Modern R&B tom (high) 03 Acoustic tom 1 (low)
  • Page 38 Voice List 71 Electronic tom 1 (mid) 105 Tom_DP50_03_warm_Fatso 09 Mid splash 72 Electronic tom 1 (low) 106 Tom_DP50_01_warm_Tape 10 High splash 107 Tom_DP50_02_warm_Tape 73 Electronic tom 2 (high) 11 Crispy splash 108 Tom_DP50_03_warm_Tape 12 Trash splash 74 Electronic tom 2 (mid) 109 Tom_DP50_01_X 13 Small splash 75 Electronic tom 2 (low)
  • Page 39 Voice List 76 000fd_Rim 43 Pie tin ride 10 Room hat foot 77 0010c_Rim 44 Electronic ride 2 11 Room hat open 78 000f7_Rim 45 Crunch ride 12 Room hat splash 79 0010e_Rim 46 Electronic crash-ride 13 Rock hat 1 closed 80 000f8_Rim 47 Electronic ride 3 14 Rock hat 1 foot...
  • Page 40 Voice List 43 Boom snap hat splash 77 Electro-pop hat foot 11 Triangle (open/mute) 44 Rock hat 3 closed 78 Electro-pop hat open 12 Woodblock (high) 45 Rock hat 3 open 79 Electro-pop hat splash 13 Woodblock (low) 46 8-oh hat closed 80 Modern R&B hat closed 14 Woodblock (high/low) 47 8-oh hat foot...
  • Page 41 Voice List 22 Kit3_Tom1_Rim 56 Kit14_Tom2_Rim 90 Kit26_Tom3_Rim 23 Kit3_Tom2_Rim 57 Kit14_Tom3_Rim 91 Kit27_Tom1_Rim 24 Kit3_Tom3_Rim 58 Kit15_Tom1_Rim 92 Kit27_Tom2_Rim 25 Kit4_Tom1_Rim 59 Kit15_Tom2_Rim 93 Kit27_Tom3_Rim 26 Kit4_Tom2_Rim 60 Kit15_Tom3_Rim 94 Kit28_Tom1_Rim 27 Kit4_Tom3_Rim 61 Kit17_Tom1_Rim 95 Kit28_Tom2_Rim 28 Kit5_Tom1_Rim 62 Kit17_Tom2_Rim 96 Kit28_Tom3_Rim 29 Kit5_Tom2_Rim...

  • Page 42: Style List

    Style List Song Name/Style Song Name/Style Number Number Rock Shuffle Swing Reggae Surf Pop English Waltz Techno Tango 60's Rock Rhythm & Blues Hard Rock Polka Pop Bossa Bluegrass 80's Rock Bossanova 16 Beat ClubLatin Pop Shuffle Country Guitar Pop DancePop Modern 6/8 DiscoParty...

  • Page 43: Midi Implementation Chart

    MIDI Implementation Chart Function Transmitted Recognized Remarks Basic Default 1-16CH 1-16CH Channel Changed 1-16CH 1-16CH Mode Default Mode 3 Mode 3 Messages Altered ********** Note 0~127 0~127 Number :True voice ********** 0~127 Velocity Note ON O 9nH,v=1~127 O 9nH,v=1~127 Note OFF O 8nH,v=0 O 9nH,v=0 or 8nh Affter Key's...

  • Page 44: Specifications

    Specifications ☆ 1 Snare with RIM Function, 3 TOM Pads with RIM Function, Drum Pads: 2 Cymbal Pads with RIM Function and choke Function, 1 Hi-Hat Pad, 1 Hi-Hat Pedal, 1 Kick Drum Pedal ☆ Display: Multi-function Backlit LCD Display ☆...
