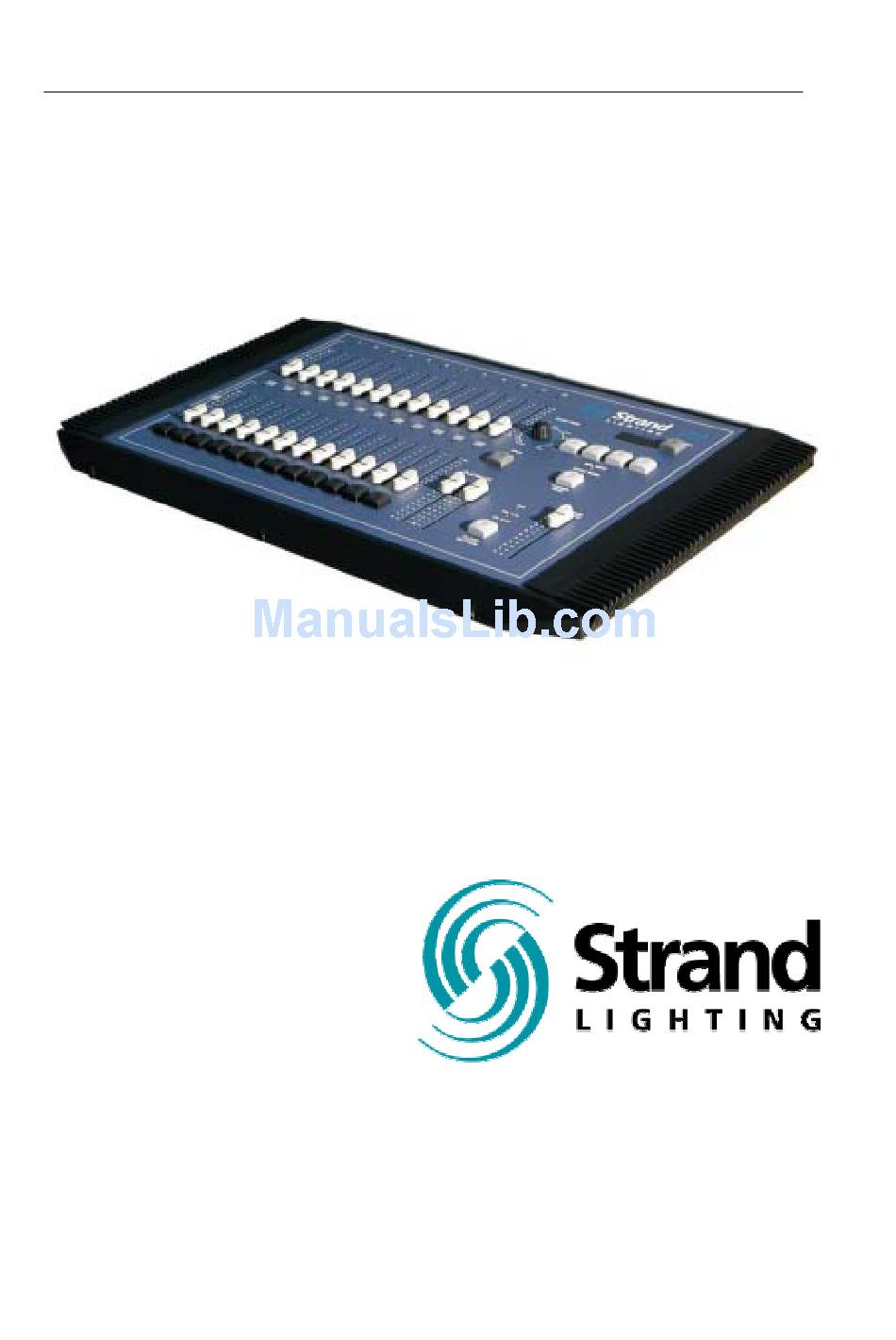

- Page 1 100 Console Operations Manual Manual Part No. 24-004-0816...
-
Page 2: Welcome
Please look through all the documents and keep them safely for future use. If you have any difficulties, please do not hesitate to contact Strand Lighting or any authorized Strand service center for advice. -
Page 3: Offices And Service Centers
Via Delle Gardenie S.N.C. Pontina Vecchia KM 33,400 00040 Pomezia, Italy Tel. +39-0691-9631 Fax +39-0691-47138 Toronto Strand Lighting (Canada) Inc 2430 Lucknow Drive #15, Mississauga, Ontario, L5S 1V3 Canada Tel. +1 905-677-7130 Fax. +1 905-677-6859 Strand 100 Console Manual Page 3... -
Page 4: Table Of Contents
Timed Crossfades....................12 Single Scene Operation..................13 Hold ........................14 Effect – Single Scene Mode ................. 15 Effect – Two Scene Mode..................16 Conclusion ....................... 16 Appendix A....................... 17 Control Input ......................17 Index ........................18 Page 4 Strand 100 Console Manual... -
Page 5: Getting Started

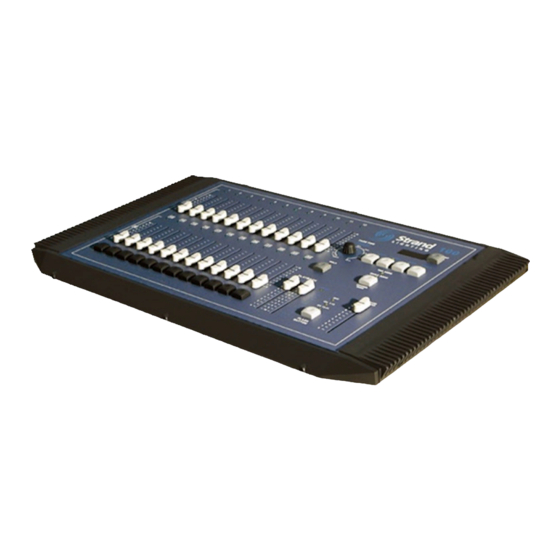

Getting Started Concept The Strand 100 series console is a small, simple to use, preset lighting desk. It can either control 24 channels in 1 scene or 12 channels in 2 scenes with the ability to expand scenes with the Hold feature. The console also has the ability to run a single effect. -
Page 6: Face Plate
Face Plate Back Plate Page 6 Strand 100 Console Manual... -
Page 7: Connect Power
Connect the male end to the electrical service. Connect DMX Connect the DMX cable from the dimmer rack input to the DMX output of the console. (See Appendix A for complete DMX512 connector information.) Strand 100 Console Manual Page 7... -
Page 8: Rack Mounting
Rack Mounting Below is a drawing that illustrates the removal of the edge pieces for rack mounting. Turning the Console On Switch the rocker switch to the ON position. Page 8 Strand 100 Console Manual... -
Page 9: Layout
Layout Strand 100 Console Manual Page 9... -
Page 10: Quick Guide
When running the effect, this will allow the operator to set the rate at which the effect is running. See the LED display for time / speed readout. Page 10 Strand 100 Console Manual... - Page 11 LEDs also are indicators of the channel mode as well as when all features are activated. All LEDs are green. Black Out Button – this will allow the operator to instantly stop all fader output. Press again to restore fader output. Strand 100 Console Manual Page 11...
-
Page 12: Operation
For timed crossfades – use the same procedure as the manual crossfade but with the fade timer set to the preferred fade time. The LED display will show the fade time that is set. Timed crossfades can vary from 0 (Manual) to 15 minutes. Page 12 Strand 100 Console Manual... -
Page 13: Single Scene Operation
The fader output of the fader that is being adjusted will be shown in the LED display on a scale from 0 to 100. Refer to the HOLD section for crossfade information. -
Page 14: Hold
The LED display will show the fade time that is set. Remember: Hold can only be accomplished with both faders in this position. Page 14 Strand 100 Console Manual... -
Page 15: Effect - Single Scene Mode
(See the colored information beside the Playback B). Set current fader levels to include only the faders that will be in the effect. Set them to any level from 1 to 100. Press one of the effect buttons (Forward, Reverse, Random, Bounce). -
Page 16: Effect - Two Scene Mode
Once the effect is running, adding new fader levels will add those faders into the effect. Conclusion This concludes the instructional manual for Strand’s 100 series console. Page 16 Strand 100 Console Manual... -
Page 17: Control Input
SD 6 packs (or other DMX equipment) to be connected together in ‘daisy chain’ fashion. It is recommended that Control connections are not plugged or unplugged when power is applied to the dimmer pack as this may cause any connected loads to flash up momentarily. Strand 100 Console Manual Page 17... -
Page 18: Index
Quick Guide ........10 Quick Guide........10 Fader Flash Buttons Playback B / Effect Master Quick Guide ........10 Quick Guide........10 Flash Button Mode Button Quick Guide ........10 Forward ...........15 Quick Guide See Effect Options Buttons Quick Guide..........10 Page 18 Strand 100 Console Manual... - Page 19 Rack Mounting..........8 Single Scene Operation......13 Random ...........15 Quick Guide See Effect Options Buttons Reverse............15 Quick Guide See Effect Options Buttons Timed Crossfades ........12 Turning the Console On ......8 Two Scene Operation ......12 Strand 100 Console Manual Page 19...
