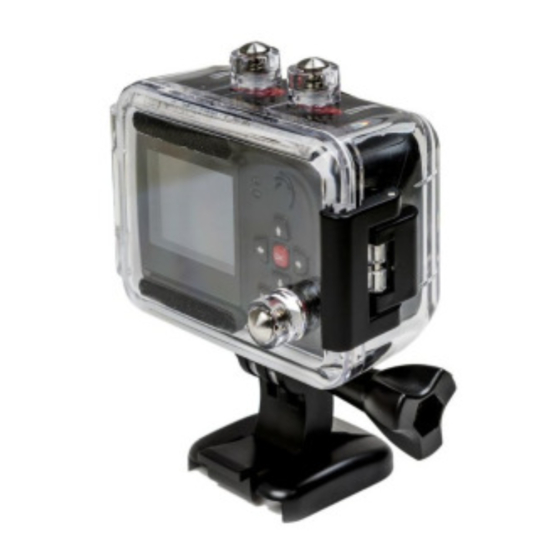

- Page 1 Neo Adventure Camera Manual...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Camera Care Camera Accessories Camera Structure Camera Features Two Way Remote Control Overview Basic Operations Photo and Video Settings Advance Menu Settings 10. Uploading Files 11. Firmware Update 12. Battery 13. Sync the Remote Control 14. Specifications... -
Page 3: Camera Care
CAMERA CARE Failure to follow these steps may result in damage to your camera. Your warranty does not cover results from user error. *The camera is not crash resistant; please avoid holding it in a crash or fall. *Do not keep the camera under damp, wet, or dusty conditions for prolong periods. *Do not expose the camera under extreme high temperatures which may cause damage of both external and internal components. - Page 4 Waterproof case: *Keep the rubber seal clean, as even if a single hair or grain of sand can cause a water leak. It is the best to clean it with non-dust cloth. *After every use in salt water, you will need to rinse the outside of the housing with fresh water and then dry. Failure to do so can eventually cause corrosion of the hinge pin and salt buildup in the seal, which can cause failure.
-
Page 5: Camera Accessories
CAMERA ACCESSORIES (See website for full range of accessories) Flat adhesive mount Curve adhesive mount Remote controller USB cable LiOn Battery *Car suction mount 1/4:” Tripod mount *Head mount *Helmet mount *Bike mount *Surfboard mount *Chest harness mount Noted: *marked are optional accessories. -
Page 6: Camera Structure
CAMERA STRUCTURE . Video Button 16. Operations Buttons 2. Photo Button 17. Down Button 3. Micro SD Card Slot 18. Menu/Delete 4. Microphone 5. Lens 6. Speaker 7. AV Out 8. HDMI 9. Right Button 10. USB 11. Power/Playback 12. Red/Status Indicator 13. -
Page 7: Camera Features
Neo Adventure CAMERA FEATURES * Mini size 68*46*33mm, about 90g * FULL HD 1080P recording * Integrated 1.5 inch LCD screen * Waterproof 60M, shockproof 2M and dustproof * Waterproof remote controller, remote distance 15-20Mfor outdoor * Two-way remote control... - Page 8 Neo Adventure CAMERA FEATURES (cont) * Sound-recognition for recording * 4x digital zoom under 720p * Fast forward, Slow-motion * Motion detection and cycle recording for car use * H.264 advanced compression , HDMI out * Lithium battery : max 2.5 hours, 1000mAh, about 2 hours under 1080p recording mode...
-
Page 9: Two Way Remote Control
TWO-WAY REMOTE CONTROL The remote control has a red indicator. It not only can send out signal but also get feedback from the camera. When the remote control sends out a signal, it flashes once. When the camera receives a signal (executive command) successfully, the red indicator flashes again. If the camera does not get signal, the remote control only flashes once. -
Page 10: Overview
OVERVIEW : Main Buttons: Power/playback button Menu/delete button Photo button Video button Photo mode Video mode Advanced setting mode USB mode Video resolution Photo resolution Micro SD card inside Metering status Default 1080p Default 5M Default central Self shot White balance Time stamp Power... -
Page 11: Basic Operations
BASIC OPERATIONS First time, before using the camera: A. Insert micro SD card. Without a card, the green indicator flashes. The camera is compatible with high speed micro SD card (class 4 or higher). B. Insert battery into the camera (Through the door in the bottom of the camera ). C. - Page 12 Noted tip: When turning on the camera, if you press the button for more than 3 seconds, the camera will turn off again. D. Recording video When the camera is on, press VIDEO button and your camera will begin to record video. The red indicator will flash.
- Page 13 E. Taking photos When camera is on, press the PHOTO button. The red indicator flashes once. It also can by controller by PHOTO Button on the remote controller. F. One button back mode When setting menu or reviewing files, just press VIDEO button once, the camera will return to the pre-record mode.
-
Page 14: Photo And Video Settings
PHOTO AND VIDEO SETTINGS - Photo *Press MENU button for photo icon. *Press OK button to go into setting menu. *Press M or VIDEO button to be back. Size: Photo setting 5 sec Self shot 10sec 20sec Triple shot ON/Off Time lapse OFF/2/3/5/10//30/60 sec... - Page 15 After choosing the Time lapse and pressing DC button once, it will take photos intermittently. The red indicator will flash once each time a photo is taking. Press the PHOTO button again, it will stop. Video *Press MENU button, you can see photo icon. *Press OK button to go into setting menu.
- Page 16 Motion detection OFF/on 1min Video duration 3min 5min Loop video Off/ON Upside down Off/ON Note: Turn “upside down” on, the LCD will be black for seconds and it is normal. *4x digital zoom: During 720p recording, you can zoom the video by LEFT and RIGHT button.
-
Page 17: Advance Menu Settings
*Fast forward, Slow-motion: When playback video, at the same time press LEFT button to choose slow motion to view video clearly: 1/2, 1/4, 1/8, 1/16, 1/32, 1/64. Press RIGHT button to choose fast forward:2x, 4x, 8x, 16x, 32x, 64x Playback Shortly press PLAYBACK button and then you can see files. -
Page 19: Uploading Files
UPLOADING FILES When connecting USB with camera successfully, there will be a connecting icon on the right up screen. Then you can find a disk in your computer. Noted tips: Before inserting the USB cable, please turn on the camera. When the camera is off, the cable is for charging only. -
Page 20: Battery
BATTERY The li-ion battery in your standard package is only partially charged. For a full charge, when the camera is off, connecting the camera with PC by USB cable. *The battery working time is about 2.5 hours with LCD off. *The battery will charge up to 80% in 1-2 hours while 100% in 4 hours. -
Page 21: Specifications
SPECIFICATIONS SHEET 1080P 1 920*1080 7 20P 1 280*720 （ ） （ ） Video resolution WVGA 8 48*480 Q VGA 3 20*240 （ ） （ ） 1080P/30fps 7 20P/60fps 7 20P/30fps ， ， ， frames WVGA/60fps QVGA/60fps H .264 advanced compression Video format （... - Page 22 Consumption 400mA@3.7V(MAX) Battery capacity 1000mAh Battery life About 3 hours Battery life for 1080p recording About 100 minutes Battery charge time About 3-4 hours Operation system(1080P) Windows XP SP2/Vista or Above/Mac OS/Win 7/APP >=Bens 4 1.5GHZ >=1GB Dimensions 68*46*33mm Camera weight w ith LCD （...
