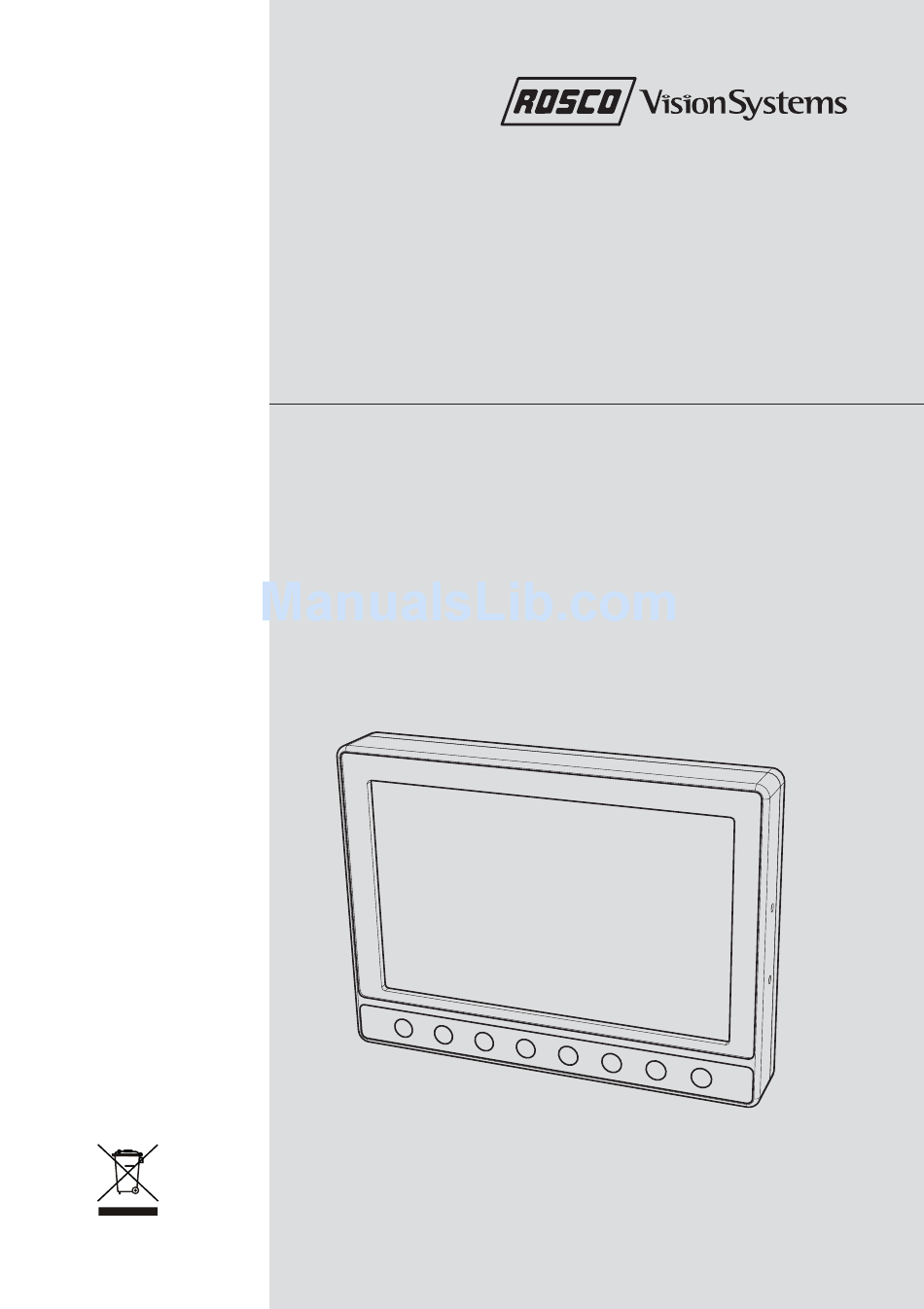

- Page 1 STSM207 7” WATERPROOF MONITOR INSTRUCTION MANUAL Thank you for purchasing this product. For correct usages and application, please read this instruction manual thoroughly. ver. 1.1 * Design and specifications are subject to change without notice. PRINTED IN KOREA...
-
Page 2: Table Of Contents
CONTENTS SAFEGUARD INSTRUCTIONS ........4 FEATURE ................6 CONTENTS ................6 FUNCTION OF EACH PART ..........7 FUNCTION ................. 8 SETTING ................16 INSTALLATION ............... 18 CONNECTION ..............20 SPECIFICATION .............. 21... -
Page 3: Safeguard Instructions
SAFEGUARD INSTRUCTIONS 7” WATERPROOF MONITOR Please read the “Safety Rules” carefully before using this product. Following the safety rules pre- WARNING vents users from damages related with the misuse of the product. It is very important to follow these safety rules. We state “Caution” and “Warning” to clarify any potential risk for a damage associated with the misuse of the product. -
Page 4: Feature
FEATURE FUNCTION OF EACH PART 7” WATERPROOF MONITOR 7” WATERPROOF MONITOR • Water Resistant (IP67), Aluminum housing • 4 Camera input (NTSC/PAL) • 2, 3, 4 Split screen function • Dimmer sensor built in • 7 inch WVGA(800x480) WIDE LCD Panel 1. -
Page 5: Function
FUNCTION 2, 3, 4 SPLIT SCREEN SWITCH 7” WATERPROOF MONITOR In the split screen, press [ ] button to see the different split like below. POWER ON/OFF CAM1 CAM4 Press [ ] button. Press [ ] button again to switch off. * If there is no video input, then the camera will CAM2 CAM3... - Page 6 NORMAL / MIRROR VIEW SWITCH 2) In the 2 split screen 1) CAM1 full screen In the 2 split screen, press [ ] button to see the OSD. In the OSD, using with [ ] button MIRROR SET CAM1 the camera position (Left or Right) could be selected. Then press [ ] button to select the MARKER SETUP CAM1...
- Page 7 ON SCREEN DISTANCE MARKER SETTING 2) Marker adjustment (Adjusting the bumper position) Warning - Press [ ] button five times, and select MARKER ADJUST menu. • The onscreen distance markers should be considered as a general reference to assist the - Press [ ] button, select H / V.
- Page 8 2) In case of TRG2 and TRG3 input, by the OSD, the full or split screen could be selected. If 4) In case of light on emergency blinker(TRG2+TRG3), the monitor display CAM1~CAM4 as there is the TRG2(3) signal input, then CAM2(CAM3) and CAM1 split screen are shown on quad split screen.
-
Page 9: Setting
SETTING 7” WATERPROOF MONITOR Picture setup PICTURE SETUP Video standard system, / PAL conversion 1) Press [ ] button until OSD menu [PICTURE DIMMER SETUP] appears. CONTRAST PICTURE SETUP BRIGHTNESS 2) Press [ ] button to move a place where 1) Press [ ] button until OSD menu [PICTURE DIMMER... -
Page 10: Installation
INSTALLATION INSTALLATION (CL-5 stand) 7” WATERPROOF MONITOR * The drawing is just for reference and it moght be different from real product. INSTALLATION (U-Bracket) Double side adhesive tape Double side adhesive tape 1. Please ensure that the monitor is installed Standard Installation with enough room for heat emission. -
Page 11: Connection
CONNECTION SPECIFICATION 7” WATERPROOF MONITOR 7” WATERPROOF MONITOR Screen size 7 inch Resolution WVGA (800x480) LCD Panel Brightness 400cd/m2 Contrast ratio 500:1 View angle(L/R/U/D) 70˚ / 70˚ / 50˚ / 70˚ Voltage DC 12V ~ 24V Power Supply Current 450mA (DC 12V, monitor set only) Input System NTSC / PAL NTSC... - Page 12 MEMO MEMO 7” WATERPROOF MONITOR 7” WATERPROOF MONITOR...
- Page 13 INSTRUCTION MANUAL INSTRUCTION MANUAL ROSCO MIRROR SYSTEMS INC 90-21 144th Place Jamaica, NY 11435 Phone. (718) 526-2601 Fax. (718) 297-0323...
