3. Installing CRT & LCD Display
This chapter describes the configuration and installation procedure of LCD and CRT displays.
Both CRT and LCD displays may be used at the same time. However, each type of LCD requires
different BIOS. This section describes the configuration and installation procedure using LCD
display. Skip this section if you are using CRT monitor only.

• LCD Flat Panel Display

• CRT & LCD Display
3.1 LCD Flat Panel Display
Using the BIOS setting for different types of LCD pane, then set your system properly and
configures BOS setting for the right type of LCD panel you are using.

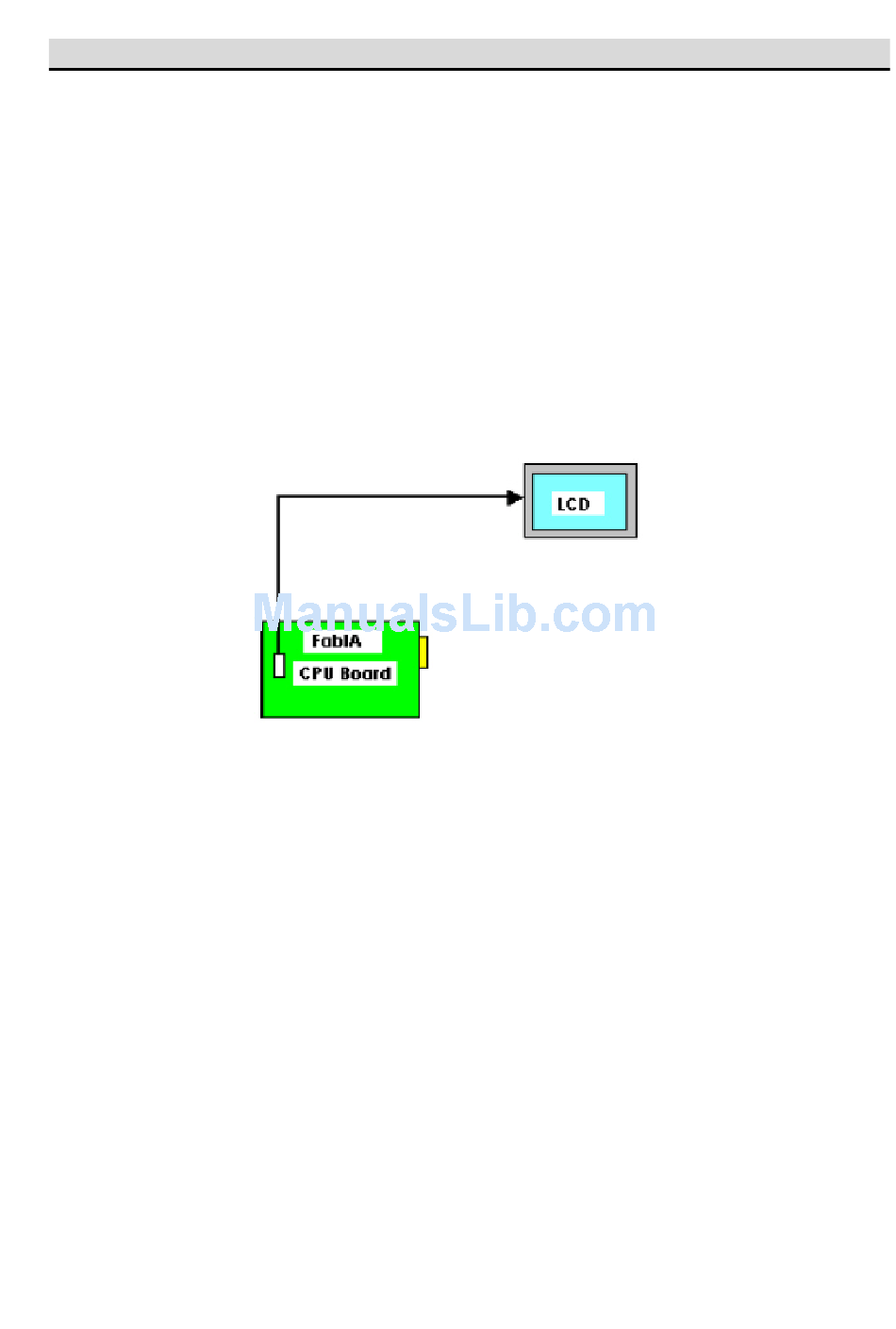

The following shows the block diagram of using CPU2616 for LCD display.
The diagram shows that CPU2616 needs components to be linked with a LCD panel.
NOTE: Be careful with the pin orientation when installing connectors and the cables. A wrong
connection can easily destroy your LCD panel. The pin 1 of the cable connectors is indicated with a
sticker and the pin1 of the ribbon cable usually has a different color.
LCD Panel Block Diagram
