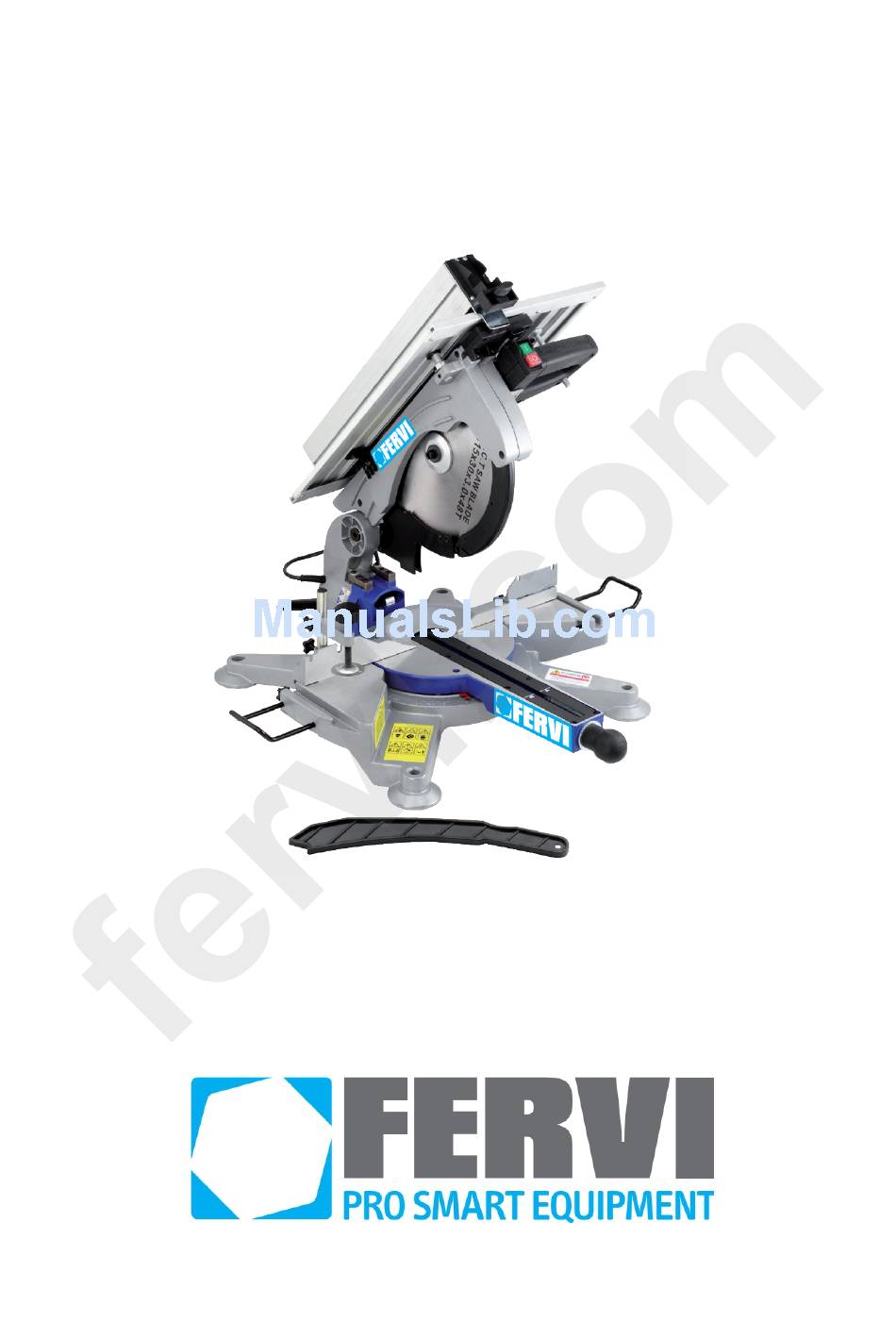

- Page 1 OPERATION AND MAINTENANCE MANUAL Mitre saw with table stand Art. 0275 ORIGINAL INSTRUCTIONS...
- Page 2 Manual on the date of issuance and listed herein; On the other hand, the machine may also be subject to important technical changes in the future, without the manual being updated. Therefore, contact FERVI for information about modifications that may have been implemented. REV. 1...
-
Page 3: Table Of Contents
MACHINES ACCESSORIES CONTENTS INTRODUCTION ..................5 Preface..........................6 SAFETY WARNINGS .................. 7 General safety regulations ....................7 2.1 General Electric Power Tool Safety Standards............9 Technical Support ......................9 Other provisions ......................10 TECHNICAL SPECIFICATIONS ..............11 INTENDED USE AND DESCRIPTION OF THE MACHINE......12 Main machine parts..................... - Page 4 MACHINES AND ACCESSORIES 10.2.4 Inclined and angled cuts ................... 31 10.3 Use in Bench saw mode ................... 32 MAINTENANCE ..................35 11.1 Accessories ......................35 11.2 Ordinary maintenance....................35 11.3 Replacing the blade ....................36 WAREHOUSE STORAGE................. 38 DISPOSAL OF PARTS AND MATERIALS ..........38 FAULT FINDING..................
-
Page 5: Introduction
The purpose of this manual is to provide the knowledge necessary for the use and maintenance of the Mitre saw with table stand Art. 0275 and create a sense of responsibility and knowledge of the capabilities and limitations of the device entrusted to the operator. -
Page 6: Preface
MACHINES AND ACCESSORIES Graphic representation of safety, operational and risk warnings The following boxes are designed to attract the attention of the reader / user for the proper and safe use of the machine: Attention This highlights behavioural rules to prevent damage to the machine and/or the occurrence of dangerous situations. -
Page 7: Safety Warnings
MACHINES ACCESSORIES 2 SAFETY WARNINGS 2.1 General safety regulations Accident There is always a risk of injury during cutting operations due to accidental contact of body parts with the moving tool, flying debris from the workpiece, tool breakage or ejection of a badly blocked workpiece. - Page 8 MACHINES AND ACCESSORIES 1. Always check the efficiency and integrity of the machine. 2. Before connecting the machine to the mains, make sure that the blade is not damaged or badly worn. Make sure that the switch is in the neutral position. 3.
-
Page 9: General Electric Power Tool Safety Standards
MACHINES ACCESSORIES replacing the disc; it is being moved or transported; during cleaning operations. 24.Do not use the machine in areas with a risk of fire and/or explosion. 25.It is recommended that users of this publication, for maintenance and repair, have a basic knowledge of the mechanical principles and procedures inherent in repair technique. -
Page 10: Other Provisions
MACHINES AND ACCESSORIES 2.4 Other provisions It is forbidden to tamper with safety devices The first thing to do when starting work is to check the presence and integrity of the protections and the operation of the safety devices. If any defect is encountered do not use the Mitre saw with table!! Even more so, it is strictly forbidden to modify or remove guards, safety devices, labels and indication signs. -
Page 11: Technical Specifications
MACHINES ACCESSORIES 3 TECHNICAL SPECIFICATIONS Model Art. 0275 Rated voltage (V) Power (W) 1800 Frequency (80 - 16000 Hz) Disc dimensions (mm) 315 x 30 x 3.0 Z40 Motor speed (r/min) 4000 Peripheral speed of the disc (m/s) Cutting capacity 0° ÷ 90° (mm) HxL 100 x 170 Cutting capacity 45°... -
Page 12: Intended Use And Description Of The Machine
4 INTENDED USE AND DESCRIPTION OF THE MACHINE The Mitre saw with table stand (Art. 0275) is only used for dry cutting of wooden planks and/or boards, within the limits recommended by the Manufacturer and the safety and health norms. -
Page 13: Main Machine Parts
MACHINES ACCESSORIES 4.1 Main machine parts Figure 1 – Main parts of the mitre saw Art. 0275. Work table Head rotation lever / knob Closure unhooking lever Supports Workpiece clamping adjustment Buttons for bench saw device Mitre saw operating lever... -
Page 14: Plates And Pictograms
MACHINES AND ACCESSORIES 4.2 Plates and pictograms The identification plate shown below is attached to the machine. Figure 2 – Identification Plate. The machine has the following warning and attention pictograms: Page 14 of 44... - Page 15 MACHINES ACCESSORIES PLATE IN ITALIAN PLATE IN ENGLISH DO NOT REMOVE RIMUOVERE SAFETY DEVICES I DISPOSITIVI DI SICUREZZA ATTENTION ATTENZIONE È VIETATO ESEGUIRE LAVORI SU IT IS PROHIBITED TO WORK ON LIVE ELECTRICAL APPARECCHIATURE ELETTRICHE SOTTO EQUIPMENT TENSIONE ANY EXCEPTIONS MUST BE APPROVED BY THE HEAD ...
-
Page 16: Description Of Controls
MACHINES AND ACCESSORIES 5 DESCRIPTION OF CONTROLS 5.1 Control Buttons for bench saw At the front of the machine, when it is closed in "Bench Saw" mode, the active commands are two electromagnetic buttons - Start (GREEN) and Stop (RED) located near the handle. -
Page 17: Locking The Head
MACHINES ACCESSORIES Cutting hazard After releasing the start button (18), the blade continues to rotate by inertia. Do not put body parts like hands and/or fingers near the moving blade! 5.3 Locking the head The machine is supplied closed, i.e. with the head attached and in "bench saw" mode. To be able to raise the head and use the machine in mitre saw mode it is necessary to push the bracket (19) inwards and at the same time the hook (20) backwards. - Page 18 MACHINES AND ACCESSORIES Figure 6 – Releasing the head from the open position To use the machine in "bench saw" mode it is necessary to lock the head in the closed position. To do this it is necessary to install the fixed protection device under the blade which also has the function of pushing the safety pin and allowing the closure of the hook (20) of the head itself.
-
Page 19: Adjustment Knobs
MACHINES ACCESSORIES 5.4 Adjustment knobs At the front part of the machine there is a knob (8 in Figure 1) for locking the head in an angled position relative to the base. The angle can be discovered by referring to the graduated scale (21) positioned below the base and which is revealed by the rotation itself. - Page 20 MACHINES AND ACCESSORIES Figure 10 – Adjusting the table height. On the right and the left part of the support guide square (mitre saw mode) there is a slot for the workpiece clamp. This clamp has a screw (26) for locking onto the guide and a screw (27) to tighten the pieces in position during cutting.
-
Page 21: Machine Safety Devices
MACHINES ACCESSORIES 6 MACHINE SAFETY DEVICES 6.1 Electrical safety devices In the event of malfunction or breakdown, the Mitre saw with table stand is equipped with power cable and plug without grounding conductor, as it is equipped with double isolation. The plug must be plugged into an appropriate outlet, the metal frame of the machine non- grounded. - Page 22 MACHINES AND ACCESSORIES In this configuration, the upper part of the blade is not used, and is protected by the upper casing that is locked in the closed position by a screw (28) and is integral to the table. Fixed casing on the blade above the table Figure 13 –...
-
Page 23: Personal Protective Equipment (Ppe)
MACHINES ACCESSORIES The machine is equipped with two lateral stabilizers (ref. 7 in Figure 1) to be inserted into the specially drilled holes on the base of the machine. Figure 16 – Workpiece pusher accessory. 6.3 Personal Protective Equipment (PPE) Use of PPE ALWAYS use appropriate personal protective equipment (PPE), such as: ... -
Page 24: Improper Use And Hazards
Lubricating the blade before, during and after processing. 8 TRANSPORT AND LIFTING The Mitre saw with table stand (Art. 0275) weighs 26 kg, so it can be lifted and moved by hand by a single operator. To do so, follow the instructions below: ... -
Page 25: Assembly And Commissioning
9.1 Unpacking instructions The Mitre saw with table stand (A . 0275) is supplied ready for use, with a steel disc 315 x 30 x 3.0 mm and packed in a cardboard box. Inside the package, in addition to the machine, there is a hex key, the workpiece pusher accessory, this manual, the EC declaration of conformity. -
Page 26: Anti-Overturn Stabilizers
MACHINES AND ACCESSORIES Fix the machine on a work bench (or another support surface) which is flat, solid and strong, using special bolts, so as to prevent accidental movement or overturning during operation, and excessive vibration transmitted to the operator. Figure 18 –... -
Page 27: Connecting The Power Plug
MACHINES ACCESSORIES 9.5 Connecting the power plug 1. Insert the power supply plug into a double pole socket without grounding (10/16 A, 250 2. Start the machine by pressing the start button and make sure that the direction of rotation of the blade is as indicated by the arrow on the protective casing. 3. -
Page 28: Operation
10.1Instructions for Use Machine operation The mitre saw with table stand (Art. 0275) should only be used for cutting wood. Do not cut metal parts, make sure there are no nails or other metal parts in the wood being machined. -
Page 29: Making Straight Cuts
MACHINES ACCESSORIES 10.2.1 Making straight cuts 1. Unlock the cutting disc so that it is possible to lift the mitre saw, moving the hook backwards. Figure 21 – Open hook. Pay attention to the upward displacement of the work table when the hook leaves its housing. 2. -
Page 30: Making Angled Cuts
MACHINES AND ACCESSORIES 10.2.2 Making angled cuts Cutting capacity The maximum cutting thickness is 100 x 170 mm. 1. Loosen the knob at the front of the work area. 2. Grasp the handle with one hand and the knob with the other, then rotate the base to the left or right at the desired angle, checking the value on the graduated scale. -
Page 31: Inclined And Angled Cuts
MACHINES ACCESSORIES Figure 24 – Adjusting the inclination to fixed positions. 4. Repeat the steps from 1 to 6, as described in paragraph 10.2.1. 10.2.4 Inclined and angled cuts Cutting capacity The maximum cutting thickness is 62 x 118 mm. The machine can be used with the dual inclination of the rotated turntable and with the inclined blade. -
Page 32: Use In Bench Saw Mode
MACHINES AND ACCESSORIES 10.3Use in Bench saw mode Changing the cutting mode Carefully follow the instructions on how to switch from one cutting mode to another. Make sure that the saw is perfectly vertical before closing it. Make sure the machine is not connected to the power supply, i.e. -
Page 33: Cutting Capacity
MACHINES ACCESSORIES Cutting capacity The maximum cutting thickness, in bench saw mode is 57 mm. To reduce the cutting thickness it is possible to raise the table as described on page 17 and in Figure 10. When the machine is closed to start the rotation of the saw it is necessary to press the green start button located at the front of the machine. - Page 34 MACHINES AND ACCESSORIES the cut. At the end of the cut, the protective guard will automatically cover the blade. 4. At the end of the work, turn off the saw, pressing the red button on the right side of the machine. Figure 31 - Stopping the saw.
-
Page 35: Maintenance
MACHINES ACCESSORIES 11 MAINTENANCE Any maintenance, except for that specifically listed in this manual should be performed by qualified staff authorized by the manufacturer. This manual does not elaborate information on disassembly and maintenance, as these operations should always be carried out exclusively by Technical Assistance staff. Electric shock Before maintenance or checks, turn off the machine and ALWAYS unplug the plug from the power outlet. -
Page 36: Replacing The Blade
MACHINES AND ACCESSORIES 11.3Replacing the blade Wear PPE ALWAYS wear suitable protective gloves (to reduce the risk of cut) when replacing the blade. 1. Remove the upper blade guards: both the fixed and the moveable guards, sliding it off the dividing cutter. - Page 37 MACHINES ACCESSORIES Figure 34 – Locked blade movement. 5. Hold down the locking lever and unscrew the bolt clockwise using the hex key provided. The left-nut is loosened by turning it clockwise. 6. Hold the washer and then the flange and remove them from the shaft. Figure 35 –...
-
Page 38: Warehouse Storage
MACHINES AND ACCESSORIES 12 WAREHOUSE STORAGE In the event that the machine should be stored and unused for some time, it must be kept in a closed environment free of moisture to avoid damage and/or deterioration. 13 DISPOSAL OF PARTS AND MATERIALS If the machine is to be scrapped, its parts must be disposed of differently. -
Page 39: Wiring Plan
MACHINES ACCESSORIES 15 WIRING PLAN 16 EXPLODED VIEW AND SPARE PARTS Always clearly indicate: the symbol and the serial number of the machine; the code number of the parts; number of parts; exact address of your company. Page 39 of 44... - Page 40 MACHINES AND ACCESSORIES Page 40 of 44...
- Page 41 MACHINES ACCESSORIES Part No. Description Part No. Description 0275/001 M8x30 Hex head screw 0275/034 Gear 0275/002 Base 0275/035 Washer 0275/003 Label 0275/036 Screw M5x30 0275/004 M6 hex nut 0275/037 Fixed guard on the blade 0275/005 Rubber feet 0275/038 Label 0275/006...
- Page 42 MACHINES AND ACCESSORIES Part No. Description Part No. Description 0275/033 Nut M8 0275/066 Nut M12 0275/067 Inclination indicator 0275/100 Seeger 0275/068 Washer 0275/101 Bearing 0275/069 Rotating base 0275/102 Washer Ø 5 0275/070 Screw M6x16 0275/103 Locking the head 0275/071 Angle indicator...
- Page 43 MACHINES ACCESSORIES Part No. Description Part No. Description 0275/133 Auto locking device 0275/166 Screw ST4.8x20 0275/134 Screw M6 0275/167 Upper housing 0275/135 Spring 0275/168 Lower housing 0275/136 Screw M4 0275/169 Label 0275/137 Head 0275/170 Rotor 0275/138 Cable bushing 0275/171 Graphite brush...
- Page 44 MACHINES AND ACCESSORIES Part No. Description Part No. Description 0275/199 Front cover 0275/204 Piece press plate 0275/200 Piece guide 0275/205 Screw M5 0275/201 Closing cover 0275/206 Adjustment bar 0275/202 Clamp knob 0275/207 Screw M6x16 0275/203 Clamp bracket Page 44 of 44...
