Summary of Contents for Saito ProCharger S
-
Page 1: Operating Instructions

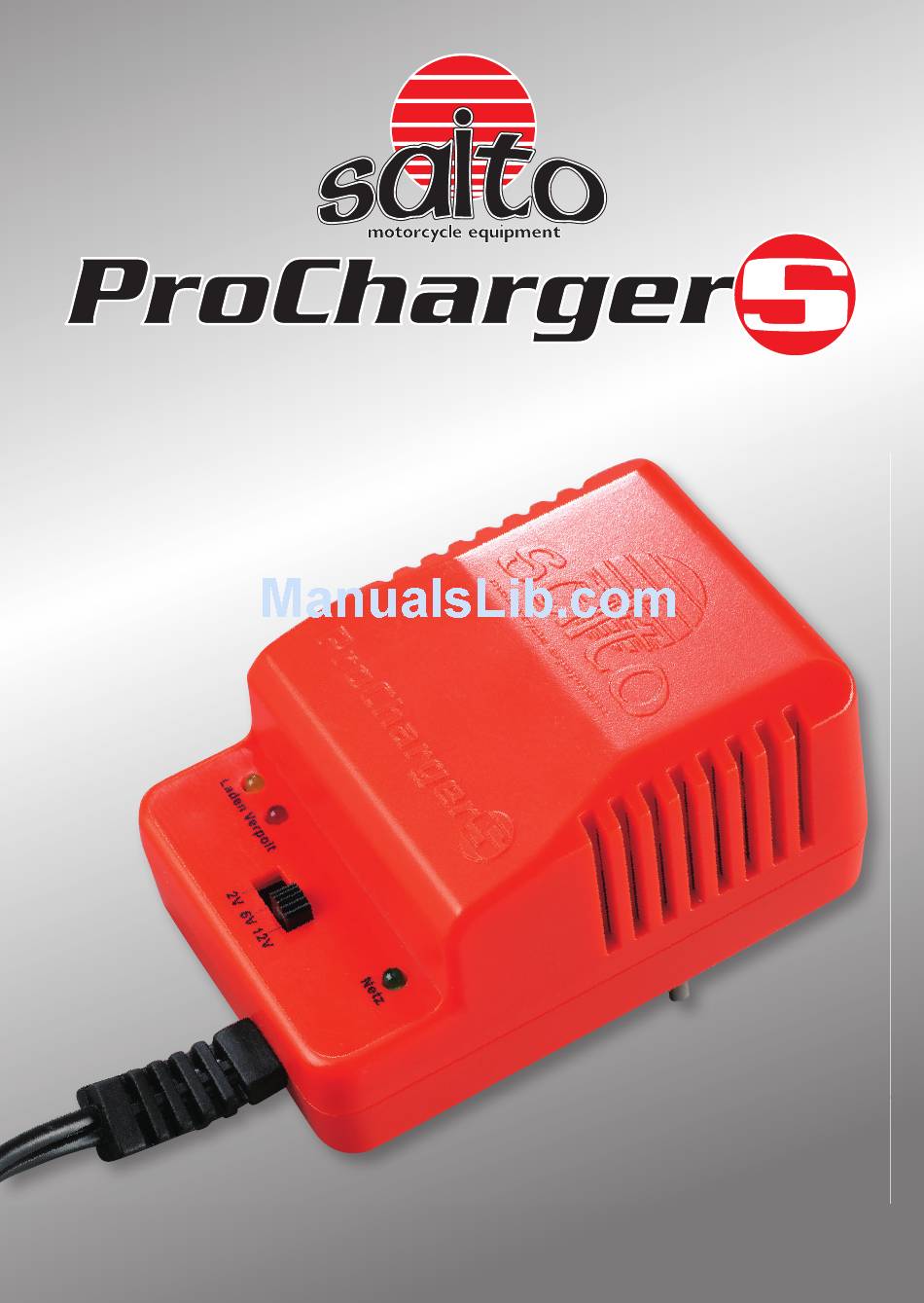

Operating instructions Read carefully before start up! order no. 10004601... - Page 2 SaitoProCharg erS The Saito ProChargerS is an automatic plug-in charger for motorcycle, scooter and quad bike/ATV starter batteries. It is adjustable between 2 V, 6 V and 12 V by means of a sliding switch and suitable for all customary standard lead-acid batteries –...
- Page 3 Features Prominent features: • Charging current up to 0.4 A • Automatic adjustment of the charging current (I-U charging principle) • For 2 V, 6 V and 12 V lead batteries • Electronic protection against short circuits and polarity reversal •...
- Page 4 Included in the delivery Saito ProChargerS plug-in charger, cable set with crocodile clips for quick connecting, cable set with ring terminals (eyelets) for a permanent con- nection to the battery as well as a detailed, German and Englisch instruction manual.
-
Page 5: Table Of Contents
Content Intended use Warning and safety information Dangers Safety Failure information Connection and start-up Short explanation for experienced users Charging process Error display, technical data and scope of delivery Warranty Information on environmental protection, packaging and cleaning If you have any questions on the product…... -
Page 6: Intended Use
Intended use Intended use The charging device is intended for charging and maintaining the charging of customary standard lead-acid batteries as well as all maintenance-free gel and microfleece batteries suitable for the voltage and charging current stated within the technical data. No primary batteries (zinc-carbon, alkaline etc.) or other types of accumulators than lead batteries are supposed to be connected and charged. -
Page 7: Warning And Safety Information
Warning and safety information Warning and safety information Before using the device, refer to the instructions within this manual. The legislator requires us to provide you with important information for your safety and to notify you about how to avoid damaging of the device and other facilities. - Page 8 Warnings and safety information Keep the charging device out of children’s reach. Make sure not to wear any conductive jewellery such as chains, arm- bands or rings while using the charging device. Avoid getting in contact with battery acid. Battery acid can lead to severe chemical burn! In case you have been exposed to battery acid, immediately rinse with a lot of clear water and seek medical advice, if possible.
-
Page 9: Dangers
Dangers Dangers in handling the charging device The charging device has been developed according to the state-of-the- art and approved safety-related guidelines. Nevertheless, in the case of operating errors or misuse, there is a risk of danger for: • the user’s or third party’s health and life •... - Page 10 Dangers Please contact an authorised service centre, if you have any doubts concerning the functioning, safety or the connection of the device. Check the product and its cables for damages before any start-up. Do not operate the device, if the protective insulation of the power or charging cable is damaged (squashed, cracked, ripped etc.).
- Page 11 Dangers Notice 1.2 If a defect (damaging) of the cable is identified, the operation must be immediately stopped. Only operate the device outside the vehicle. Always assure a safe and stable connection when attaching the battery charging clips. Attention! Do not continue the charging process with a defective battery.
-
Page 12: Safety
Danger, Safety Do not place any containers, e.g. vases, plants or the like on top of or next to the charging device and the battery. Liquids could contaminate the casing and thereby affect electric safety. There is a great risk of fire or fatal injury from electric shock. - Page 13 Safety Only operate the product in a moderate climate, never in a tropical climate. Refer to the chapter “Technical data” (see page 26) for admissible environmental conditions. Make sure that the charging device is firmly attached to the power socket. There might otherwise be a danger of injury due to the weight of the falling product.
- Page 14 Safety There are no product parts for the user to set resp. to maintain inside the device. At schools, educational institutions, hobby and self-help workshops, the operating of the product must be supervised by responsible, trained staff. If you are not sure about the correct connecting resp. operating or should you have any questions which are not clarified within this instruction manual, please contact our technical customer service (see page 30) or an authorised service centre.
-
Page 15: Failure Information
Failure information Failure information If the device does not function, check the following points: Is the power socket working, does it conduct electricity? Is the connected lead battery defective or exhaustively discharged? Has the charging device been connected to the lead battery with the right poles? In order to avoid a damaging of the batteries, make sure that the batteries are never exhaustively discharged. -
Page 16: Connection And Start-Up
Connection and start-up Connection and start-up If the battery to be charged is built in, you must make sure that all current consumers of the vehicle, such as e.g. ignition, radio, light, telephone, mobile charging devices etc., are switched off. The lead battery must be dismantled or disconnected, if applicable. -
Page 17: Short Explanation For Experienced Users
Short explanation for experienced users … Short explanation/quick guide for experienced users Operating the device (all safety and danger notices must be read in advance). Adjusting the battery voltage: Depending on the battery you wish to charge, adjust the sliding switch to 2 V, 6 V resp. 12 V. Connecting to the 230 V mains: Connect the charging device to the 230 V mains circuit (power socket). -
Page 18: Charging Process
Charging process Charging process The yellow “Charging” display will light up as soon as the flow of charging current starts. If however the red “Reversely poled” display lights up, immediately check and change the polarity of the pole clips. The time until charging end voltage is reached depends on several parameters such as •... - Page 19 Charging process For the charging operation itself it does not matter whether the battery is only partly or completely discharged. The battery can also remain permanently connected to the charging device; however the surrounding temperature should not exceed approx. 40°C! If the battery is connected to the charging device with reversed polarity by mistake, this will be signalised by means of a red “Polarity reversal”...
-
Page 20: Error Display, Technical Data And Scope Of Delivery
Loading device dimensions [W x H x D]: 60 x 80 x 46 mm Scope of delivery Saito ProCharger S plug-in charger, cable set with crocodile clips for quick connecting, cable set with ring terminals (eyes) for a permanent connec-... -
Page 21: Warranty
Warranty Warranty The dealer/manufacturer selling the device provides a warranty of two years as from the handover of the product with respect to the material and the production of the device. In the case of a defect, the purchaser is only entitled to supplementary performance. -
Page 22: Information On Environmental Protection, Packaging And Cleaning
Information about environment protection, packaging, cleaning Information about environment protection At the end of its service life this product may not be disposed via the normal domestic waste, but must be handed in at a collecting point for recycling of electric and electronic devices. -
Page 23: If You Have Any Questions On The Product
Questions about the product If you have any questions on the product and/or this instruction manual, please contact our technics centre at the fax number: 0049 (0) 40 – 73 41 93 58 resp. by email: technikcenter@louis.de before the assembly resp. start-up of the product. We will quickly help you. In this way we commonly guarantee that the product is used in a proper way. - Page 24 The winners! DELO® and Saito® Starter Batteries exclusively sold by Louis! • OEM quality for more than 25 years – proven millions of times • Enormously high service life • Very high cold start performance • ABS suited • A grade lead plates •...
