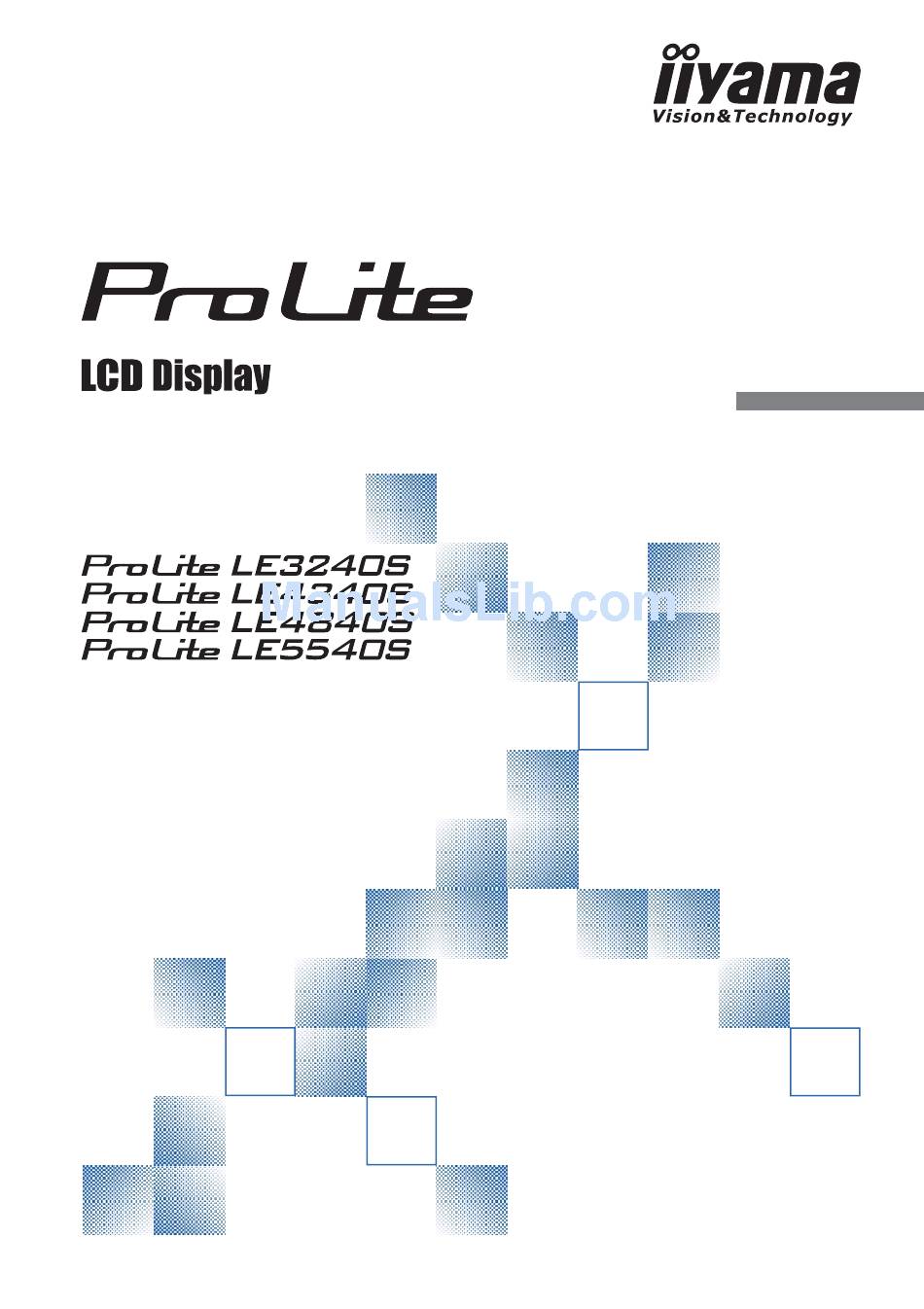

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD display. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the display. Please keep this manual in a safe place for... -
Page 3: Ce Marking Declaration Of Conformity
IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL3240/PL4340/PL4840/PL5540 We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of different countries from there. -
Page 4: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD DISPLAYS ...........3 CUSTOMER SERVICE ..............4 CLEANING ..................4 BEFORE YOU OPERATE THE DISPLAY ..........5 FEATURES..................5 CHECKING THE CONTENTS OF THE PACKAGE ......5 UNPACKING : ProLite LE5540S .............6 CONTROLS AND CONNECTORS : DISPLAY ........7 INSTALLATION ................9 CONTROLS AND CONNECTORS : REMOTE CONTROL ...10 PREPARING THE REMOTE CONTROL........ -
Page 5: For Your Safety
STOP OPERATING THE DISPLAY WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the display and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the display where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the display. DO NOT PLACE THE DISPLAY IN A HAZARDOUS POSITION The display may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Displays
SPECIAL NOTES ON LCD DISPLAYS The following symptoms are normal with LCD displays and do not indicate a problem. When you fi rst turn on the LCD display, the picture may not fi t in the display area NOTE because of the type of computer that is used. -
Page 8: Customer Service
If you drop any materials or liquids such as water into the display when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the display before you CAUTION clean it. -
Page 9: Before You Operate The Display
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the display. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Unpacking : Prolite Le5540S
UNPACKING : ProLite LE5540S Before unpacking your display, prepare a stable, level, and clean surface near a wall outlet. Set the LCD display box in an upright position and open from the top of the box before removing the top cushions. Remove the carton holders. -
Page 11: Controls And Connectors : Display
CONTROLS AND CONNECTORS : DISPLAY <Back Controller> Power Button MUTE Mute Button Enter / Input INPUT Select Button MUTE INPUT MENU + Button - Button Up Button Down Button MENU Menu Button <Front> Lighting : Normal Operation Flash : Power Management (ECO Mode : Normal) Green * If there is no input signal from the computer and passes for 10 minutes. - Page 12 <Back> AC IN AC-INLET AC Connector( : Alternating current) (AC-IN) AC SWITCH MAIN Main Power Switch (ON) / (OFF) POWER PC AUDIO IN Mini Jack Audio Connector HDMI IN HDMI HDMI Connector DVI-D DVI IN DVI-D 24pin Connector 24pin D-SUB mini VGA IN VGA(D-sub) mini 15pin Connector 15pin...
-
Page 13: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualifi ed service personnel. Moving the display requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount. -
Page 14: Controls And Connectors : Remote Control
CONTROLS AND CONNECTORS : REMOTE CONTROL Turns the display ON and OFF. Control playback of media fi les. : Play : Stop [PLAY] : Pause : Quick-Return : Fast-Forward Selects the source. Press button to select from INPUT USB, Network, HDMI, DVI, YPbPr, AV or VGA. -
Page 15: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specifi ed in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+"... -
Page 16: Basic Operation
BASIC OPERATION Turning the display ON [Remote Control] The display is turned On and the Power Indicator turns to Green when you press the POWER button on the display or the Remote Control. The display is turned Off and the Power Indicator turns to Orange when you press the POWER button on the display or the Remote Control. - Page 17 Move the cursor vertically [Remote Control] Select adjustment by pressing the button on the display or the / button on the remote control while the menu page is displayed on the screen. [Display] MUTE INPUT MENU Move the cursor horizontally [Remote Control] Select menu or setting, or perform the adjustment by pressing the + / - button on the display or the...
- Page 18 Adjust the volume of sound [Remote Control] Press the + / - button on the display or the remote control to adjust the volume of sound when the menu page is not displayed on the screen. [Display] MUTE INPUT MENU ...
-
Page 19: Connecting Your Display
An incorrect connection may cause serious damage to both the display and the computer. The cable supplied with the display is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. - Page 20 [ Connection example with the peripheral device ] CAUTION Turn off the power switch and unplug the display and peripherals before connection to avoid electric shock or damage. NOTE R e f e r t o t h e u s e r m a n u a l o f peripherals at the same time.
-
Page 21: Computer Setting
Change to the desired signal timing listed on page 41: COMPLIANT TIMING. Windows XP/Vista/7/8 Plug & Play The iiyama LCD display complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8 by connecting the display to DDC2B compliant computer with the Signal Cable supplied. -
Page 22: Operating The Display
OPERATING THE DISPLAY To create the best picture, your iiyama LCD display has been preset at the factory with the COMPLIANT TIMING shown on page 41. You are also able to adjust the picture by following the button operation shown below. - Page 23 Direct * Available for Remote Control only. Press the ADJUST button when Menu is not displayed. Direct menu below appears. PC input and Video input Sound Mode: Access predefi ned sound settings. Audio out: Adjust audio output volume. ...
-
Page 24: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Picture Picture Mode Custom Sound Reset Vivid General settings Backlight Natural Network settings Contrast Standard Brightness Movie Photo Colour Energy saving Sharpness Advanced Foramat and edges Adjustment Item Problem / Option Button to Press Displays a picture on a screen set by Image Settings Custom adjustments. - Page 25 Picture Picture Picture Mode Custom Sound Reset Vivid General settings Backlight Natural Network settings Contrast Standard Brightness Movie Photo Colour Energy saving Sharpness Advanced Foramat and edges Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Greenish white Warm Reddish white Color temp.
- Page 26 Picture Picture Picture Mode Custom Sound Reset Vivid General settings Backlight Natural Network settings Contrast Standard Brightness Movie Photo Colour Energy saving Sharpness Advanced Foramat and edges Adjustment Item Problem / Option Button to Press Enlarge the picture to fi ll the screen Auto zoom Recommended for minimal screen distortion but not for HD or PC.
- Page 27 Sound Picture Sound Mode Custom Sound Reset Original General settings Bass Movie Network settings Treble Music Audio out Game Advanced News Adjustment Item Problem / Option Button to Press Custom Recalls customized settings. Original Set the original sound quality. Movie Sound quality suitable for the movie.
- Page 28 General settings Picture Menu Language English Sound Monitor id Français General settings ECO Mode Italiano Network settings Auto Search Español Clock Deutsch Scheduling Nederlands Sleep timer Polski Auto switch off Русский Pixel shift Čeština Control settings Opening Logo Adjustment Item Problem / Option Button to Press English...
- Page 29 General settings Picture Monitor id Sound ECO Mode General settings Auto Search Network settings Clock Scheduling Sleep timer Auto switch off Pixel shift Control settings Factory settings Adjustment Item Problem / Option Button to Press Choose to enable or disable the back controller function of this display.
- Page 30 Network Settings Picture View network settings Sound Network settings General settings Static IP Configuration Network settings Digital Media Render... Wake on lan Network name Adjustment Item Problem / Option Button to Press View network settings View connected network status. Select how this display should assign addresses to the network Network settings resources.
- Page 31 [Play Multimedia Files] You can play videos, photos, and music on your display from: · Your computer connected through your network. · A USB device connected to this display. Play fi les from computer To play fi les from compute, you will need: ·...
- Page 32 Supported fi le system: FAT32 Supported fi le format: • Music: MP3, WMA, M4A, AAC, AC3 • Movie: AVI, MP4, MOV, MPG/MPEG • Photo: JPEG, BMP, GIF CAUTION • The manufacturer is not responsible if the USB device is not supported, nor is it responsible for damage to or loss of data in the device.
- Page 33 [Play options] Playing music fi les 1. Select Music in the top bar. 2. Select one music track, then press OK button. Album 1. Music 05:05 Info Play All Sort USB device Options • Play All : To play all the tracks in a folder. •...
- Page 34 Playing movie fi les 1. Select Movie in the top bar. 2. Select a video, then press OK button. Track Info Play All USB device Options • Play All : To play all the videos in a folder. • CH+ / CH- : To skip to the next or previous video. •...
- Page 35 Playing photo fi les 1. Select Photo in the top bar. 2. Select a photo thumbnail, then press OK button. Date Info Play All Sort USB device Options Start a slideshow • Play All : To play all the photp in a folder. (multiple photo) •...
-
Page 36: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the display when your computer is not in use. To use the feature, the display needs to be connected to a VESA DPMS compliant computer. There is a power management step the display takes as described below. -
Page 37: Trouble Shooting
DISPLAY or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the display and contact your dealer or iiyama service center for further assistance. Problem... -
Page 38: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your display. Please visit our web site: www.iiyama.com/recycle for monitor recycling. 34 Recycling information... -
Page 39: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite LE3240S Size Category 32" Panel technology Panel Size Diagonal: 31,5" (80cm) Pixel pitch 0.36375mm H × 0.36375mm V Brightness 350cd/m (Typical) Contrast ratio 1400 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time... -
Page 40: Specifications : Prolite Le4340S
SPECIFICATIONS : ProLite LE4340S Size Category 43" Panel technology AMVA3 Panel Size Diagonal: 43" (108cm) Pixel pitch 0.49mm H × 0.49mm V Brightness 350cd/m (Typical) Contrast ratio 3000 : 1 (Typical) Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Viewable angle Response time 8ms (Typical, Gray to Gray) Display Colors... -
Page 41: Specifications : Prolite Le4840S
SPECIFICATIONS : ProLite LE4840S Size Category 48" Panel technology Panel Size Diagonal: 48" (121cm) Pixel pitch 0.549mm H × 0.549mm V Brightness 350cd/m (Typical) Contrast ratio 4000 : 1 (Typical) Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Viewable angle Response time 8ms (Typical, Gray to Gray) Display Colors... -
Page 42: Specifications : Prolite Le5540S
SPECIFICATIONS : ProLite LE5540S Size Category 55" Panel technology Panel Size Diagonal: 55" (139cm) Pixel pitch 0.63mm H × 0.63mm V Brightness 350cd/m (Typical) Contrast ratio 1200 : 1 (Typical) Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Viewable angle Response time 8ms (Typical, Gray to Gray) Display Colors... -
Page 43: Dimensions : Prolite Le3240S
DIMENSIONS : ProLite LE3240S 610.0mm/24.0” 726.5mm/28.6” 8xM4 SCREW HOLE 702.5mm/27.7” (VESA MOUNT) 200.0mm/7.9” 100.0mm/3.9” DIMENSIONS : ProLite LE4340S 724.0mm/28.5” 8xM6 SCREW HOLE 968.0mm/38.1” (VESA MOUNT) 944.5mm/37.2” 400.0mm/15.7” 200.0mm/7.9” APPENDIX 39... -
Page 44: Dimensions : Prolite Le5540S
DIMENSIONS : ProLite LE4840S 724.0mm/28.5” 1082.0mm/42.6” 8xM6 SCREW HOLE 1058.0mm/41.7” (VESA MOUNT) 400.0mm/15.7” 200.0mm/7.9” DIMENSIONS : ProLite LE5540S 944.0mm/37.2” 8xM6 SCREW HOLE 1238.5mm/48.8” 1213.5mm/47.8” (VESA MOUNT) 400.0mm/15.7” 400.0mm/15.7” 40 APPENDIX... -
Page 45: Compliant Timing
COMPLIANT TIMING Timing 31.469 59.940 25.175 VGA 640x480 37.861 72.809 31.500 37.500 75.000 31.500 37.879 60.317 40.000 SVGA 800x600 46.875 75.000 49.500 48.363 60.004 65.000 XGA 1024x768 60.023 75.029 78.750 VESA WXGA 1280x768 47.776 59.870 79.500 WXGA 1280x800 49.702 59.810 83.500 SXGA 1280x960 60.000...
