Summary of Contents for Iiyama ProLite LE4041UHS-B1

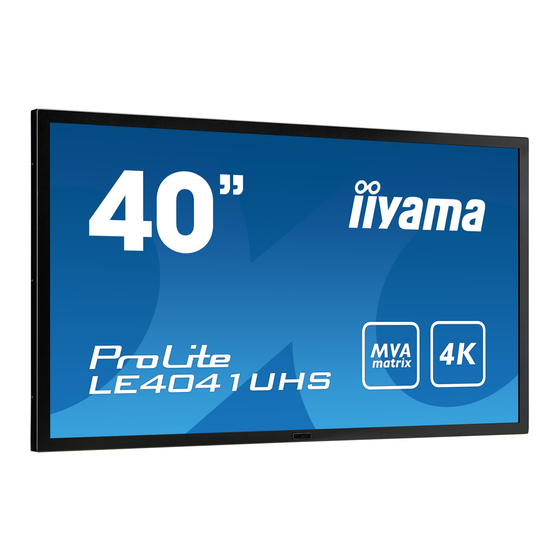

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read this comprehensive manual carefully before installing and switching on the monitor. Please keep this manual in a safe place for...
- Page 2 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com...
-
Page 3: Table Of Contents
TABLE OF CONTENTS FOR YOUR SAFETY ................1 SAFETY PRECAUTIONS..............1 SPECIAL NOTES ON LCD MONITORS .........3 CUSTOMER SERVICE ..............4 CLEANING ..................4 BEFORE YOU OPERATE THE MONITOR ..........5 FEATURES..................5 CHECKING THE CONTENTS OF THE PACKAGE ......5 UNPACKING ..................5 CONTROLS AND CONNECTORS : MONITOR ......6 INSTALLATION ................8 CONTROLS AND CONNECTORS : REMOTE CONTROL ....9 PREPARING THE REMOTE CONTROL........10... -
Page 4: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 5 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 6: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitors and do not indicate a problem. When you fi rst turn on the LCD monitor, the picture may not fi t in the display area NOTE because of the type of computer that is used. -
Page 7: Customer Service
If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. For safety reasons, turn off the power switch and unplug the monitor before you CAUTION clean it. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Controls And Connectors : Monitor
CONTROLS AND CONNECTORS : MONITOR <Back Controller > <Front> ENTER/ Enter / Input Select Button VIDEO SOURCE MENU Menu Button Up Button Down Button + Button Left / - Button Power Button Blue Normal Operation Power Indicator Orange Power Management Remote Sensor Remote Sensor 6 BEFORE YOU OPERATE THE MONITOR... - Page 10 <Back> AC SWITCH MAIN Main Power Switch (ON) / (OFF) POWER AC IN AC-INLET AC Connector( : Alternating current) (AC-IN) AC OUT AC-OUTLET AC Connector (AC-OUT) DVI IN DVI-D 24pin DVI-D 24pin Connector HDMI1 IN HDMI HDMI Connector HDMI2 IN HDMI HDMI Connector, DP IN...
-
Page 11: Installation
INSTALLATION CAUTION Follow the manual instructions for the type of mount you have selected. Refer all servicing to qualifi ed service personnel. Moving the monitor requires at least two people. Before installing, please make sure the wall is strong enough to hold the necessary weight of the display and the mount. -
Page 12: Controls And Connectors : Remote Control
CONTROLS AND CONNECTORS : REMOTE CONTROL Turns the monitor ON and OFF. Display the ECO mode menu. Display the OSD menu. FREEZE Freeze the picture. i-STYLE Display the i-Style Color menu. Opens the monitor’s on-screen menu systems. When the menu MENU system is already open, pressing this button will select the previous... -
Page 13: Preparing The Remote Control
PREPARING THE REMOTE CONTROL To use the remote control, insert the two dry batteries. CAUTION Do not use any other batteries other than those specifi ed in this manual for the Remote Control. Do not insert old and new batteries together in the Remote Control. Make sure that the terminals match the "+"... -
Page 14: Basic Operation
BASIC OPERATION Turning the monitor ON The monitor is on and the Power Indicator turns Blue when you press the Power Button on the monitor or the Remote Control. The monitor is off and the Power Indicator turns Orange when you press the Power Button on the monitor or the Remote Control. - Page 15 Move the cursor vertically Select adjustment by pressing the Button on the monitor or the Remote Control while the menu page is displayed on the screen. [Monitor] [Remote Control] Move the Adjustment bar Perform the adjustment by pressing the Button on the monitor or on the Remote Control while the Adjustment bar of menu page is displayed on the screen.
- Page 16 Adjust the volume of sound Press the VOL Button on the Remote Control to adjust the volume of sound when the menu page is not displayed on the screen. [Remote Control] Switch the input signal This is activated when you successively press the ENTER Button on the monitor or INPUT Button on the Remote Control.
-
Page 17: Connecting Your Monitor
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 18: Computer Setting
Change to the desired signal timing listed on page 31: COMPLIANT TIMING. Windows XP/Vista/7/8 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows XP/Vista/7/8 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 19: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 25 for SCREEN ADJUSTMENTS. -
Page 20: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Input Select Direct Adjustment Item Problem / Option Button to Press Select the VGA input. Select the DVI input. HDMI1 Select the HDMI1 input. Input Select HDMI2 Select the HDMI2 input. DisplayPort Select the DisplayPort input. Search for an available input source and select AUTO automatically. - Page 21 Picture Adjustment Item Problem / Option Button to Press Full Screen Full screen display Picture Format * Expansion display of Aspect Aspect Ratio * Dot By Dot Display the picture dot by dot. Too dull Contrast Too intense Too dark 1,2,3 Brightness * Too bright...
- Page 22 PiP/PbP Adjustment Item Problem / Option Button to Press PiP/PbP Mode is turned off. Display the sub screen in the main screen. PiP/PbP Mode * Divide display images in two PbP 2win Divide display images in three PbP 3win PbP 4win Divide display images in four Select the VGA input.
- Page 23 Audio Direct Adjustment Item Problem / Option Button to Press Too soft Volume Too loud Turn off the sound temporarily. Mute Direct Return the sound volume to the previous level. Line-In Select the Line-In input. HDMI1 Select the HDMI1 input. Audio Input * HDMI2 Select the HDMI2 input.
- Page 24 Color * Adjustment Item Problem / Option Button to Press Warm (5500K) Greenish white Normal (6500k) Reddish white Cool (9300k) Bluish white Too weak User Color Green Too strong Blue For general windows environment and monitor Standard default setting. Scenery For displaying outdoor scenery images For movie and video environment.
- Page 25 You can set the OSD display duration time. OSD Time Out 5 / 10 / 20 / 30 / 60 seconds iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on.
- Page 26 Setup Menu Adjustment Item Problem / Option Button to Press Adjust H. / V. Position, Clock and Phase automatically. Auto Image Adjust * Direct Too left H. Position * Too right Too low V. Position * Too high Phase * To correct fl...
- Page 27 Only Analog Input. For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 25 for SCREEN ADJUSTMENTS. See page 25 for SCREEN ADJUSTMENTS. Blue Light Reducer is disabled when Color is activated. To display 3840 x 2160 at 60 Hz, the DisplayPort setting must be enabled as 1.2, and the source graphic card must be capable of supporting 3840 x 2160 resolution at 60Hz.
-
Page 28: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www.iiyama.com). Adjust the image by following the procedure below to get the desired picture. - Page 29 Adjust the Auto Adjustment. Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Adjust. Adjust the V-Position so that the top and bottom of the picture frame will fi t to the display area.
- Page 30 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps NOTE because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 31: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem Check ... -
Page 32: Recycling Information
RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. RECYCLING INFORMATION 29... -
Page 33: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS 40" Size Category Panel technology Panel Size Diagonal: 39.5" (100.3cm) Pixel pitch 0.229mm H × 0.225mm V Brightness 350cd/m (Typical) Contrast ratio 5000 : 1 (Typical) Viewable angle Horizontal : 178 degrees, Vertical: 178 degrees (Typical) Response time 4ms (Gray to Gray) -
Page 34: Dimensions
DIMENSIONS 921.5mm/36.6” 69.5/2.7” 879.5mm/34.6” * Protruding portion(s) not included. COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 25.175MHz 31.469kHz 59.940Hz 31.500MHz 640 × 480 37.500kHz 75.000Hz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 49.500MHz 46.875kHz...
