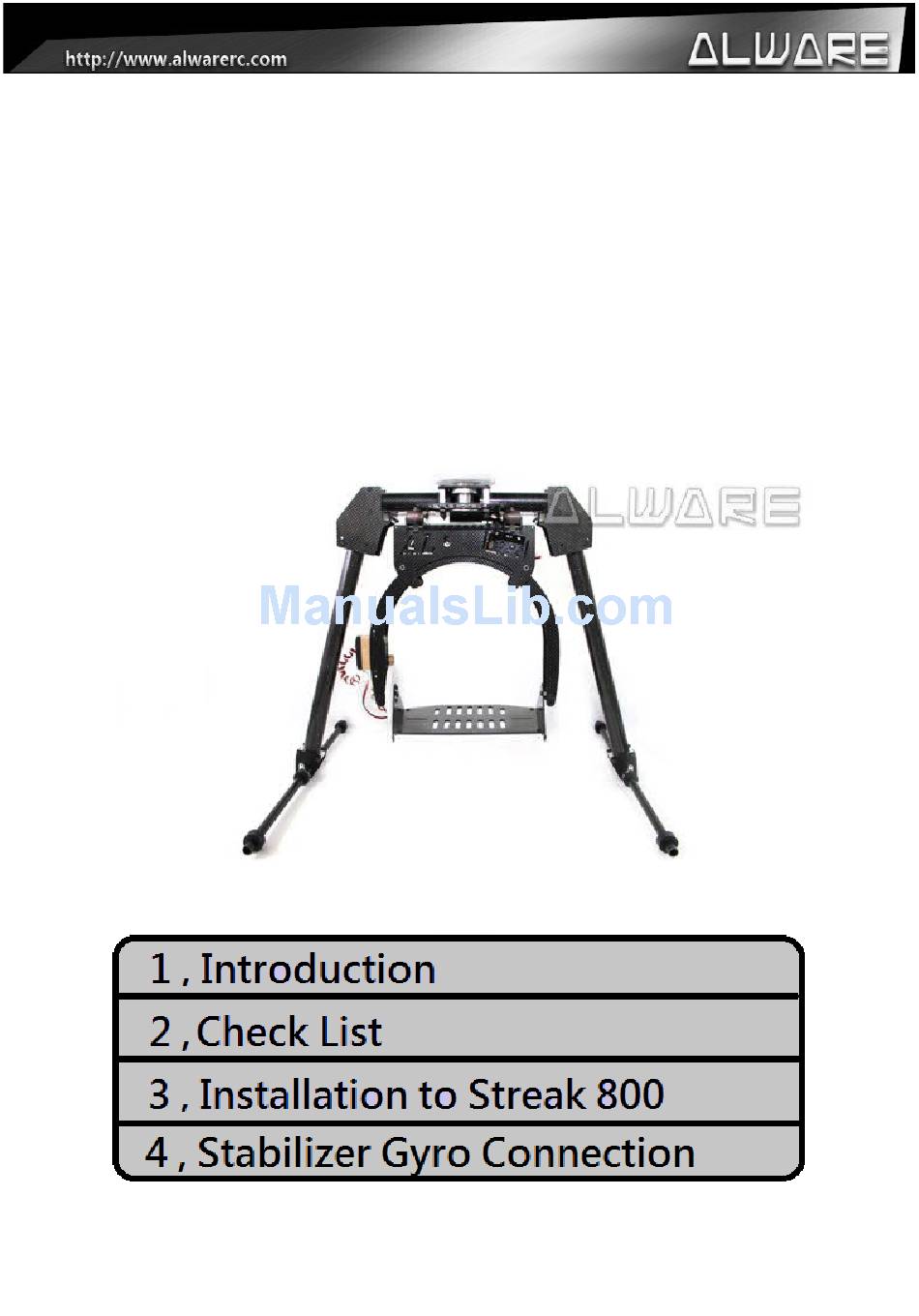

- Page 1 Lensman-18 Camera 3-Axis Gimbal (For Streak 800) Model: ALLENS-18A Instruction Manual...
- Page 2 DJI S800 and Streak 800 Hexacopters to carry professional cameras from GoPro to DSLR camera size for professional aerial photography with amazing price! It is the “Lensman-18 Camera 3-Axis Gimbal” which is designed and produced by Alware. Made of High Quality Materials: The gimbal is made of 3K Carbon Frames, 3K Carbon Booms and high quality Anodized CNC Aluminum metal parts.
- Page 3 Easy and Rigid Mounting to the Aircraft: This gimbal use a 5mm (2*2.5mm) thick 3K Carbon Frame which is super rigid to mount onto the bottom gimbal plate of Streak 800 directly or to DJI S800's Mount Bio-pod with unique metal mounts. Please be noted that Lensman-18 comes with no landing gear, since we will use the original Landing Gear from DJI S800 or Streak 800 Hexacopter.
- Page 4 Specification: - Made of 3K carbon fiber frames + 3K carbon boom + CNC anodized Aluminum metal parts - Pan axis control: ±360° continuous rotation (including the landing gear) - Tilt axis control: 0-90° - Roll axis control: ±25° - Work with 3 Digital Metal Gear Standard Size Servos - High quality damping system - Weight of Gimbal: 810g Capable Camera Dimension:...
- Page 5 2. ALLENS-18A Check List Parts included in ALLENS-18A (For Streak 800): A: 1x Lensman-18 Camera 3-Axis Gimbal (For Streak 800) Assembly B: 1x High Quality 1/4 x 13mm Camera Screw with Washers C: 1x Spare Frame Parts D: 1x Carbon Fiber Gyro Mount...
- Page 6 3. Installation to Streak 800 Assembly Steps: Step 1. Step 2. Get ready with your Streak 800 Heacopter to install Remove the original Laning Gear from your Streak with Lensman-18A professional gimbal. 800 by removing three screws on each side. Step 3.
- Page 7 Step 8. Step 9. Repeat the previous step to prepare two Bipod Loosen M3x40mm screws with M3 Self-Lock Nut Landing Gear Assemblies with LG Metal Mount. from the Landing Gear Frame Mount of Lensman. Step 10. Remove a 3x5x3mm collar from each M3x40mm Screw and adjust the screw to the position as shown on the photo.
- Page 8 Step 12. Step 13. Adjust the Bipod Landing Gear Assemby as to Repeat previous steps to install another side of parallel with Lensman's body. Bipod Landing Gear Assemby. Completed Lensman-18 Assembly with Streak 800 Landing Gear is shown above. Step 14. Step 15.
- Page 9 Step 18. Step 19. Install the Carbon Fiber Gyro Mount to the Lensman Prepare your Streak 800, remove the System using Two M3x8mm Screws with M3 Self-Lock Platform Frame from the main body. Nuts. Step 20. Step 21. Insert 4pcs M3x18mm Hex Cap Screws(included Remove the Up Gimbal Mounting Frame from Streak 800 to get ready to connect with Lensman- with Lensman) into the main frame of Streak 800...
- Page 10 Step 24. Step 25. Close view of Step 23. Secure Streak 800 to Lensman-18 with 4pcs M3 Self-Lock Nuts. Step 26. Step 27. Close view of Step 26. Install the Up Gimbal Mounting Frame back to the Streak 800 body. (Apply little amount of Thread Locker when assembly metal to metal parts.) Step 28.
- Page 11 Step 30. This Carbon Fiber Gyro Mount is good to mount gimbal stabilize gyro, second receiver and battery to control the Lensman Gimbal as to provide 360 degree continuous panning.
-
Page 12: End Of Manual
4. Stabilizer Gyro Connection Recommended Gimbal Stabilizaters: Freefly Radian 3-Axis Gimbal Stabilization Module, PhotoHigher Skyline Gyro 3-Axis Camera Gimbal Stabilizer RSGS, HoverFly Gimbal - 3 axis gimbal stabilizer, FY30A Airplane Flight Stabilization System, Tarot ZYX-GS Gimbal Stabilization System etc. Related Videos: http://www.alwarerc.com/shop/video.html?cat=1 # Report any mistakes, please email to: info@alwarerc.com...
