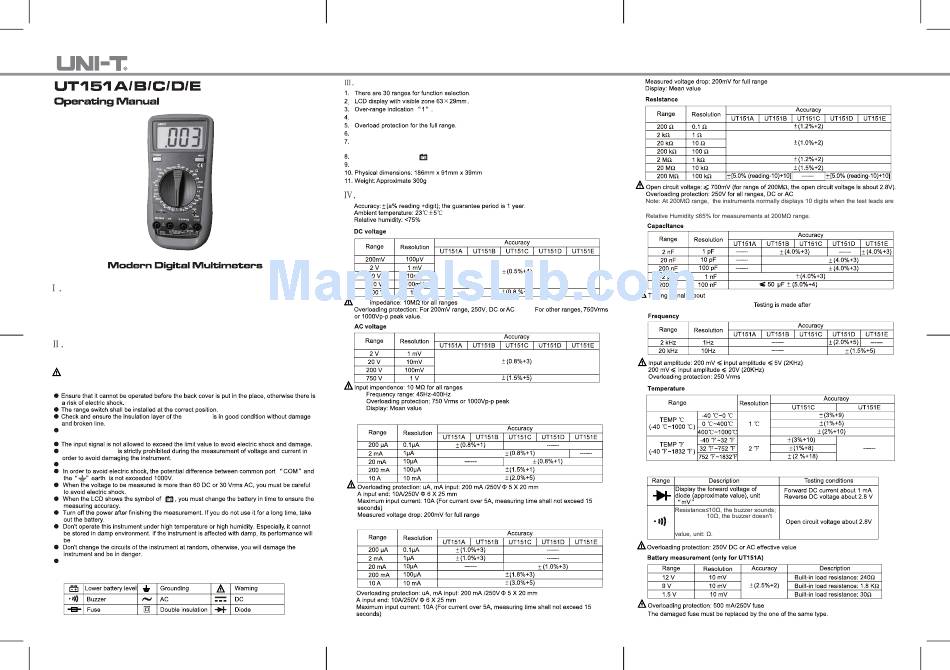

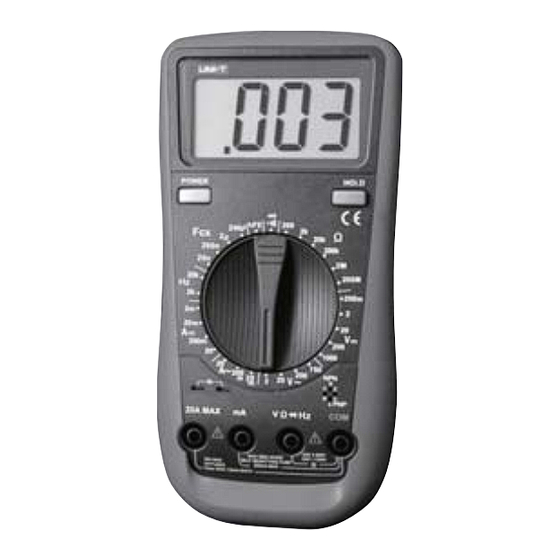

UNI-T UT151D Operating Manual

OVERVIEW
Brand-new UT151 series are 2000-count handheld digital multimeters featuring remarkably
stable and reliable operations. They are designed with the large-scale integrated circuits and
dual integral A/D converter and also offer overload protection for all ranges. The series can
measure DC&AC voltage, DC&AC current, resistance, capacitance, diode, transistor,
temperature, frequency, battery and continuity, which make it a perfect solution for your work.
SAFETY INFORMATION
This instrument is designed and manufactured in compliance with: GB4793, IEC61010-1,
IEC1010-2-032, CAT.I 1000V,CATII 600V, Pollution Degree 2 and Double Insulation standards.
Warning
Please operate the instrument as specified in the manual, otherwise the protection offered
by the instrument would be compromised.
test leads
The red and black test leads should be inserted in the proper terminals and ensured with
good contact.
Switching the range
Use only the replacement fuse with the same model or identical electrical specifications.
compromised.
Clean the instrument casing with slightly damp cloth and mild agent. No abrasives and
solvents are allowed.
International Electrical Symbols
PRODUCT FEATURES
Display Count: 1999.
Auto Power Off.
Temperature Range: Working:0℃~ 40℃(32℉ ~ 104℉);
Storage: -10℃~ 50℃(14℉ ~ 122℉).
Low Battery Indication: on upper left corner of LCD.
Data Hold
(Main unit+holster+tilt stand+battery, excluding test leads)
TECHNICAL SPECIFICATIONS
Input
RMS.
(RMS value of sinewave)
DC current
AC current
(RMS value of sinewave)
RMS.
shorted. Please subtract 10 digits from the subsequent measurement readings.
＞50μF, for reference only.
400Hz, 40mVrms
UT151A:＞100μF, for reference only. discharging the capacitor.
Continuity and Diodes
＞
necessarily sound;
Display approximate resistance
