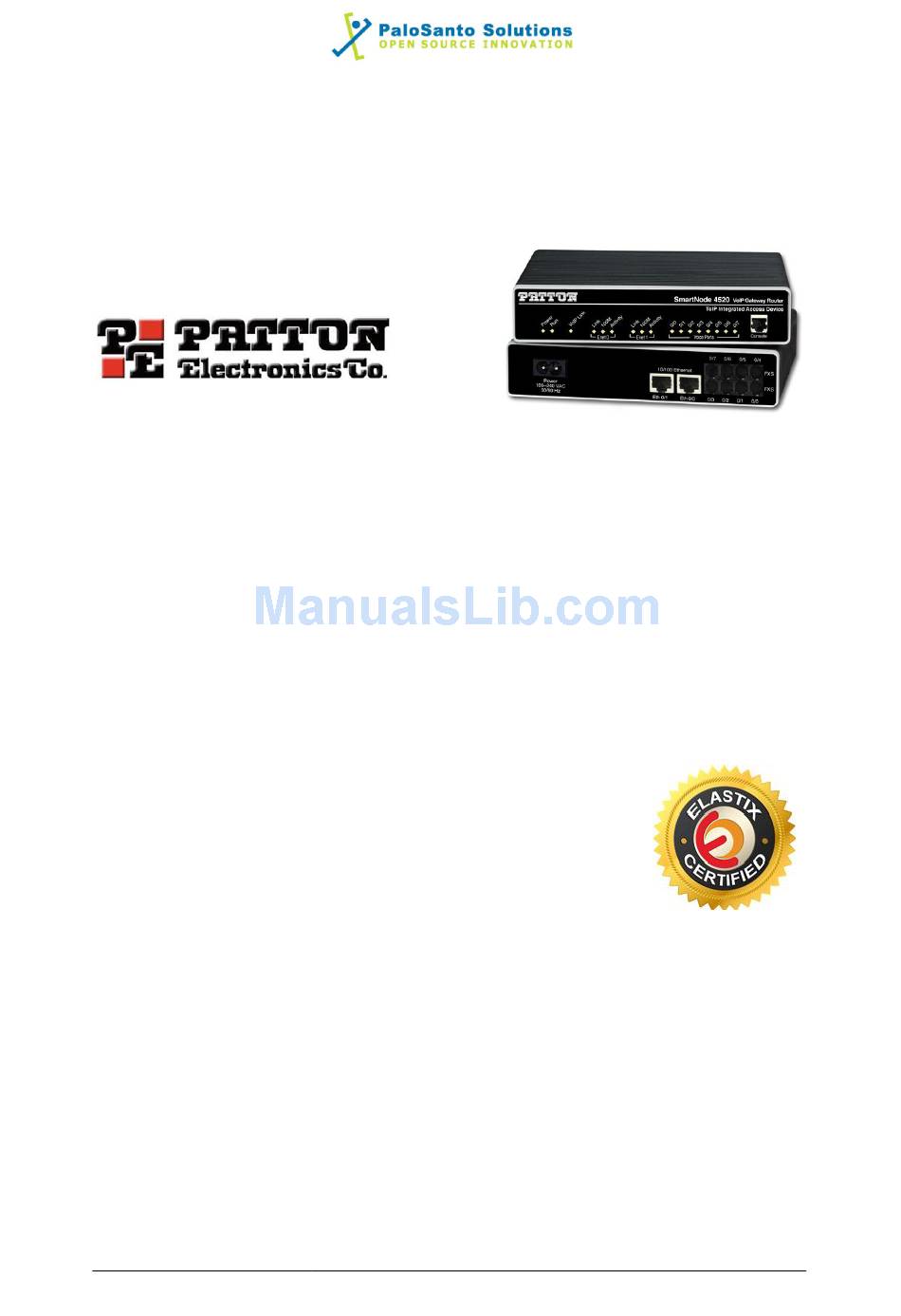

- Page 1 Patton SN4524 and Elastix Server Patton SN4524 and Elastix Server Patton SN4524 and Elastix Server Setup Guide Setup Guide Setup Guide http://www.elastix.org http://www.elastix.org http://www.elastix.org...
-
Page 2: Setup Diagram
Figure 1-1 Figure 1-1 is a setup diagram for a single Patton SN4524 gateway configuration. We’re is a setup diagram for a single Patton SN4524 gateway configuration. We’re is a setup diagram for a single Patton SN4524 gateway configuration. We’re... -
Page 3: Setup Procedure
4.0 Setup Procedure Patton SN4524 Server Setup Guide To set up the Elastix Server for the Patton SN4524 1. Go to the web address of the Elastix Server Login page. The web address is determined by the customer, for this guide we have used the IP address 192.168.5.111 2. - Page 4 PaloSanto Solutions Patton SN4524 Server Setup Guide Figure 4-3. Add a SIP Trunk 6. On the “Add SIP Trunk” page (Figure 4-4), fill in the following information: General Settings • Trunk Name: (PattonSN4524Trunk in this example) Outgoing Settings Trunk Name: (Patton4524 in this example) ...
- Page 5 PaloSanto Solutions PaloSanto Solutions PaloSanto Solutions Patton SN4524 Server Setup Guide Patton SN4524 Server Setup Guide Patton SN4524 Server Setup Guide Figure 4-4. Add SIP Trunk Figure 4-4. Add SIP Trunk Figure 4-4. Add SIP Trunk 7. Click on the ‘Submit’ button at the end of the page. The SIP Trunk will be created 7.
- Page 6 Patton SN4524 Server Setup Guide Patton SN4524 Server Setup Guide 9. With this you have finished creating a SIP Trunk that will be used by the Patton 9. With this you have finished creating a SIP Trunk that will be used by the Patton 9.
- Page 7 PaloSanto Solutions PaloSanto Solutions PaloSanto Solutions Patton SN4524 Server Setup Guide Patton SN4524 Server Setup Guide Patton SN4524 Server Setup Guide Figure 4-7. Add SIP Extension Figure 4-7. Add SIP Extension Figure 4-7. Add SIP Extension 11. Fill in the following information on the Add SIP Extension page: 11.
- Page 8 PaloSanto Solutions Patton SN4524 Server Setup Guide 12. Click on “Submit” at the end of the page and Apply changes. To register the Patton SN4524 with Elastix, you will need to enter the information from the trunk created on the Elastix Server into the Patton SN4524 by logging into the WebUI.
- Page 9 PaloSanto Solutions Patton SN4524 Server Setup Guide Authentication Users User Name: (“Patton4524” in this example) Password: (“jx8FkOU13sv6” in this example) Figure 4-11. Authentication Service Configuration 15. Now go to “Telephony => SIP => Location Services”. Write a name for your location service and click on “Add location service”...
- Page 10 PaloSanto Solutions Patton SN4524 Server Setup Guide Figure 4-13. Location Service Configuration 17. Click on the name of the just created identity to access to its properties, and add the following information (Figure 4-14): Authentication Outbound Authentication Services: Previously...
- Page 11 (“My_Location” in this example) Figure 4-16 20. To check if the Patton SN4524 is successfully registered, go to “Status” tab on the same page of the previous step. You should see “Registered” on the State field of SIP Registration (Figure 4-15).
- Page 12 PaloSanto Solutions Patton SN4524 Server Setup Guide Figure 4-17 21. Once it’s registered, we’ll add the interfaces to get it ready for calls. Go to “Telephony => Call-Router”. Go to “Interfaces => FXS” tab and write a name for an FXS interface (“FXS_00”...
- Page 13 PaloSanto Solutions Patton SN4524 Server Setup Guide Binding: Checked (Select the created FXS Interface. “FXS_00” in this example) Figure 4-20. fxs 0/0 Configuration 24. Apply changes when finish. Now we’ll create SIP interfaces for inbound calls and outbound calls. Go to “Telephony => Call-Router”. Next select “SIP” located on “Interface”...
- Page 14 PaloSanto Solutions Patton SN4524 Server Setup Guide Figure 4-23. SIP Interfaces 27. Click on the created interface to access to configuration page (Figure 4-24). Set the following: SIP Gateway: Checked (Select the name of the gateway created on step 19) ...
- Page 15 33. Configure the other IP (SIP) Phone with the correct parameters. 34. To test the Patton SN4524, pick up the previously configured IP (SIP) Phone and call the Analog Phone number by dialing 5001 with “8” as prefix. It should be 85001.
