Page 2: Package Contents

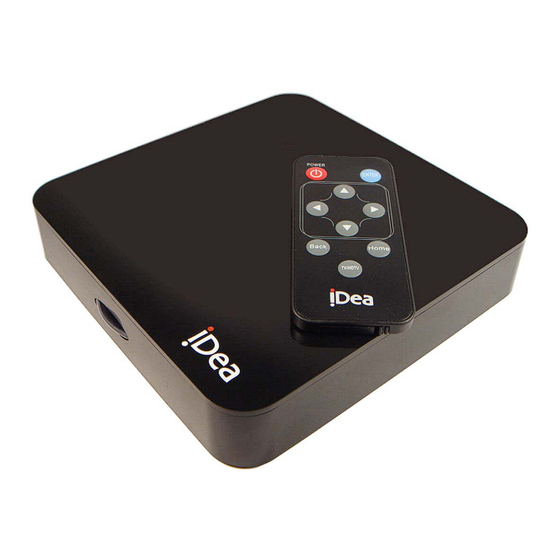

DPF It’s the (Digital Photo Frame) that use the TV screen. ● Package Contents: (a) iDea TV-Mate (x1) (b) 3.5mm video/audio output cable (x1) (c) Remote control unit w/battery (x1) (d) Universal 100-240V A/C power adapter (x1) Note: Media card and Y/Pb/Pr cable are not included. -
Page 3: Part Identification
SD/SDHC/MMC/MS card slot Getting Started: (1) Plug the A/C power adapter into the DC-IN socket of the TV-Mate, and then connect the A/C power adapter to the wall power socket. (2) Pull out the battery isolation sheet in the battery compartment of the remote control unit. - Page 4 Turn ON the TV Mate (Press the remote control ‘‘Power” button). The IR indicator light turns Green when the TV-Mate Power is on. The Start up menu screen should come on after a few seconds as shown in Fig. 1. Use Left / Right keys to select the desired icon.
- Page 5 (Setup the TV resolution) 1. For TV, the TV-Mate default frequency is 480i output (or 576i (PAL) in Europe). 2. If a HDTV is used, use the “Home” key to get to the opening screen as Fig.1, remove all the USB disk and Memory card, then press “TV / HDTV”...
- Page 6 www.friendtech.com On Screen Help Bar The On Screen Help Bar will show up for 5 seconds each time when entering display mode. Use “Left/Right” keys to choose a function and press “Enter” button to activate it. Information Key...
- Page 7 www.friendtech.com (1) Photo When “Photo” icon is highlighted (see Fig. 2), press “Enter” button, and a preview screen will show ● up as in Fig. 7 Fig. 8 Fig. 7 Keep pressing “ “ (single photo screen) or “ ” (thumbnail screen) key to enter the “Help Bar”, the ●...
- Page 8 www.friendtech.com Fig. 9 Fig. 10 While pressing the keys on the remote control unit enables the following functions: : Previous picture : Next Picture : Activate “Help Bar” : Rotate 90 degree (2) Music When “Music” icon is highlighted (Fig.22), press “Enter” button, and a song list will be shown as in ●...
- Page 9 www.friendtech.com (3) Video When “Video” icon is highlighted (see Fig. 13), press “Enter” button, and a preview screen will show ● up as in Fig. 14 Fig. 14 Fig. 13 Keep pressing “ “ (or “ ”) key to enter the “Help Bar”, the function is shown as below: ●...
-
Page 10: Photo Setup
www.friendtech.com (4) Setup When “Setup” icon is highlighted (see Fig. 17), press “Enter” button, and a setup menu will be ● shown as in Fig. 18. Use “Up/Down” keys to select the desired item. Fig. 18 Fig. 17 A. Photo Setup When “Photo Setup”... - Page 11 Fig. 20. Use the “Up/Down” keys to select the device which you want to play and then press “Enter” button to activate it. The “USB” mark means the TV-Mate accepts them as the USB devices. ●...
- Page 12 www.friendtech.com (6) File When “File” icon is highlighted (see Fig. 21), press “Enter” button, a file list shown as in Fig. 22. ● Fig. 21 Fig. 22 Copy (Save the SD card photos to USB Disk) and Delete Files: A. To Copy Files: Step 1.
- Page 13 www.friendtech.com Step 3. Select “Source device” -- where you want to copy files from Enter ”Device” screen, and select SD/SDHC memory card as the Source device. (see Fig. 27) Fig. 27 Step 4. Select file from the Source and “Copy to” the targeted device (1) Select File (see Fig.
- Page 14 www.friendtech.com B. To Delete Files: (1) Locate and Highlight the file that you want to delete. (see Fig. 32) (2) Enter the Help Bar, and press (see Fig. 33) Fig. 33 Fig. 32 (3) The query window will be popped up, press ”Yes” to confirm the file deletion, or press “No” to abort.
-
Page 15: Remote Control Unit
Set the TV-Mate output frequency to TV (480i / 576i) or HDTV (720p). Note: only HDTV (1366*768 or 1920*1020) supports the 720p mode. HOME HOME Page Back to Previous Page BACK Note: the Remote Control Unit and the TV-Mate as shown above. -14-... -
Page 16: Troubleshooting
Some of the files saved on my media is not displaying in the folder list page: ● Only supported JPEG files will be displayed in the Folder List page, and your TV-Mate will hide all other type of files which are saved on the inserted media. - Page 17 www.friendtech.com Output ports includes: Component Video (Y/Pb/Pr), S and Composite Video, audio, and USB 2.0 ● Host ports. (480Mb/s high speed, Type-B with converter) It also supports the iPod as the external USB Hard Disk, for the Music + HD Picture slideshow. ●...
