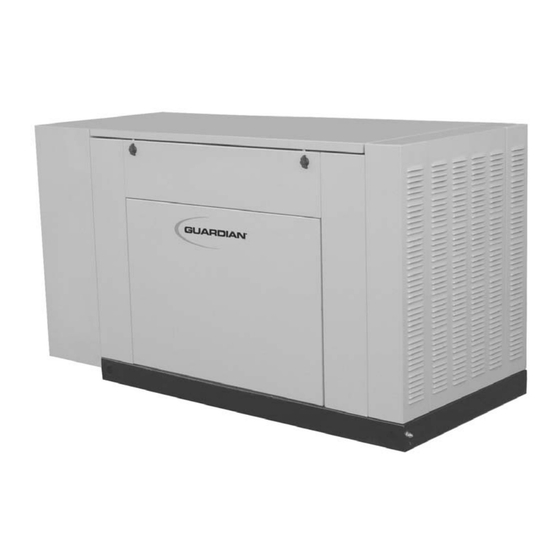

- Page 1 Owner’s Manual Liquid-cooled, Prepackaged Standby Generators Model Number: 004988-4 27kW NG, 30kW LP Vapor This manual should remain with the unit. ONLY QUALIFIED ELECTRICIANS OR CONTRACTORS SHOULD ATTEMPT INSTALLATION!!
- Page 2 INTRODUCTION The operator is responsible for proper and safe use of the equipment. The manufacturer strongly recom- Thank you for purchasing this model of the standby mends that the operator read this Owner's Manual generator set. and thoroughly understand all instructions before Every effort was expended to make sure that the using this equipment.
- Page 3 Table of Contents Liquid-cooled 30 kW Generators INTRODUCTION ..........IFC Section 3 — OPERATION ........ 12 Using a Standard “GTS” Transfer Switch ...12 SAFETY RULES ............2 Control Console Components ......13 Section 1 — GENERAL INFORMATION ..... 4 Manual Transfer and Startup ......14 Generator ..............4 Engine Governor Adjustments ......14 Transfer Switch .............4...
- Page 4 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Mounting Base — Drawing No. 0E6266-F...
- Page 5 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Mounting Base — Drawing No. 0E6266-F ITEM PART NO. QTY. DESCRIPTION 0E5822 BASEFRAME, WELDMENT 3.0L FORD 052860 NUT FLANGED HEX M12-1.75 052251 DAMPENER VIBRATION 40 BLUE 052257 SPACER .49 X .62 X 1.87 PWDR/ZNC 052252 DAMPENER VIBRATION 052259...
- Page 6 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Enclosure — Drawing No. 0F1142-B...
- Page 7 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Enclosure — Drawing No. 0F1142-B ITEM PART NO. QTY. DESCRIPTION 0E8411 INTAKE DUCT HSB 0E8042 DUCT DISCHARGE RH FRONT 0E8041 DUCT DISCHARGE LH FRONT 0C2454 SCREW TH-FRM M6-1 X 16 N WA Z/JS 0E8402 BAFFLE REAR BOTTOM 0E7808...
- Page 8 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Control Panel — Drawing No. 0E7118-K...
- Page 9 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Control Panel — Drawing No. 0E7118-K ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 0E7195 CONTROL BOX HSB 0C1127 DECAL AVR COVER 0E7196 COVER FRONT PANEL HSB 0A1441B COVER PLATE, AVR 0E7197...
- Page 10 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Engine — Drawing No. 0F6836-B...
- Page 11 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Engine — Drawing No. 0F6836-B ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 0E6201 ENGINE 3.0L FORD (FD) (MAKE) 049808 WASHER FLAT M12 0E8824 STAMPING ENG FOOT 3.0L FORD 051430 WASHER SHAKEPROOF INT 1/2 0E8963...
- Page 12 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Radiator — Drawing No. 0F6848-B...
- Page 13 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Radiator — Drawing No. 0F6848-B ITEM PART NO. QTY. DESCRIPTION 0E9947 RADIATOR R-IN,L-OUT 658X489X49 0E6340 VENTURI 3.0L FORD HSB 0E8531 SIDE SUPPORT RADIATOR HSB 0E6398 TUBE LOWER RAD 3.0L FORD HSB 0F6630 HOSE RADIATOR UPPER 080713...
- Page 14 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Fuel System — Drawing No. 0F6849-A...
- Page 15 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Fuel System — Drawing No. 0F6849-A ITEM PART NO. QTY. DESCRIPTION --------- WELDMENT MOUNTING BASE 075580 FLANGE FUEL INLET 0E7691 ASSY REGULATOR 3.0L NG OR LPV 039253 SCREW HHC M8-1.25 X 20 G8.8 022145 WASHER FLAT 5/16 ZINC 022129...
- Page 16 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Alternator — Drawing No. 0F5092-B...
- Page 17 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Alternator — Drawing No. 0F5092-B ITEM PART NO. QTY. DESCRIPTION 0F1659A ROTOR 390 15KW 1P DIRECT HSB (2.5L FORD) 0F1657A ROTOR 390 20KW 1P DIRECT HSB (2.5L FORD) 0F1655A ROTOR 390 25KW 1P DIRECT HSB (2.5L FORD) 0F5073A ROTOR 390__30AD1 HSB TECUM...
- Page 18 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Exhaust — Drawing No. 0F0968-B MANIFOLD COMPARTMENT MANIFOLD ITEM PART NO. QTY. DESCRIPTION ITEM PART NO. QTY. DESCRIPTION 0F0738 MUFFLER 7"X9"-(2)2"IN/2.5"OUT 0E8816 EXHAUST FLANGE 2" PIPE 0F6258 PIPE MUFFLER OUT 085917 WASHER LOCK 3/8 SS 044149...
- Page 19 Section 9 - Exploded Views and Parts Liquid-cooled 30 kW Generators Air Cleaner — Drawing No. 0F6850-A ITEM PART NO. QTY. DESCRIPTION 0E5193 PLATE AIR CLEANER ADAPTER 0E0519A ADAPTER CARBURETOR W/PVC CONN 049226 WASHER LOCK M5 049815 SCREW HHC M5-0.8 X 16 G8.8 0C8127 ELEMENT AIR CLEANER 022127...
