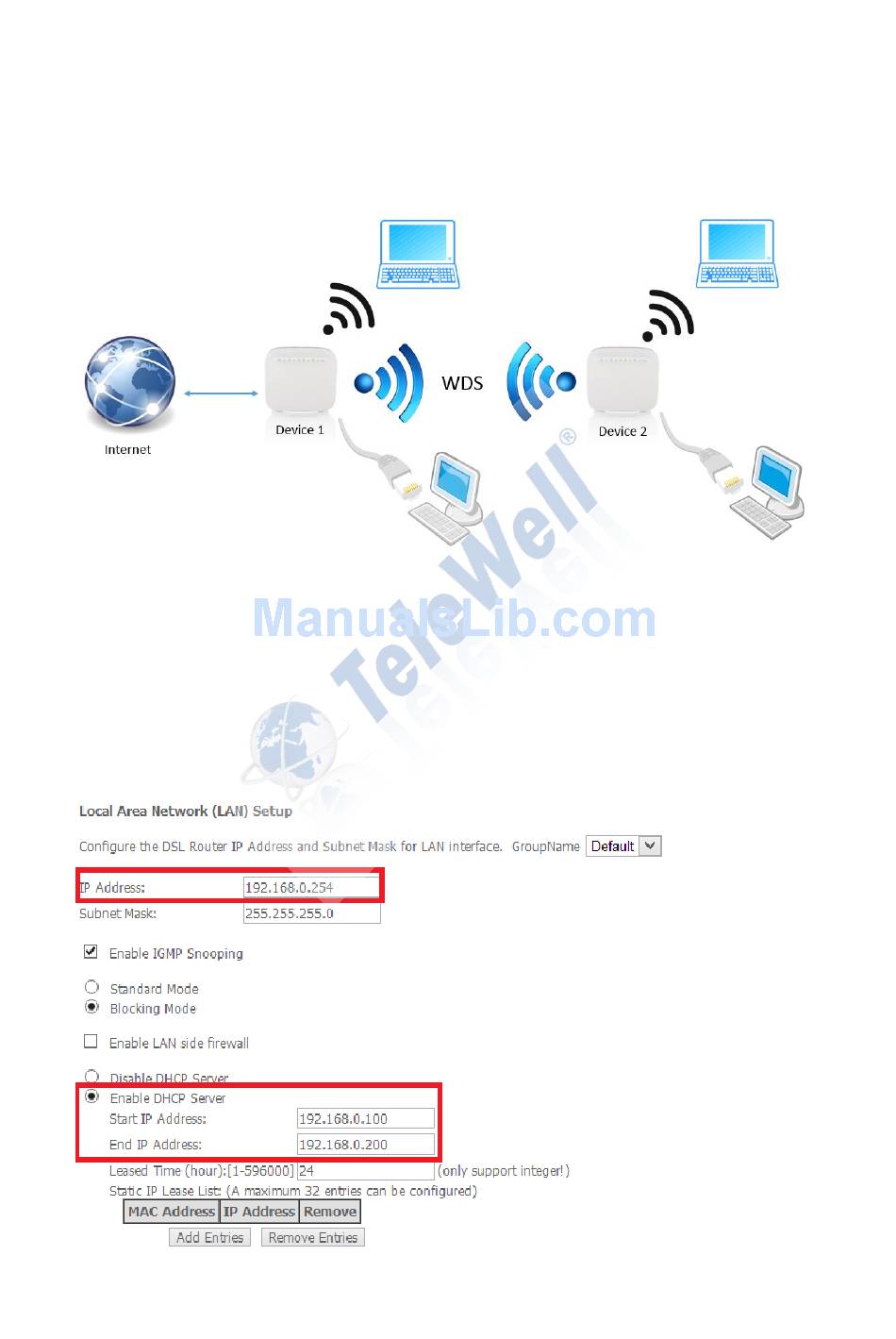

Page 1 TW-EAV510 Wireless Bridge (WDS) Configuration Guide Step: 1. Device 1 and Device 2’s LAN IP address must be different and can be in the same subnet. Device 1 with DHCP Server enabled Advanced Setup -> LAN -> LAN Setting...
Page 2 Device 2 with DHCP Server disabled Advanced Setup -> LAN -> LAN Setting The DHCP server should only be enabled on one of device in order to prevent any conflict. 2. The SSID name for Device 1 and Device 2 can be different. Device 1: Wireless ->...
Page 3 Device 1: Wireless -> Security Device 2: Wireless -> Security Note: The throughput between Device 1 and Device 2 can only up to 54Mbps due to WEP standard limitation. 4. The wireless channel for Wireless Bridge (WDS) must be fixed and use the same channel on both Device 1 and Device 2 to make connection stable.
Page 4 5. Enable the Wireless Bridge and setup the remote bridges MAC address. Device 1: Wireless -> Wireless Bridge Device 2: Wireless -> Wireless Bridge Note: If you also need share wireless to clients, the AP Mode must set to Access Point.
Page 5 Device 1 and Device 2: Wireless -> Basic Note: 1. It is better that SSID for Virtual Access Point is different on both Device 1 and Device 2. 2. Please go to Wireless -> Security to enable the security if the security is needed.
