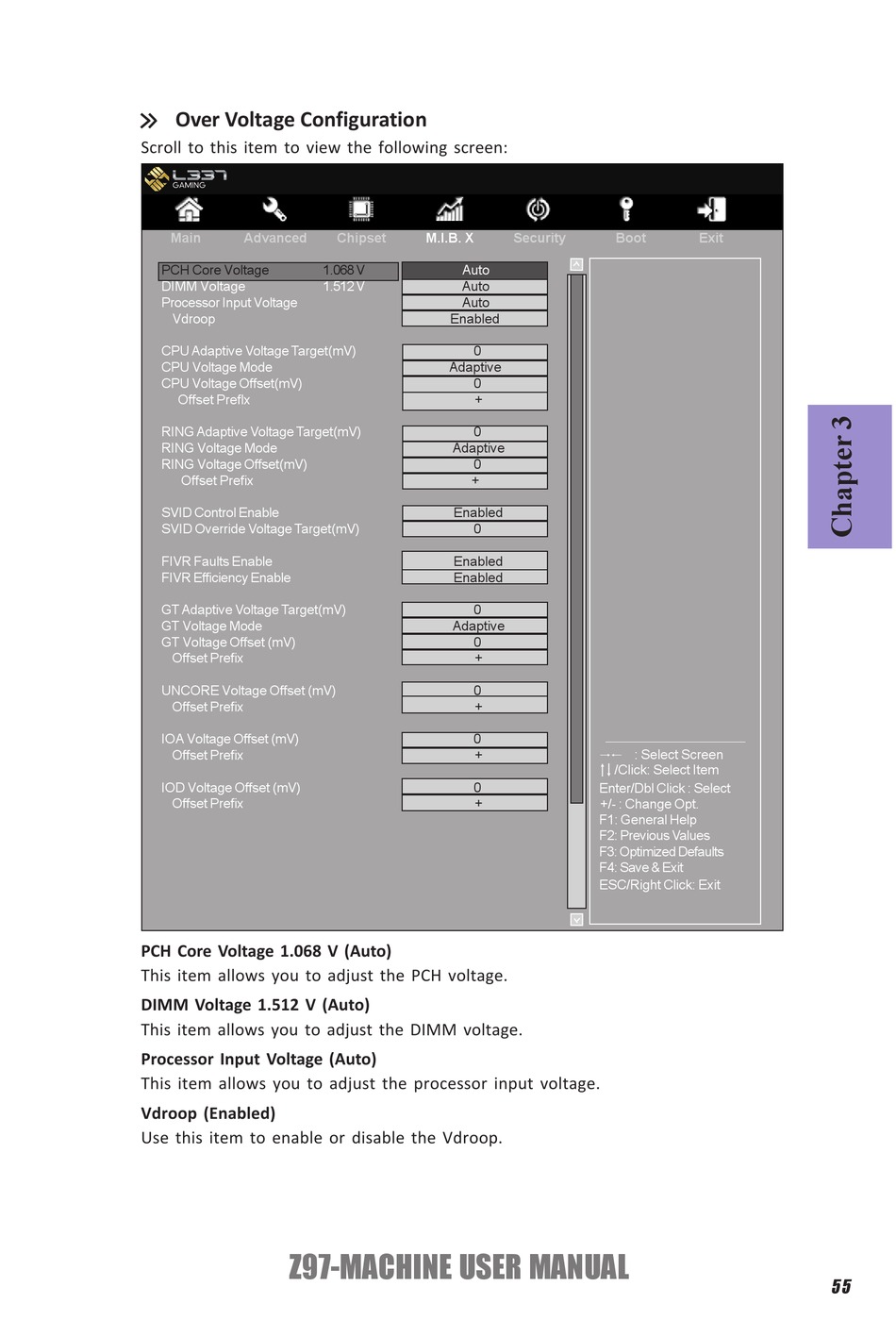

 Over Voltage Configuration
Scroll to this item to view the following screen:
Main Advanced
PCH Core Voltage
DIMM Voltage
Processor Input Voltage
Vdroop
CPU Adaptive Voltage Target(mV)
CPU Voltage Mode
CPU Voltage Offset(mV)
Offset Preflx
RING Adaptive Voltage Target(mV)
RING Voltage Mode
RING Voltage Offset(mV)
Offset Prefix
SVID Control Enable
SVID Override Voltage Target(mV)
FIVR Faults Enable
FIVR Efficiency Enable
GT Adaptive Voltage Target(mV)
GT Voltage Mode
GT Voltage Offset (mV)
Offset Prefix
UNCORE Voltage Offset (mV)
Offset Prefix
IOA Voltage Offset (mV)
Offset Prefix
IOD Voltage Offset (mV)
Offset Prefix
PCH Core Voltage 1.068 V (Auto)
This item allows you to adjust the PCH voltage.
DIMM Voltage 1.512 V (Auto)
This item allows you to adjust the DIMM voltage.
Processor Input Voltage (Auto)
This item allows you to adjust the processor input voltage.
Vdroop (Enabled)
Use this item to enable or disable the Vdroop.
