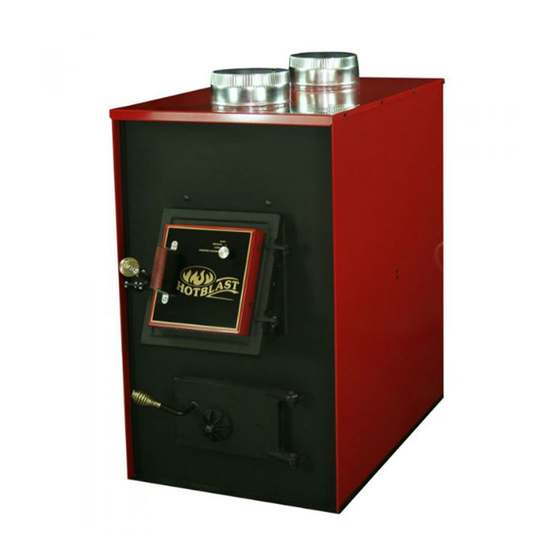

Solid fuel warm air furnace
Hide thumbs Also See for 1300:

Advertisement

Models 1300/1400/1500
WARM AIR FURNACE
FOR PARALLEL INSTALLATION WITH EXISTING FORCED AIR-GAS OR OIL FIRED FUR-
THE 1500 HOTBLAST FURNACE HAS BEEN APPROVED FOR
MODELS 1300/1400 ARE ALSO CERTIFIED UNDER CAN/CSA-B366.1-M91
Certified to comply with 2015 particulate emissions standards.
CAUTION:
READ ALL INSTRUCTIONS CARE-
FULLY BEFORE STARTING THE
INSTALLATION OR OPERATING
THE FURNACE
OWNER'S MANUAL
SOLID FUEL
NACE (U.S. ONLY)
FOR INSTALLATION AS A CENTRAL FURNACE
U.S. INSTALLATIONS ONLY.
ALL MODELS CERTIFIED UNDER UL 391
MODEL 1400 IS WOOD ONLY
U.S. Environmental Protection Agency
UNITED STATES STOVE COMPANY
227 Industrial Park Road
P.O.Box 151
South Pittsburg, TN 37380
800-750-2723
www.USSTOVE.com
IMPROPER INSTALLATION MAY
VOID YOUR WARRANTY
DO NOT USE THIS FURNACE
IN A MOBILE HOME OR TRAILER
851486 K-1905E
