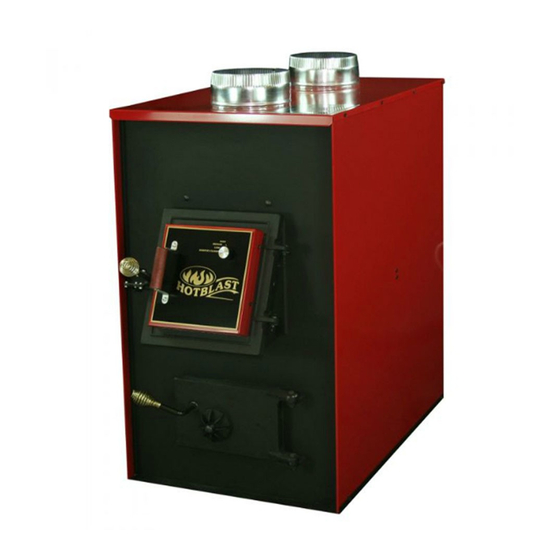

Solid fuel warm air furnace coal only
Hide thumbs Also See for 1300:
Table of Contents

Advertisement

Quick Links

Models 1300/1500
OWNER'S MANUAL
SOLID FUEL
WARM AIR FURNACE
COAL ONLY
FOR PARALLEL INSTALLATION WITH EXISTING FORCED AIR-GAS OR OIL FIRED FURNACE
(U.S. ONLY)
FOR INSTALLATION AS A CENTRAL FURNACE
THE 1500 HOTBLAST FURNACE HAS BEEN APPROVED FOR
U.S. INSTALLATIONS ONLY.
ALL MODELS CERTIFIED UNDER UL 391
THE 1300 MODEL IS ALSO CERTIFIED UNDER CAN/CSA-B366.1-M91
U.S. Environmental Protection Agency
This heater is not certified for wood burning. Use of any
wood fuel is a violation of federal regulations.
CAUTION:
IMPROPER INSTALLATION MAY
VOID YOUR WARRANTY
READ ALL INSTRUCTIONS CARE-
FULLY BEFORE STARTING THE
INSTALLATION OR OPERATING
DO NOT USE THIS FURNACE
THE FURNACE
IN A MOBILE HOME OR TRAILER
UNITED STATES STOVE COMPANY
227 Industrial Park Road
P.O.Box 151
South Pittsburg, TN 37380
800-750-2723
www.usstove.com
851486N-1901G

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Hotblast 1300

Summary of Contents for Hotblast 1300

  • Page 1 THE 1500 HOTBLAST FURNACE HAS BEEN APPROVED FOR U.S. INSTALLATIONS ONLY. ALL MODELS CERTIFIED UNDER UL 391 THE 1300 MODEL IS ALSO CERTIFIED UNDER CAN/CSA-B366.1-M91 U.S. Environmental Protection Agency This heater is not certified for wood burning. Use of any wood fuel is a violation of federal regulations.

  • Page 2: Tools And Materials Needed

    CONGRATULATIONS! You've purchased one of America's Finest Coal Burning Furnaces. By heating with coal you're helping CONSERVE AMERICA'S ENERGY! NOTE: YOUR UNIT MUST BE INSTALLED BY A QUALIFIED FURNACE INSTALLER. TOOLS AND MATERIALS NEEDED TOOLS MATERIAL • Pencil • 6" Pipe, 6" Elbow, Collar and Thimble; •...
  • Page 3 Caution Labels Your Furnace has the following labels. Read and Obey all labels. DANGER: RISK OF FIRE OR EXPLOSION. DO NOT burn garbage, gasoline, drain oil, or other flammable liquids. WARNING: FIRE HAZARD. DO NOT operate with fire draft exceeding .06 inches w.c. DO NOT operate with fuel loading or ash removal doors open.
  • Page 4 Rules for safe installation and operation Read these rules and the instructions carefully. Failure to follow them will cause a hazard that could result in death, serious bodily injury, and/or property damage. 1. Check your local codes. The installation must comply in construction of the furnace and duct work has a light with their rulings.

  • Page 5: Series Installation

    It is recommended that for the who is engaged in, and is responsible for, or is thoroughly most efficient use of your HOTBLAST Furnace, that it be fired familiar with the installation and operation of the gas, oil, and...
  • Page 6 DIMENSIONS OF FURNACE Figure 1 Model 1300 Figure 2 Model 1500...

  • Page 7: Locating The Furnace

    If you have a solid brick or stone wall behind your furnace, you can place the furnace as close as you wish to the wall. If the wall is only faced with brick or stone, treat it as a combustible wall. 48" 1300 1500 Figure 4 12" 12"...
  • Page 8 Chimney Connection MASONRY CHIMNEY Before using an existing masonry chimney, clean the chimney and inspect the flue liner to be sure it is safe to use. Make repairs THIMBLE before attaching the furnace. The connector pipe and fittings you 6" ELBOW will need to connect directly to a masonry chimney are shown.
  • Page 9 Rules for Connector Pipe Installation 1. The crimped end of the chimney connector fits inside the furnace flue collar. Install additional chimney connectors and elbow with the CRIMPED END TOWARD THE FURNACE. This will allow any NOTE: condensation in the flue to run back into the furnace. Use 6" dia. A flue pipe shall not pass through an attic, roof steel pipe and elbows for connection to chimney.
  • Page 10 CONNECTION OF CHIMNEY CONNECTOR TO A MASONRY CHIMNEY THROUGH A COMBUSTIBLE WALL Figure 8 shows how to connect the chimney connector of a heater to a masonry chimney through a combustible wall. There are five allowable ways that a chimney connector can be connected to a masonry chimney by passing through a combustible wall. NFPA Standard 211 allows the following wall pass-through systems.
  • Page 11 FIGURE 12, PART A MINIMUM CHIMNEY CLEARANCE TO BRICK AND COMBUSTIBLES IS 2 IN. MINIMUM CLEARANCES 12 IN. OF BRICK ALL AROUND CHIMNEY CONNECTOR TO HEATER FIRE CLAY LINER MINIMUM 12 IN. (5/8" MIN. WALL THICKNESS) TO COMBUSTIBLES MASONRY CHIMNEY CONSTRUCTED TO MIN.
  • Page 12 MINIMUM CHIMNEY CLEARANCES FROM MASONRY TO FIGURE 12, PART D SHEET STEEL SUPPORTS AND COMBUSTIBLES 2 IN. SHEET STEEL SUPPORTS MINIMUM CLEARANCE 2 IN. ALL AROUND CHIMNEY SECTION 1 IN. AIR SPACE TO CHIMNEY THIMBLE CHIMNEY LENGTH CHIMNEY CHIMNEY CONNECTOR CONNECTOR TO HEATER SOLID INSULATED, LISTED...
  • Page 13 9. Check operation of shaker grates with grate handle before operating furnace. 4” ELECTRICAL JUNCTION BOX BLOWERS SET SCREW CLIP NUTS BLOWERS GASKET (Not used in the upper center hole.) Figure 15 Figure 13a (Model 1300 has only one blower) -13-...

  • Page 14: Wiring Diagram

    WIRING DIAGRAM Figure 16 NOTE: For model 1300, disregard the wiring (wires M1 & M2) of one blower motor. Wire leads from the distribution blower are usually BOTH BLACK. Makes no difference which leads from the motor(s) connects to the cor- responding leads coming out of the conduit.

  • Page 15: Installation

    INSTALLATION f) Connect electrical supply in the electrical junction box that is mounted on the back of the Furnace. See Wiring Please see all methods of Installation at the rear of this Diagram (Fig. 16). Remove the cover from electrical booklet.

  • Page 16: Over Firing

    EFFICIENCIES SERVICE HINTS Efficiencies can be based on either the lower heating value Do not expect a furnace to draw. It is the chimney that (LHV) or the higher heating value (HHV) of the fuel. The lower creates the draft. Smoke spillage into the house or heating value is when water leaves the combustion process excessive build-up of water or creosote in the chimney as a vapor.
  • Page 17 TROUBLE SHOOTING TIPS FOR WARM AIR FURNACE 1. Problem: 4. Problem: Smoke puffs from furnace Distribution blower vibrating Solution: Solution: A. Check chimney draft. Check for blocked chimney or A. Tighten blower wheel to motor shaft. flue pipe. Use mirror to check chimney clearance. B.
  • Page 18 -18-...
  • Page 19 Description Model Model Qty. Qty. Part No. Part No. Description Description Model Model Qty. Qty. 25541R 1300 1300 Cabinet Side (Left & Right) 89319 Gasket, Blower 25467R 1500 1500 88032 Flue Collar Gasket 1300 83340 1/4-20 Clipnut 40246 Flue Collar...
  • Page 20 Parts Diagram/List 69921R Thermostat Box Assembly (Color - Red) 69921G Thermostat Box Assembly (Color - Green) 68722 Thermostat Panel Weldment 68732 Thermostat Cover Weldment (Color - Red) 68732G Thermostat Cover Weldment (Color - Green) 23429 Thermostat Step Plate 23431 Friction Plate 81903 Thermostat 23427...

  • Page 21: Optional Equipment

    OPTIONAL EQUIPMENT 11DIKL Draft Inducer Kit w/ Limit Swich This optional kit allows your furnace to be thermostatically controlled and gives the option to change the on/off times of the distribution blower(s). UFB908 Universal Filter Box When installing ANY warm air furnace, proper installation is the key and required for getting the most efficiency and lon- gest life out of your unit.

  • Page 22: Stove Operation

    BULLETIN RC454 A GUIDE TO BURNING COAL IN YOUR FURNACE Furnaces that are capable of burning coal usually will burn As the gases burn off the flames become shorter, change both Bituminous and Anthracite coal. Anthracite is perhaps color and produce less smoke. the best coal fuel because of its long even burn time, high Once the fire is WELL ESTABLISHED add coal to the center heat output, and cleanliness which make it a good choice for...
  • Page 23 BULLETIN RC454 A GUIDE TO BURNING COAL IN YOUR FURNACE have to take place with each particular setting of all dampers BANKING THE FIRE and controls as the chimney provides the draft necessary to For extended operation, such as overnight, the fire will need not only exhaust the smoke, but to pull combustion air into to be banked.

  • Page 24: Add-On Installation

    CENTRAL INSTALLATION ADD-ON INSTALLATION -24-...
  • Page 25 Appendix INSTALLATION A TO EXISTING DUCT WORK COLD AIR WARM AIR RETURN EXISTING FURNACE INSTALLATION B SOLID FUEL FILTER BOX FURNACE TO EXISTING PLENUM DUCT WORK COLLECTOR WARM AIR COLD AIR RETURN EXISTING FURNACE SOLID FUEL FILTER BOX FURNACE INSTALLATION C TO EXISTING DUCT WORK COLD AIR...
  • Page 26 INSTALLATION D INSTALLATION E -26-...
  • Page 27 INSTALLATION F INSTALLATION G -27-...
  • Page 28 INSTALLATION H TOP VIEW FRONT VIEW -28-...
  • Page 29 Limited Warranty Warm Air Furnace The operation of this heater in a manner inconsistent with the owner’s manual will void the warranty and is also against federal regulations. United States Stove Company warrants to the original purchaser its heating products against premature failure of any component due to workmanship, quality, or materials as follows: TIME PERIOD: Firebox ............................

  • Page 30: Service Record

    SERVICE RECORD It is recommended that your heating system is serviced regularly and that the appropriate Service Interval Record is completed. Service Provider: Before completing the appropriate Service Record below, please ensure you have carried out the service as described in the manufacturer’s instructions.
  • Page 31 NOTES -31-...
  • Page 32 2. THE PART DESCRIPTION / LA DESCRIPTION DE LA PIÈCE _____________________ 3. THE MODEL NUMBER / LE NUMÉRO DE MODÈLE ____________________________ 4. THE SERIAL NUMBER / LE NUMÉRO DE SÉRIE ________________________________ 1300 1500 United States Stove Company 227 Industrial Park Road P.O.
