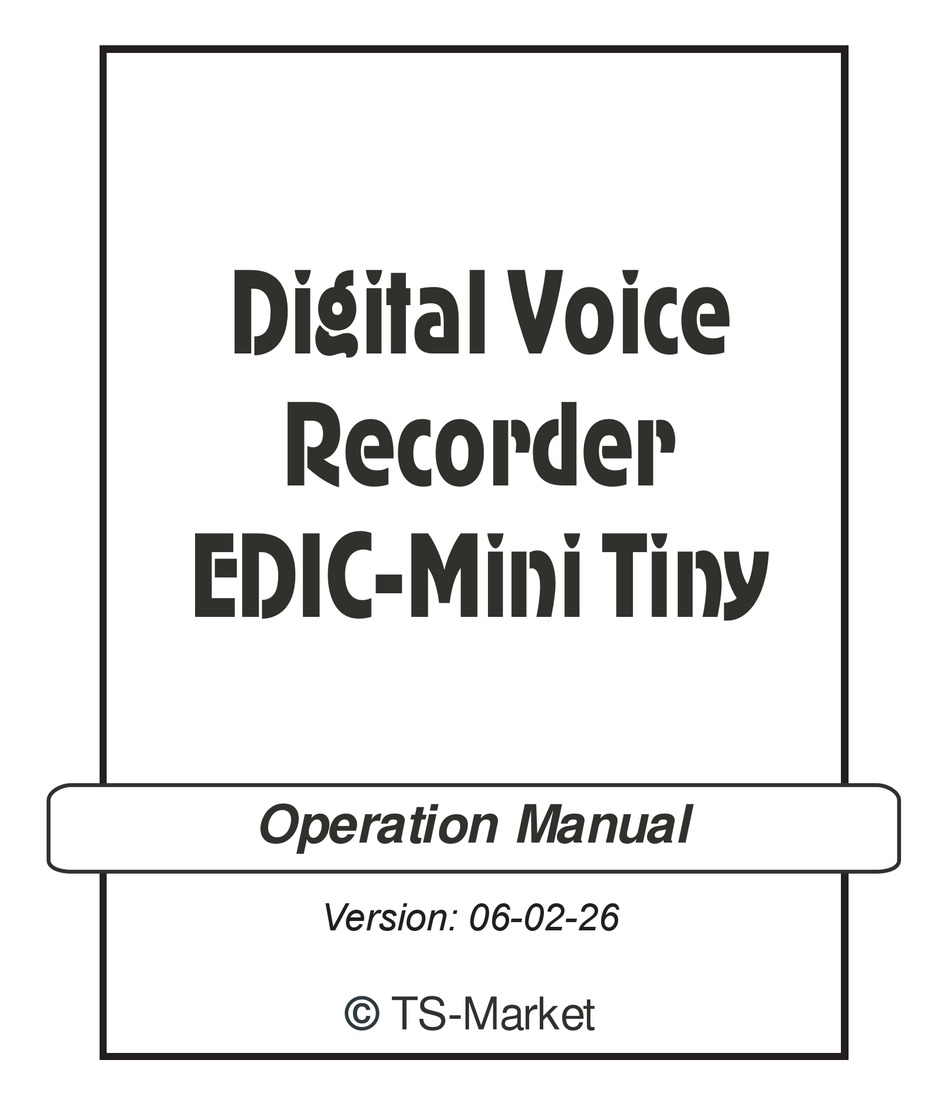

- Page 1 Digital Voice Recorder EDICMini Tiny Operation Manual Version: 06-02-26 © TS-Market...
-
Page 2: Table Of Contents
Contents ................3 Purpose .............. 5 Main Specifications Recording time depending on a model (sample rate 8 kHz, 2-bit ................5 ADPCM) ......6 Quality, Formats and Compression method ..............7 DVR.Operating ..............7 Record Tuning ............ 8 Record Settings by Default ............. -
Page 3: Purpose
Digital.Voice.Recorder EDIC-Mini.Tiny Purpose Miniature Edic-Mini Tiny digital voice recorder (DVR) is in- tended for professional recording voice messages into flash- memory. The DVR features an extremely small size and weight, long record time (varying with the model – from 18 to 300 hours... - Page 4 tively compresses pauses in messages, therefore increasing the actual record time. Using this system saves memory dur- ing pauses, but the time intervals remain. When download- ing records to PC, the pause length can be either restored (as silence) or passed depending on the settings made. The DVR working modes are indicated with the LED indica- tor.
-
Page 5: Main Specifications
5.5 Mb Recording. time. depending. on. a. model. (sample. rate. 8. kHz,.2-bit.ADPCM) Index Recording.time Built-in flash- memory.size 1120 1120 min. (18.6 hours) 128 MB 2240 2240 min. (37.3 hours) 256 MB 4480 4480 min. (74.6 hours) 512 MB 8960 8960 min. -
Page 6: Quality, Formats And Compression Method
2-bit ADPCM mode. For example, the record time will be 1120/5=224 minutes for model 1120 in the without-compres- sion mode, at sample rate of 8 kHz (k=5). Memory consumption in the Stereo mode increases twice as... -
Page 7: Dvr.operating
The sample rate defines the bandwidth, which is a little less than a half of the sample rate. The best record quality can be achieved in the without-com- pression mode, then in order of the record quality deterio- ration the modes are the following: logarithmic mode, 4-bit ADPCM, 2-bit ADPCM. -
Page 8: Record Settings By Default
Record.Settings.by.Default The sample rate is 16 kHz, without compression, VAS dis- abled. Recording.Messages Press and hold the control button for about 2 seconds to switch on the Recording mode. When the LED lights up, release the button, the DVR blinks in series to indicate the Recording mode. -
Page 9: Listening To Messages
tion from the battery. Listening.to.Messages To listen to the previously made messages they should be downloaded to PC using the RecManager program. Listen- ing to messages is possible with any audio player (e.g. Win- dows Media Player). Connection.to.PC To playback/save records, to make DVR settings and other operations, you should connect the DVR to PC as follows: - Switch on the PC. -
Page 10: Firmware Update
- Recording is not available with the DVR connected to the - For more detail on RecManager refer to the Software Oper- ation Manual and DVR settings in the supplied CD (Miniature DVRs folder in \Edic-Mini Tiny\flash-memory). Firmware.update - Download the updated firmware from the web site http:// www.ts-market.com (EdicTinyX_X.fwu file, X_X means the... -
Page 11: Multilingual.support
- Press Ctrl+Alt+Shift+P keys to enter the advanced setting mode. - Click the “Update the firmware” button. - Select the update file (EdicTinyX_X.fwu). - Confirm you want to update the firmware. The program will update the firmware and the appropriate message will ap- pear. - Page 12 XXX.lng, where XXX is a short language name (in latin let- ters). After restarting the program the user’s language will be avail- able in the Properties\Program Language window. To include this language support into the program installer, the user may e-mail the corrected file to support@ts-market.com.
-
Page 13: Technical.support
Technical.Support The technical support is always available through E-mail: support@ts-market.com; Phone: +7 (495) 530-10-01; We constantly work on improving the quality of our products. You may send us your suggestions and notes to support@ts-market.com. -
Page 14: Troubleshooting
Troubleshooting Possible. Problem Possible.cause remedy.for.the. trouble After installing 1. The battery 1. Replace the the battery into is discharged or battery. the DVR, the faulty. 2. Extract the LED didn’t blink 2. The DVR did battery and install 3 times. not start. - Page 15 Possible. Problem Possible.cause remedy.for.the. trouble The battery is Replace the bat- indicator completely dis- tery. does does not charged. blink. cord. Low battery Replace the bat- indicator charge level. tery. blinks in five-flash series. There is no free Clear the indicator memory for voice memory, delete...
